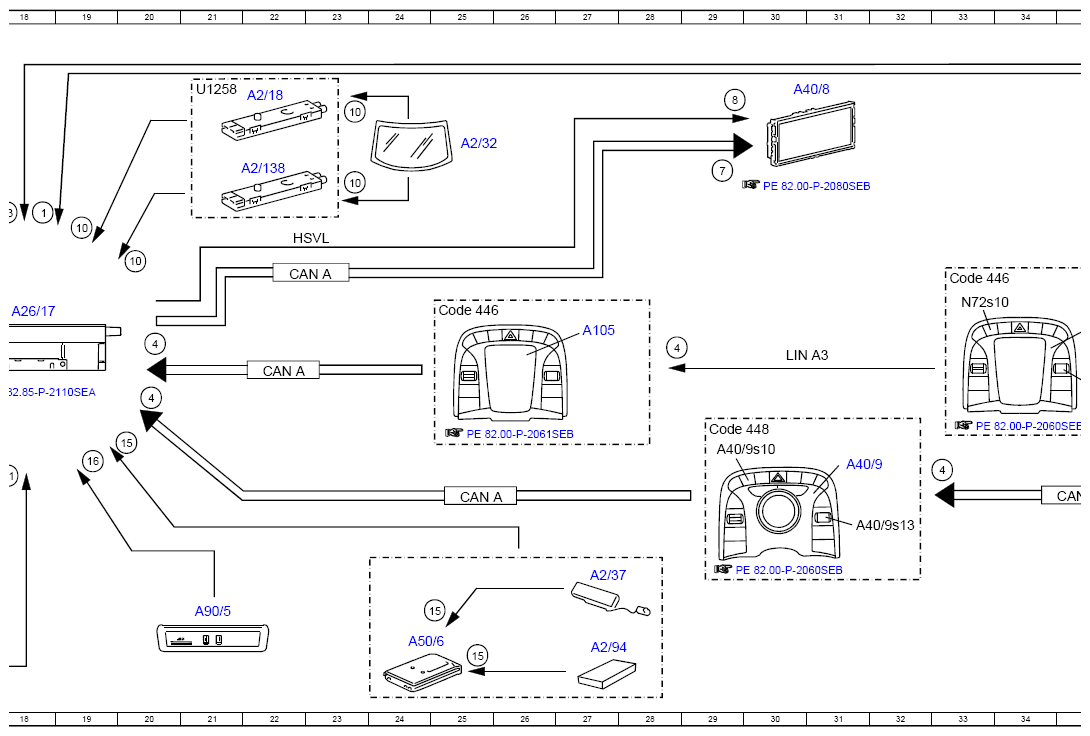

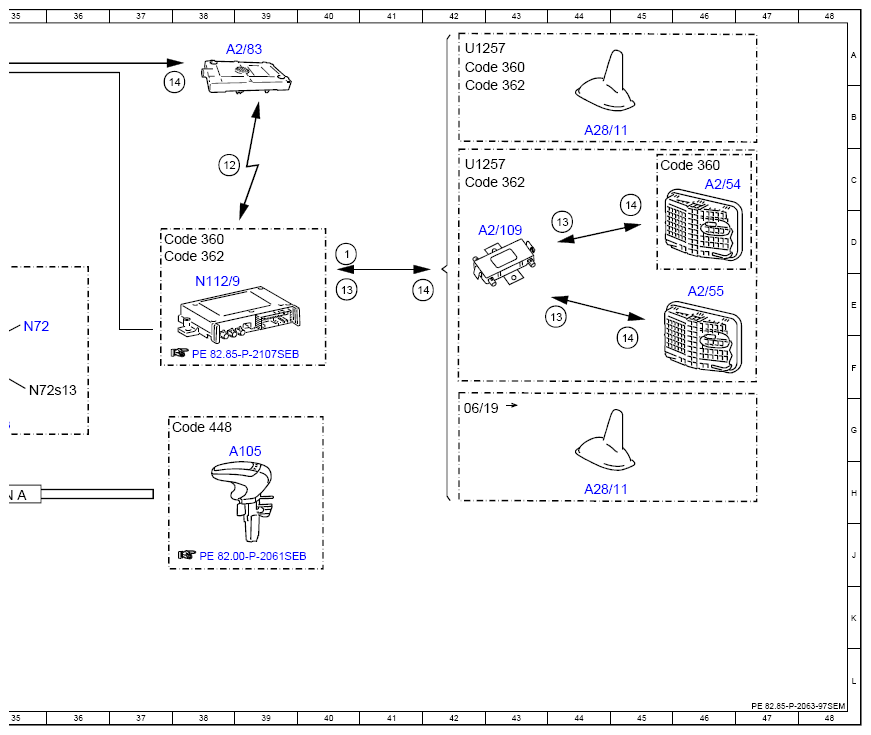

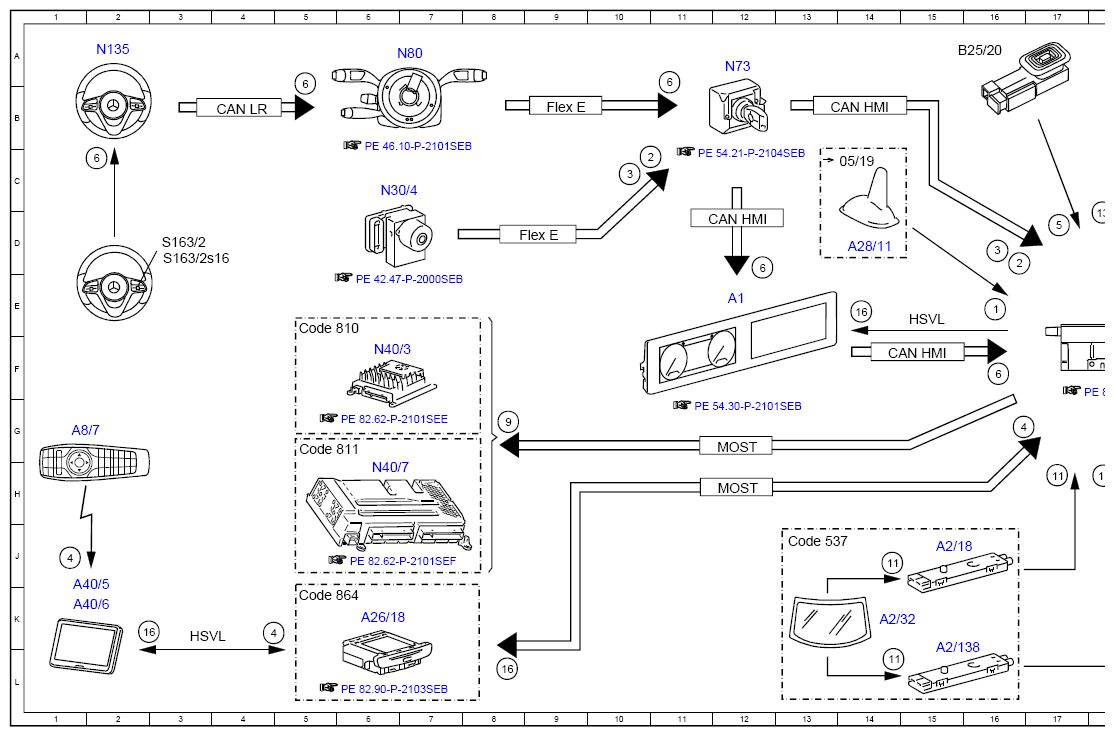

Electrical Function Diagram For Navigation Mode (COMAND), Function - PE82.85-P-2063-97SEM
Model 222 as of model year 2018
| Code: | Designation: | Position: |
|---|---|---|
| 1 | GPS, signal | 16E |
| 1 | GPS, signal | 40D |
| 1 | GPS, signal | 18D |
| 10 | FM antenna, signal | 20D |
| 10 | FM antenna, signal | 19D |
| 10 | FM antenna, signal | 23C |
| 10 | FM antenna, signal | 23B |
| 11 | DAB band III, signal | 14L |
| 11 | DAB band III, signal | 14J |
| 11 | DAB band III, signal | 18H |
| 11 | DAB band III, signal | 17H |
| 12 | Wireless Local Area Network (WLAN), communication | 38C |
| 13 | Traffic data, signal | 18D |
| 13 | Traffic data, signal | 44D |
| 13 | Traffic data, signal | 40E |
| 13 | Traffic data, signal | 44E |
| 14 | Position data, signal | 38A |
| 14 | Position data, signal | 41E |
| 14 | Position data, signal | 45C |
| 14 | Position data, signal | 45E |
| 15 | Vehicle Information and Communication System (VICS), signal | 20G |
| 15 | Vehicle Information and Communication System (VICS), signal | 25L |
| 15 | Vehicle Information and Communication System (VICS), signal | 25K |
| 16 | Map data, signal | 8L |
| 16 | Map data, signal | 14E |
| 16 | Map data, signal | 19G |
| 16 | Map data, signal | 2K |
| 2 | Wheel speed, signal | 10C |
| 2 | Wheel speed, signal | 16D |
| 3 | Wheel rotation direction, signal | 10C |
| 3 | Wheel rotation direction, signal | 16D |
| 4 | Operation, signal | 16G |
| 4 | Operation, signal | 20F |
| 4 | Operation, signal | 33H |
| 4 | Operation, signal | 20G |
| 4 | Operation, signal | 28F |
| 4 | Operation, signal | 4K |
| 4 | Operation, signal | 1J |
| 5 | Voice input, signal | 17D |
| 6 | Multifunction steering wheel button group, signal | 12D |
| 6 | Multifunction steering wheel button group, signal | 16F |
| 6 | Multifunction steering wheel button group, signal | 2C |
| 6 | Multifunction steering wheel button group, signal | 5B |
| 6 | Multifunction steering wheel button group, signal | 11B |
| 7 | Switch-on request, signal | 29C |
| 8 | Audio/COMAND display, actuation | 29B |
| 9 | Sound system amplifier, actuation | 8G |
| A1 | Instrument cluster | 12E |
| A105 | Touchpad | 39G |
| A105 | Touchpad | 27E |
| A2/109 | Telephone antenna splitter | 43D |
| A2/138 | FM2, DAB and TV2 antenna amplifier | 22C |
| A2/138 | FM2, DAB and TV2 antenna amplifier | 15L |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 22B |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 15J |
| A2/32 | Rear window antenna | 14K |
| A2/32 | Rear window antenna | 25B |
| A2/37 | Vehicle Information and Communication System (VICS) control unit | 27J |
| A2/54 | Left emergency call system antenna | 46C |
| A2/55 | Right emergency call system antenna | 46E |
| A2/83 | WLAN antenna | 39A |
| A2/94 | DSRC antenna | 27L |
| A26/17 | Head unit | 18E |
| A26/18 | Rear entertainment controller unit | 6K |
| A28/11 | Multifunction antenna | 14D |
| A28/11 | Multifunction antenna | 44B |
| A28/11 | Multifunction antenna | 44H |
| A40/5 | Left rear display | 1K |
| A40/6 | Right rear display | 1K |
| A40/8 | Audio/COMAND display | 30B |
| A40/9 | Audio/COMAND control panel | 31H |
| A40/9s10 | Navigation button | 29G |
| A40/9s13 | Volume control button | 32J |
| A50/6 | Dedicated Short-Range Communications control unit | 24K |
| A8/7 | Remote control | 1G |
| A90/5 | Multimedia connection unit | 21K |
| B25/20 | Driver hands-free system microphone | 16A |
| CAN A | Telematics CAN | 22F |
| CAN A | Telematics CAN | 22E |
| CAN A | Telematics CAN | 25H |
| CAN A | Telematics CAN | 35H |
| CAN HMI | User interface CAN | 15F |
| CAN HMI | User interface CAN | 12D |
| CAN HMI | User interface CAN | 14B |
| CAN LR | Steering wheel CAN | 4B |
| Code 360 | HERMES UMTS | 42A |
| Code 360 | HERMES UMTS | 45C |
| Code 360 | HERMES UMTS | 37D |
| Code 362 | HERMES LTE | 42C |
| Code 362 | HERMES LTE | 42B |
| Code 362 | HERMES LTE | 37D |
| Code 446 | Touchpad only | 33E |
| Code 446 | Touchpad only | 25E |
| Code 448 | Touchpad | 37G |
| Code 448 | Touchpad | 29G |
| Code 537 | Digital radio | 13J |
| Code 810 | Sound system | 5E |
| Code 811 | Advanced sound system | 5G |
| Code 864 | Rear compartment entertainment | 5K |
| Flex E | Chassis FlexRay | 9D |
| Flex E | Chassis FlexRay | 9B |
| HSVL | High-speed video link | 22D |
| HSVL | High-speed video link | 15E |
| HSVL | High-speed video link | 3K |
| LIN A3 | LCP LIN | 30F |
| MOST | Media Oriented System Transport | 12H |
| MOST | Media Oriented System Transport | 12G |
| N112/9 | HERMES control unit | 38E |
| N135 | Steering wheel electronics | 2A |
| N30/4 | Electronic Stability Program control unit | 6C |
| N40/3 | Sound system amplifier control unit | 6F |
| N40/7 | Advanced sound system amplifier control unit | 6H |
| N72 | Lower control panel | 35E |
| N72s10 | Navigation button | 33E |
| N72s13 | Volume control button | 35F |
| N73 | Electronic ignition switch control unit | 12A |
| N80 | Steering column module control unit | 7A |
| S163/2 | Head unit multifunction steering wheel button group | 3D |
| S163/2s16 | Volume adjustment switch | 3D |
| U1257 | Valid for code 367 (Live Traffic Information) and subscription for real-time traffic data | 42C |
| U1257 | Valid for code 367 (Live Traffic Information) and subscription for real-time traffic data | 42A |
| U1258 | Not valid for code 367 (Live Traffic Information) and subscription for real-time traffic data | 21B |
