Overview Of System Components For Driver Assistance Systems - GF54.00-P-9998LFM
Model 217, 222 as of Model year 2018

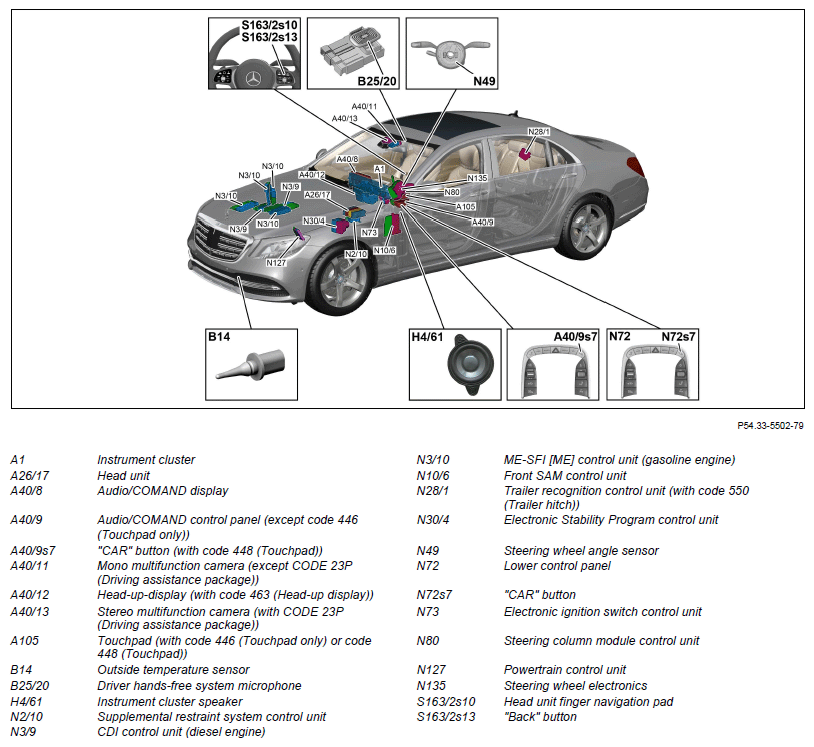

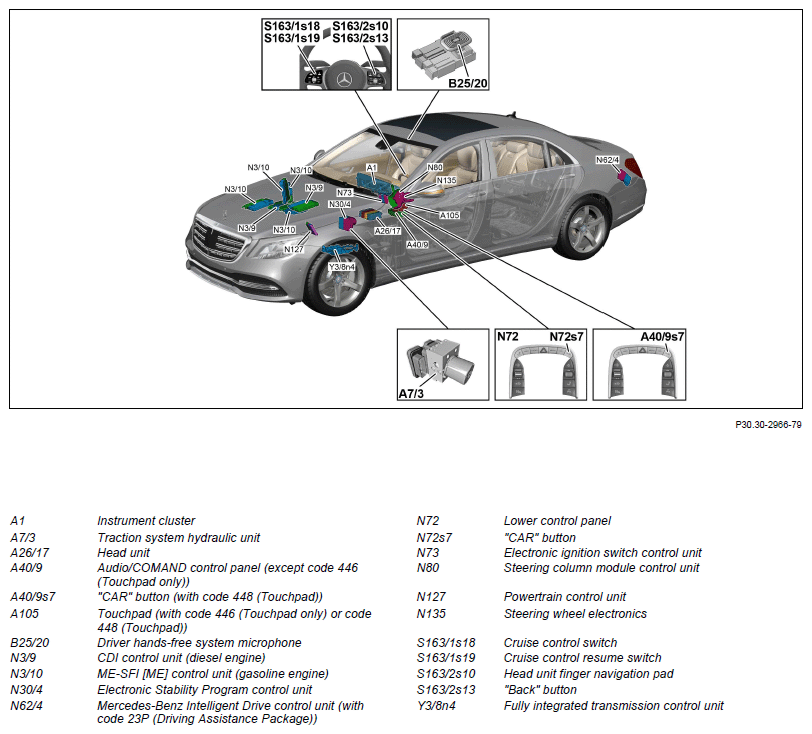

ATTENTION ASSIST, shown on Model 222

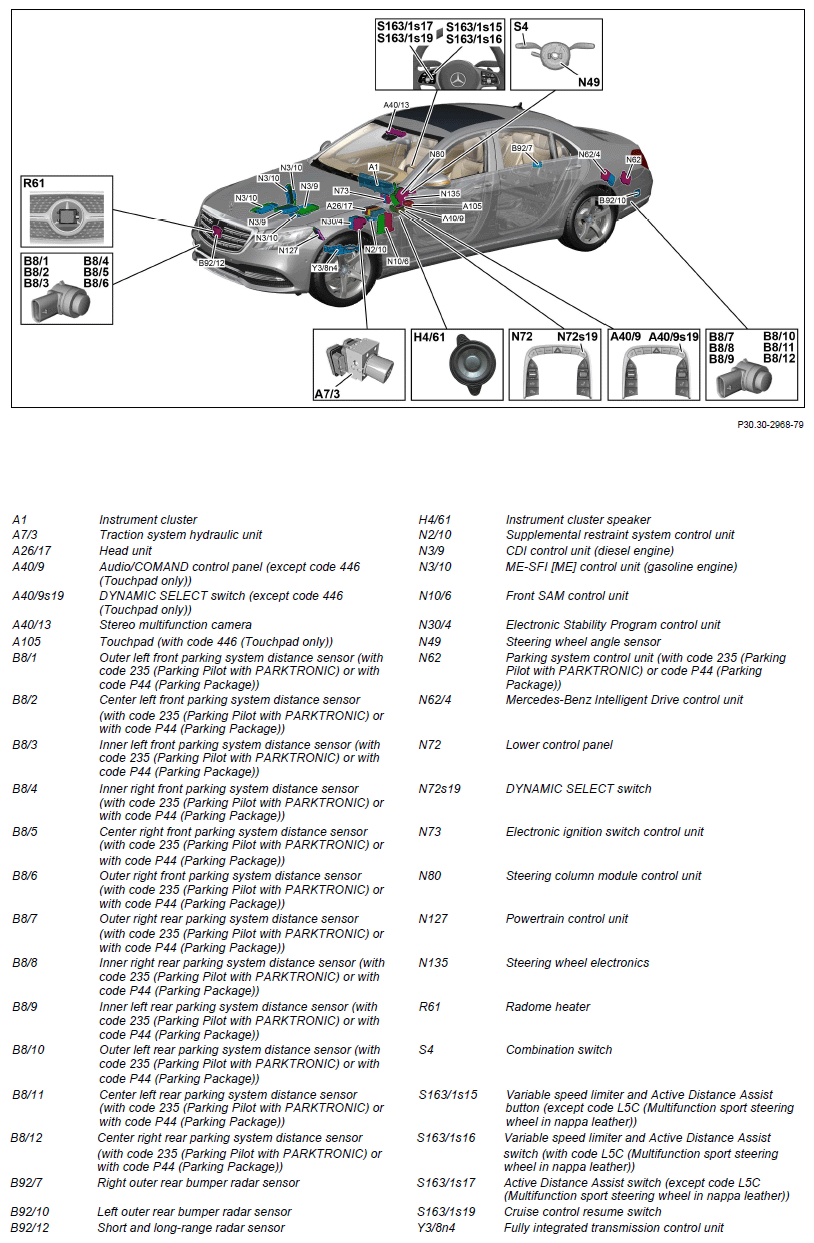

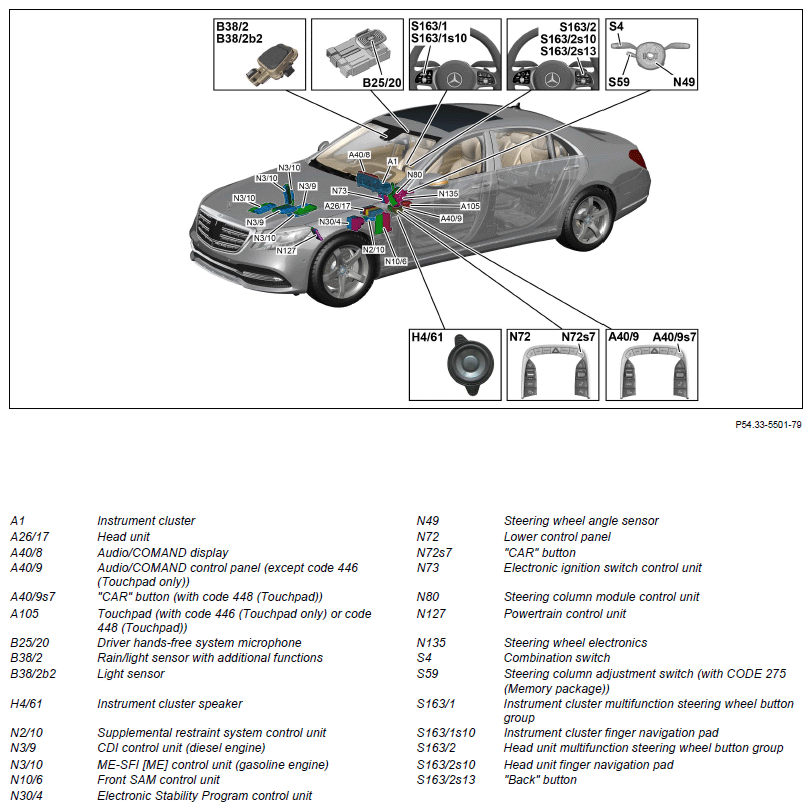

Cruise control, shown on Model 222

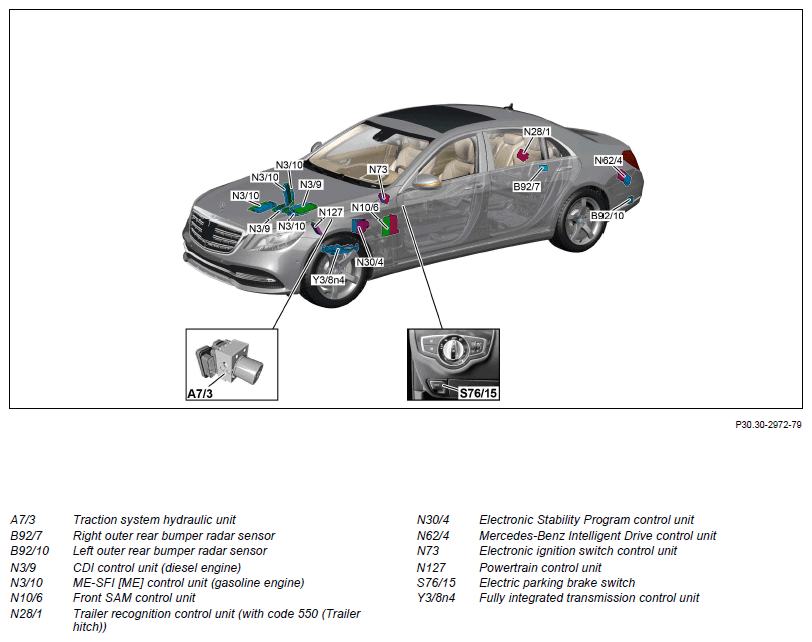

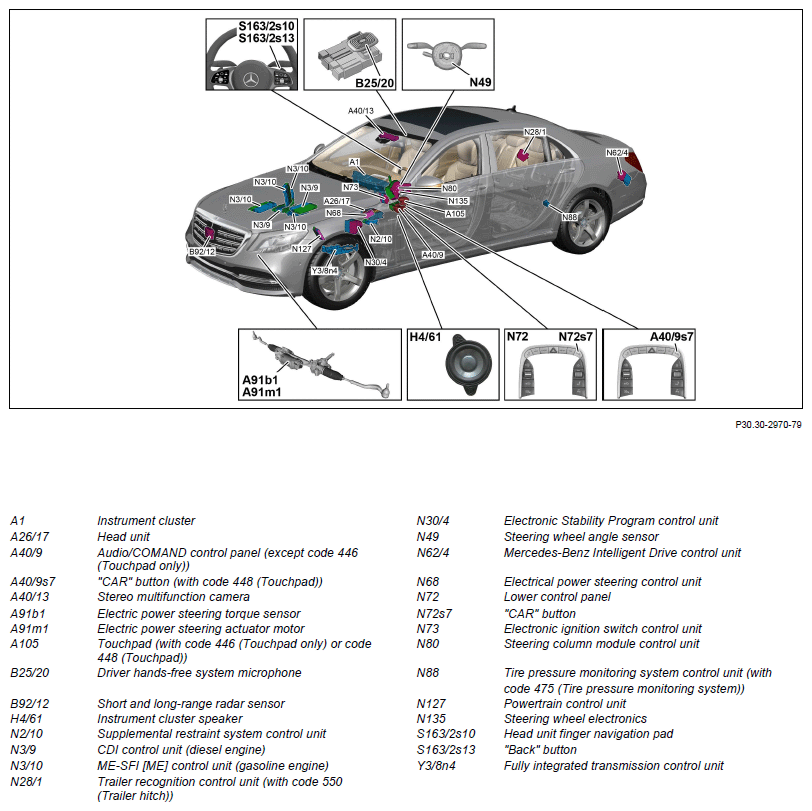

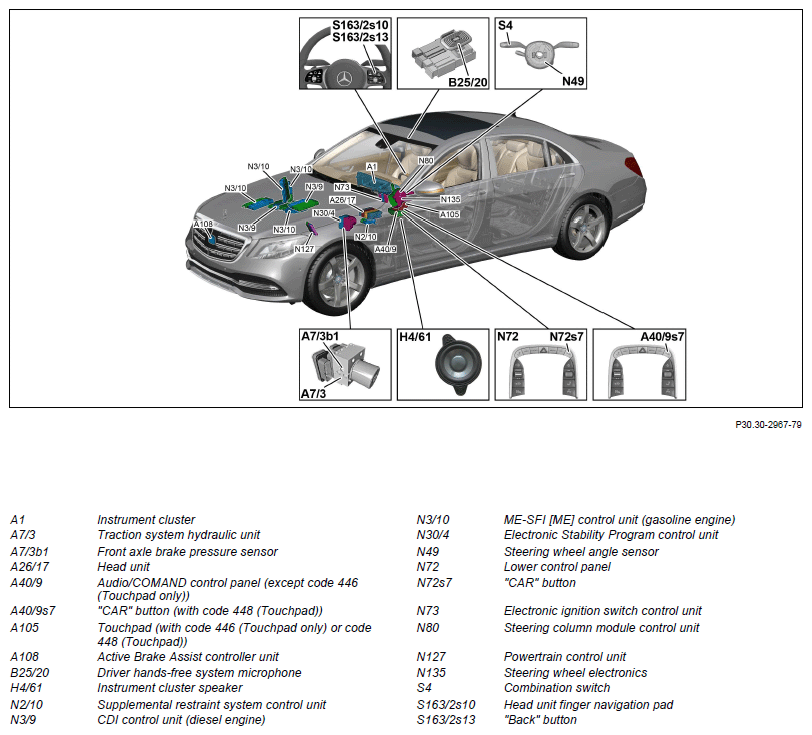

Active Brake Assist (with code 258 (Active Brake Assist)), shown on Model 222

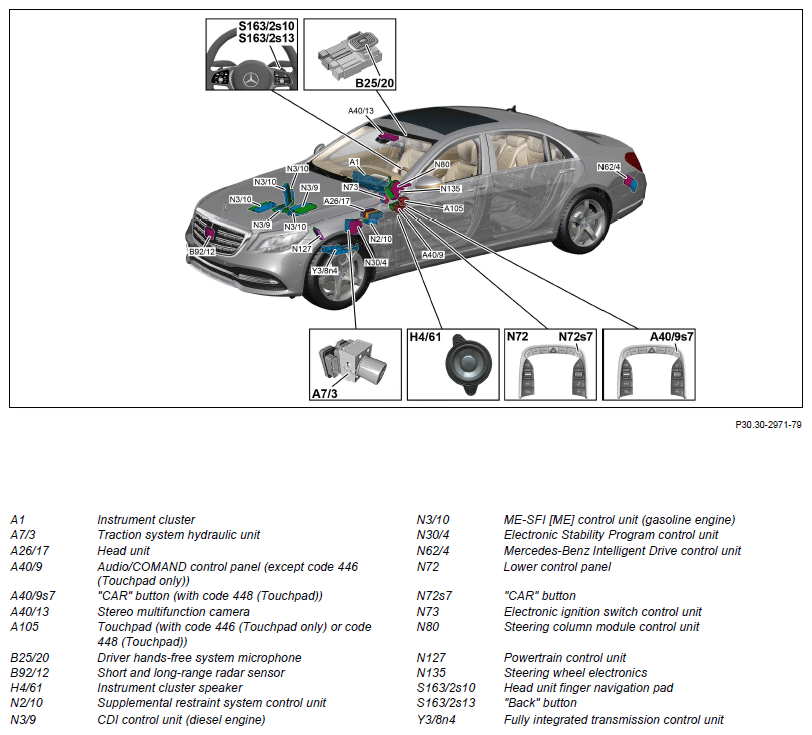

Active Distance Assist DISTRONIC (with code 23P (Driving Assistance Package)), shown on Model 222

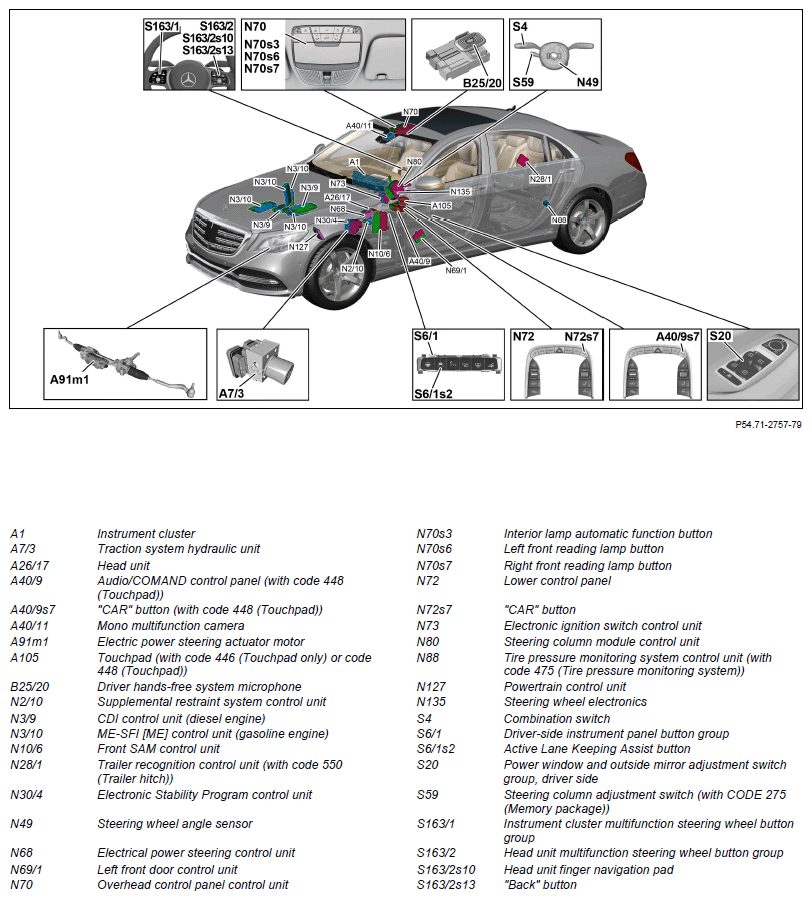

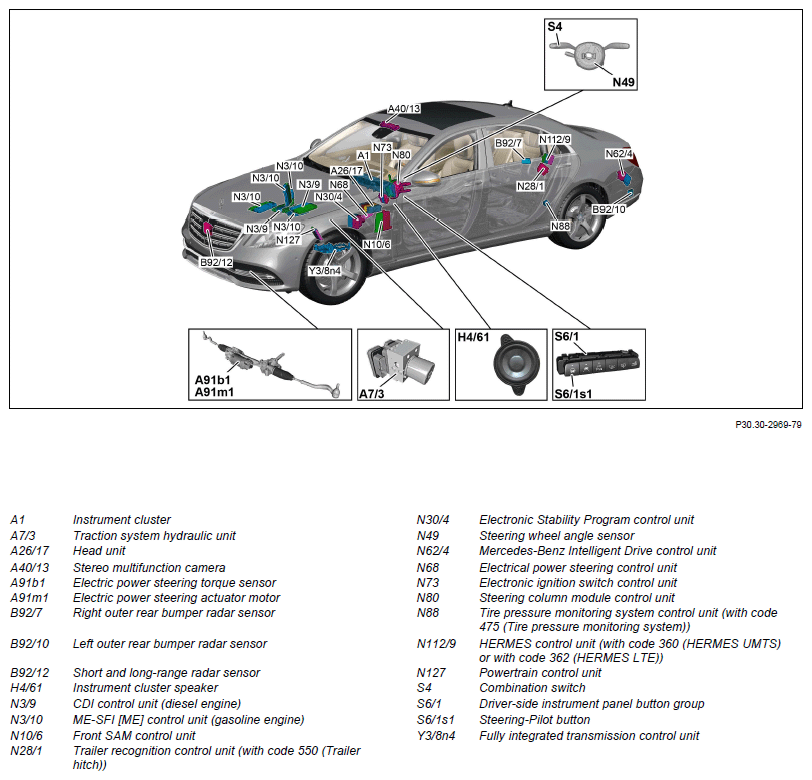

Steering Pilot (with code 23P (Driving Assistance Package)), shown on Model 222
Evasive Steering Assist (with code 23P (Driving Assistance Package)), shown on Model 222

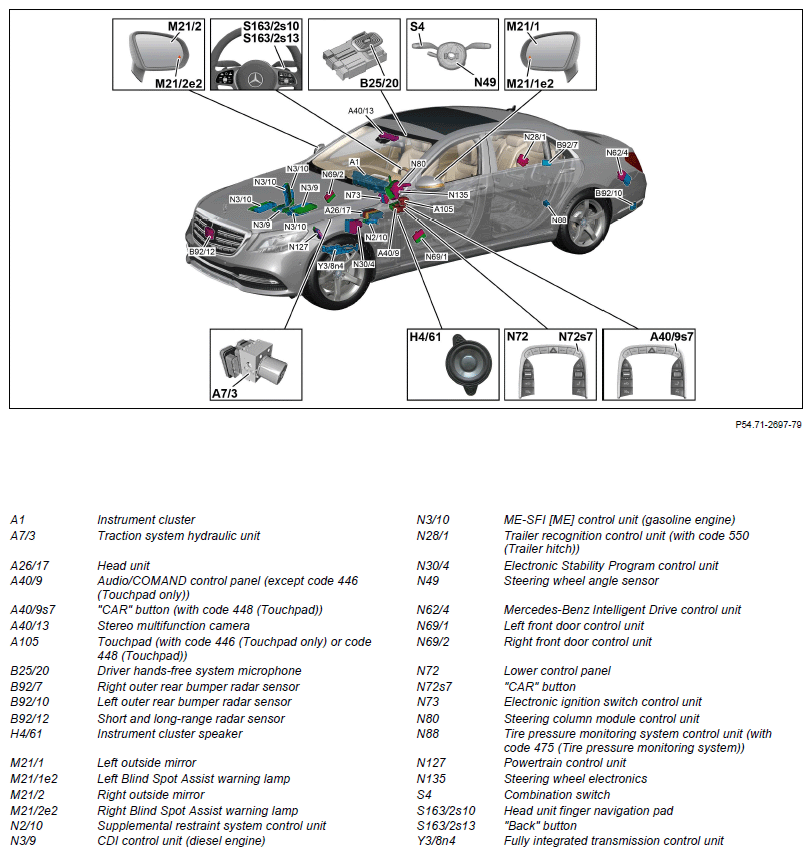

Blind Spot Assist (with code 234 (Blind Spot Assist)), shown on Model 222

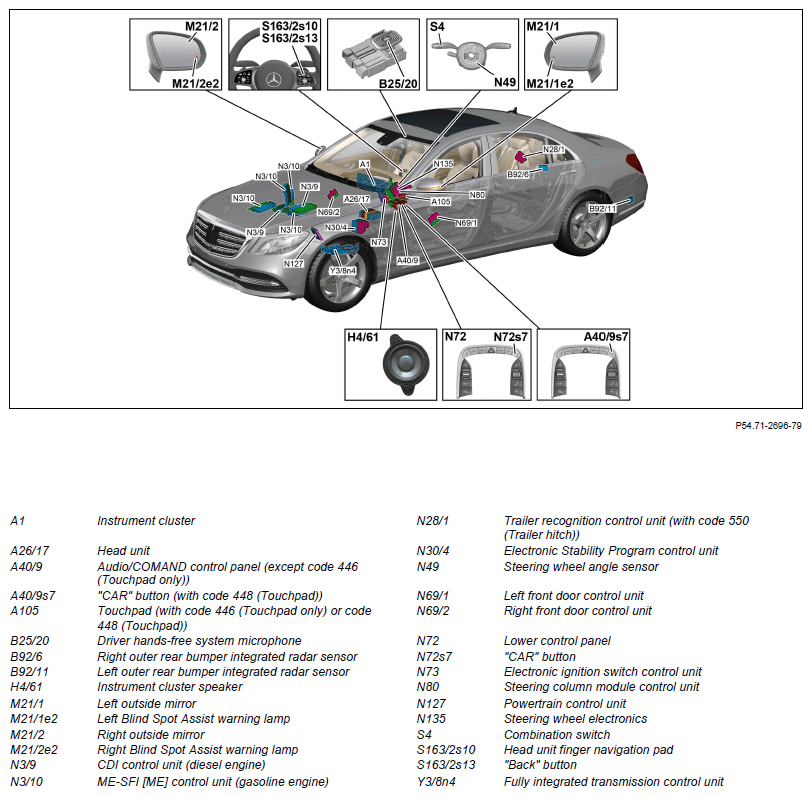

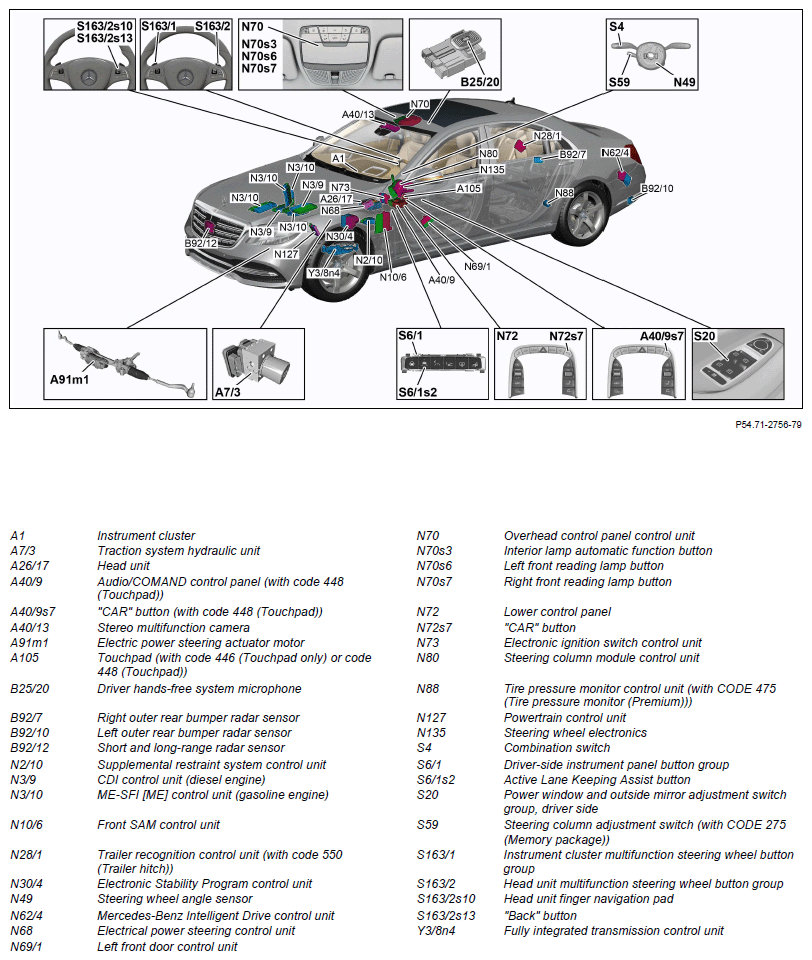

Active Blind Spot Assist (with code 23P (Driving Assistance Package)), shown on Model 222

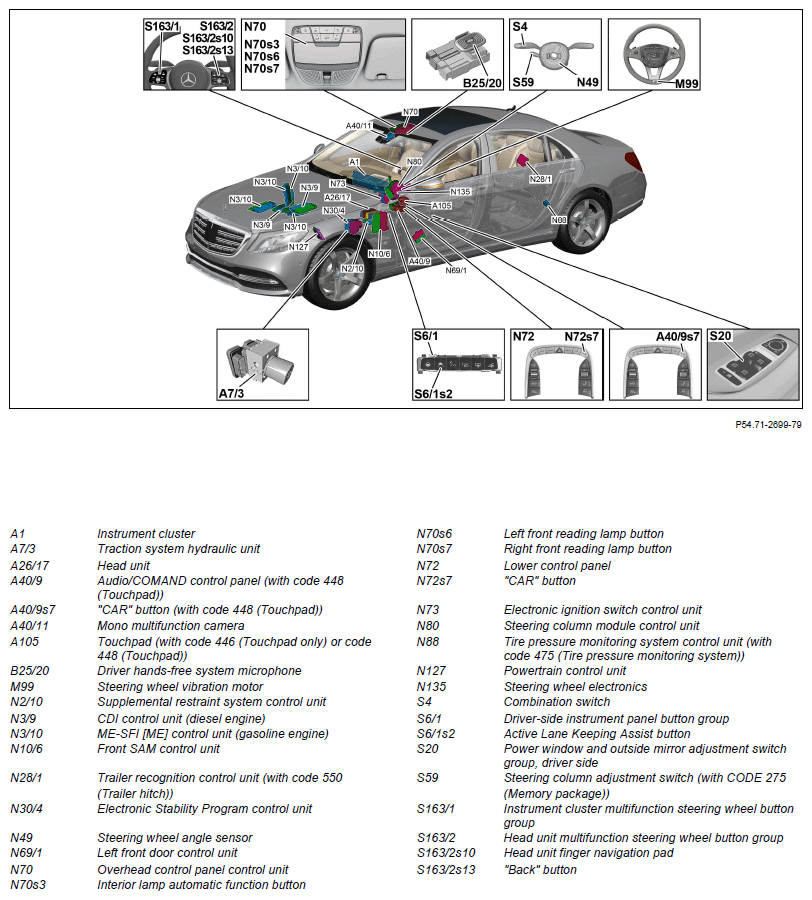

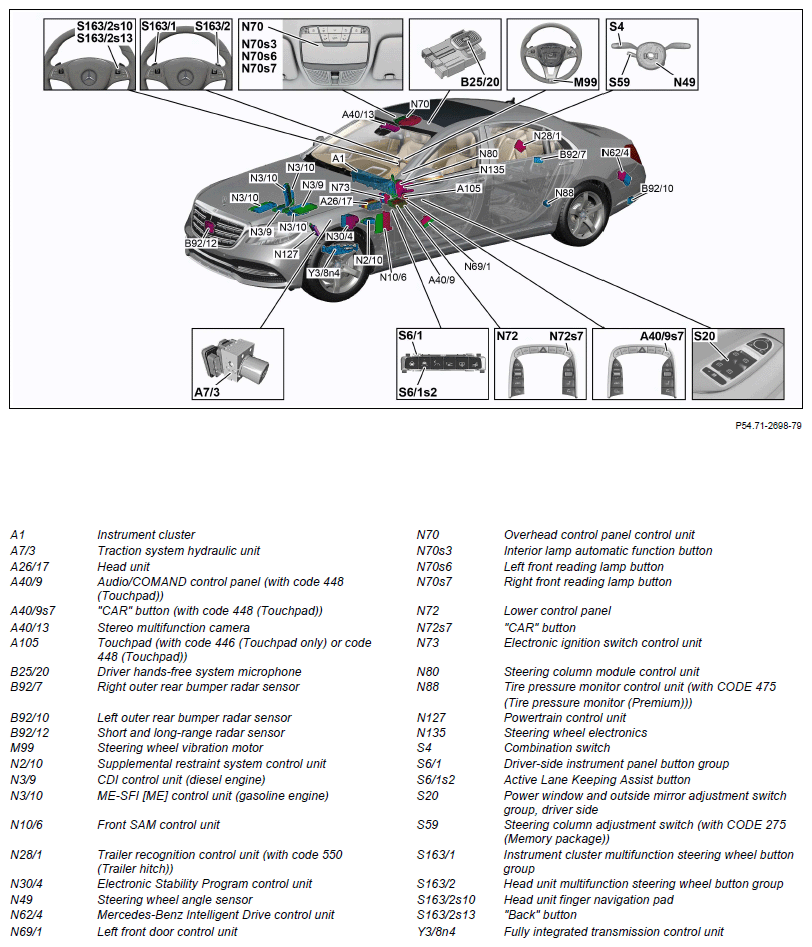

Active Lane Keeping Assist (with code 23P (Driving Assistance Package) except code 243 (Active Lane Keeping Assist)), shown on Model 222 as of 01.06.2018
Active Lane Keeping Assist (with code 23P (Driving Assistance Package) except code 243 (Active Lane Keeping Assist)), shown on Model 222 up to 31.05.2018
Active Lane Keeping Assist (with code 243 (Active Lane Keeping Assist) except code 23P (Driving Assistance Package)), shown on Model 222 as of 01.06.2018
Active Lane Keeping Assist (with code 243 (Active Lane Keeping Assist) except code 23P (Driving Assistance Package)), shown on Model 222 up to 31.05.2018
Active Brake Assist with cross-traffic function (with code 23P (Driving Assistance Package)), shown on Model 222
Rear-end PRE-SAFE (with code 23P (Driving Assistance Package)), shown on Model 222
Traffic Sign Assist (with code 513 (Traffic Sign Assist)), shown on Model 222

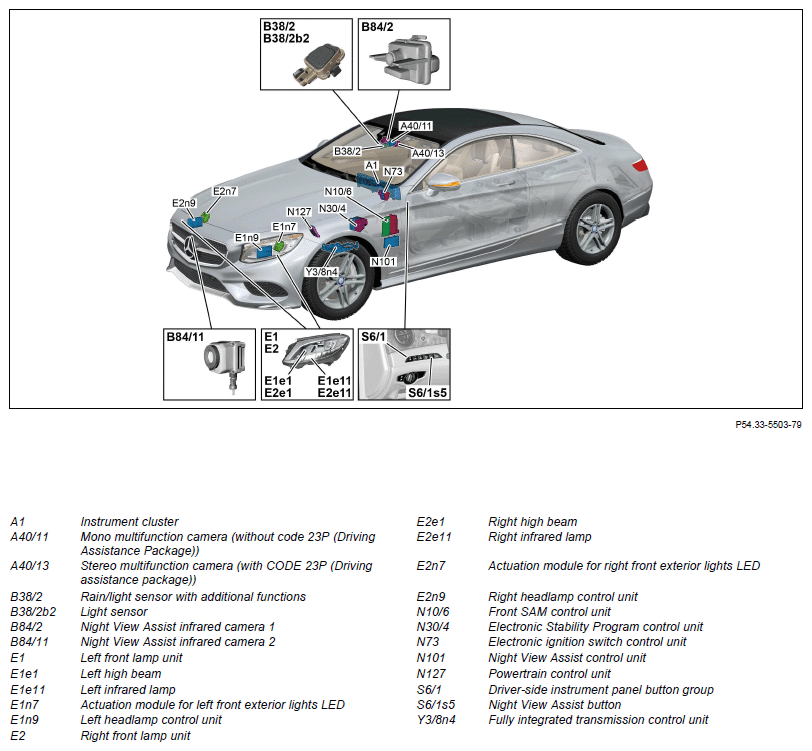

Night View Assist (with code 610 (Night View Assist)), shown on Model 217

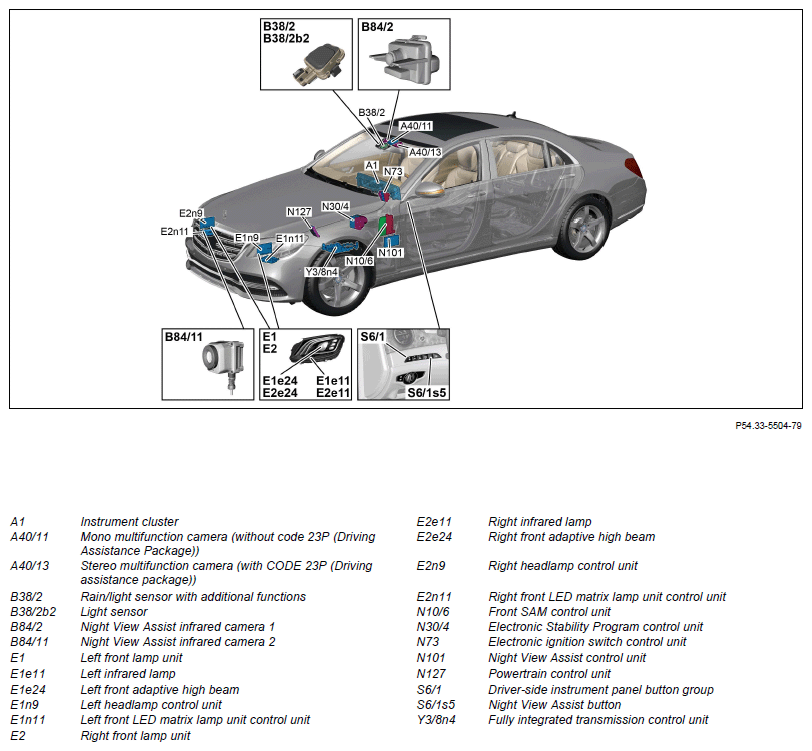

Night View Assist (with code 610 (Night View Assist)), shown on Model 222
| Component description for instrument cluster | A1 | GF54.30-P-6000LFM | |
| Head unit, component description | A26/17 | GF82.85-P-3140LFM | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150LFM | |
| Component description for Audio/COMAND control panel | Model 217, 222 as of model year 2018 with code 448 (Touchpad) A40/9 | GF54.21-P-4501LFM | |
| Component description for multifunction camera | Model 217, 222 as of model year 2018 with code 22P (Lane tracking package) 217, 222 as of model year 2018 with code 23P (Driving Assistance package) 217, 222 as of model year 2018 with code 513 (Traffic Sign Assist) Model 217, 222 as of model year 2018 with code 610 (Night view assist) A40/11, A40/13 |
GF54.21-P-3300LFM | |
| Head-up display, component description | Model 217, 222 as of model year 2018 with code 463 (Head-up display) A40/12 | GF54.30-P-6140LF | |
| Touchpad, component description | Model 217, 222 as of model year 2018 with code 446 (Touchpad only) Model 217, 222 as of model year 2018 with code 448 (Touchpad) A105 |
GF54.21-P-4511LF | |
| Active Brake Assist controller unit, component description | Model 217, 222 as of model year 2018 with code 258 (Active Brake Assist System) A108 | GF30.30-P-3222LFM | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005LF | |
| Component description for bumper radar sensors | Model 217, 222 as of model year 2018 with code 234 (Blind Spot Monitoring) Model 217, 222 as of model year 2018 with code 23P (Driving Assistance package) B92/6, B92/7, B92/10, B92/11 |
GF30.30-P-3302LFM | |
| Short and long-range radar sensor, component description | Model 217, 222 as of model year 2018 with code 23P (Driving Assistance package) B92/12 | GF30.30-P-3126LFM | |
| Actuation module, LED exterior lighting, front, component description | Model 217 as of model year 2018 E1n7, E2n7 | GF82.10-P-2160LF | |
| Headlamp control unit, component description | Model 222 as of model year 2018 with code 640 (SAE dynamic LED headlamps right-hand traffic) 222 as of model year 2018 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 222 as of model year 2018 with code 642 (Dynamic LED headlamps, right-hand traffic) E1n9, E2n9 |
GF82.10-P-2020LFM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for CDI control unit | Model 222 with engine 656.9 as of model year 2018 N3/9 | GF07.16-P-6000OIA | |
| Component description for ME-SFI (ME) control unit | Model 217, 222 with engine 276.8 as of model year 2018 N3/10 | GF07.61-P-6000MMT | |
| Model 217 with engine 279 as of model year 2018 Model 222 with engine 277, 279 as of model year 2018 N3/10 |
GF07.61-P-6000MUB | ||
| Model 217, 222 with engine 176.9, 177.9 as of model year 2018 N3/10 | GF07.61-P-6000MNL | ||
| Model 222 with engine 256.9 as of model year 2018 N3/10 | GF07.61-P-6000MRT | ||
| Model 222 with engine 264.9 as of model year 2018 N3/10 | GF07.61-P-6000MRK | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for trailer recognition control unit | Model 222 as of model year 2018 with code 550 (Trailer coupling) N28/1 | GF31.19-P-4050LF | |
| Component description for Electronic Stability Program control unit | Model 222.173 as of model year 2018 N30/4 | GF42.45-P-5119LFA | |
| Model 217, 222 (except 222.173) as of model year 2018 N30/4 | GF42.45-P-5119LFM | ||
| Parking system control unit, component description | Model 217 as of model year 2018 Model 222 as of model year 2018 with code 235 (Parking Pilot with PARKTRONIC) N62 |
GF54.65-P-5004LFM | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 217, 222 as of model year 2018 with code 23P (Driving Assistance package) N62/4 | GF30.30-P-3312LFM | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010LF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216LF | |
| Lower control panel, component description | Model 217, 222 as of model year 2018 with code 446 (Touchpad only) N72 | GF54.25-P-4270LFM | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051LFM | |
| Component description for tire pressure monitor control unit | Model 217, 222 as of model year 2018 with code 475 (Tire pressure monitoring system) N88 | GF40.15-P-5124LF | |
| Night View Assist control unit, component description | Model 217, 222 as of model year 2018 with code 610 (Night view assist) N101 | GF54.30-P-6200LF | |
| HERMES control unit, component description | Model 217, 222 as of model year 2018 with code 360 (HERMES UMTS) Model 217, 222 as of model year 2018 with code 362 (HERMES LTE) N112/9 |
GF82.85-P-0221LF | |
| Drivetrain control unit, component description | Model 217 with engine 176.9, 177.9 as of model year 2018 217, 222 (except 222.163/173) with engine 157.9, 276.8, 277, 278.9, 279 as of model year 2018 Model 222 with engine 176.9, 177.9, 256.9, 264.9 as of model year 2018 N127 |
GF54.21-P-2141LF | |
| Model 222 with engine 276.9 as of model year 2018 Model 222.163/173 with engine 276.8 as of model year 2018 N127 |
GF54.21-P-2141MMK | ||
| Model 222 with engine 656.9 as of model year 2018 N127 | GF54.21-P-2141OIA | ||
| Steering wheel electronics control unit, component description | N135 | GF82.90-P-4006LFM | |
| Component description for fully integrated transmission control unit | Model 217, 222 with transmission 722.931/97' as of model year 2018 Y3/8n4 | GF27.60-P-5165AHD | |
| Model 217, 222 with transmission 722.932 as of model year 2018 Y3/8n4 | GF27.60-P-5165AHY | ||
| Model 222 with transmission 725.0 (except 725.017/066/096) as of model year 2018 Y3/8n4 | GF27.60-P-5165AND | ||
| Table of contents for function description of driver assistance systems | GF54.00-P-0998LFM |
