Remove/Install DC/DC Converter Control Unit For Windshield Heater - AR54.21-P-1603LF
Model 222
With Code 597 (Heated windshield)
except code B01 (48V technology)
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Detach ground line of on-board electrical system battery | AR54.10-P-0003LF | |
| 2 | Remove luggage compartment lining on right | Model 222 with code 597 (Heated windshield) except code B01 (48V technology) |
|
| AR68.30-P-4600LF | |||
| 3 | Disconnect electrical connection on AdBlue® control unit | Model 222 with code 597 (Heated windshield) with code U77 (Diesel Emission control BLUETEC (SCR)) except code B01 (48V technology) |
|

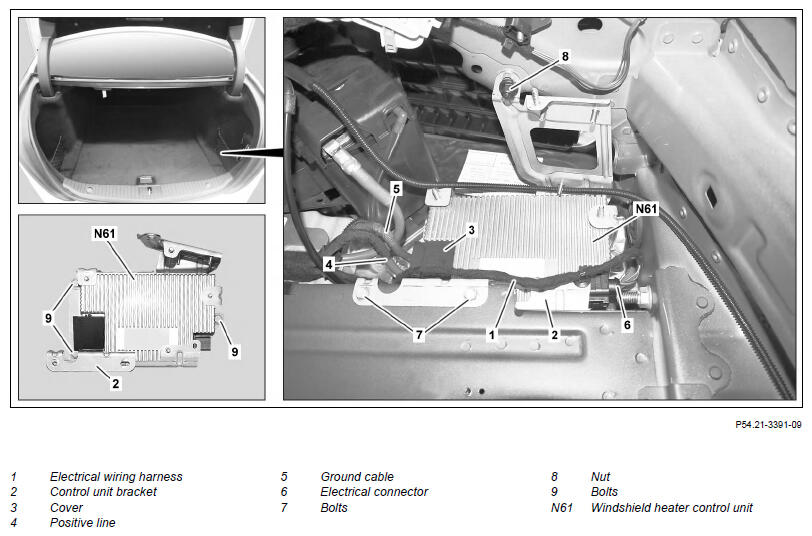

| 4 | Remove electrical wiring harness (1) from control unit holder (2) | ||
| 5 | Open cover (3) | ||
| 6 | Remove positive line (4) from windshield heater control unit (N61) | *BA54.21-P-1001-01D | |
| 7 | Remove ground line (5) from windshield heater control unit (N61) | *BA54.21-P-1001-01D | |
| 8 | Disconnect electrical connector (6) | ||
| 9 | Remove bolts (7) | ||
| 10 | Unscrew nut (8) | ||
| 11 | Take control unit holder (2) with windshield heater control unit (N61) out of trunk | ||
| 12 | Unscrew screws (9) and remove windshield heater control unit (N61) from control unit holder (2) | When replacing windshield heater control unit (N61). | |
| 13 | Install in the reverse order |
CONTROL UNITS
| Number | Designation | Model 222 | |
|---|---|---|---|
| BA54.21-P-1001-01D | Nut, line to windshield heater control unit | Nm | 9 |
