Remove/Install Multimedia Connection Unit In Front Stowage Compartment - AR82.60-P-1032LFM
Model 217, 222
As Of Model year 2018
Shown on Model 222 Except Code 582 (Air conditioning system in the rear)

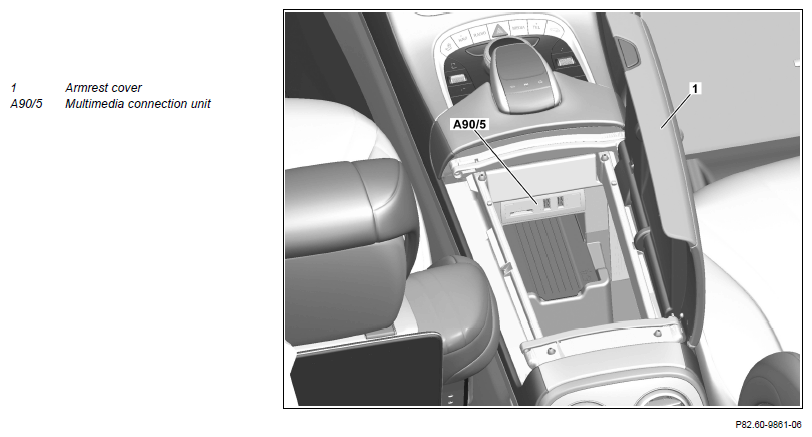

Fig 1: Multimedia Connection Unit In Front Stowage Compartment Components Location - Model 222 As Of Model year 2018 (Shown Except Code 582)
Shown on Model 222 Except Code 582 (Air conditioning system in the rear)
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Open armrest cover (1) | ||

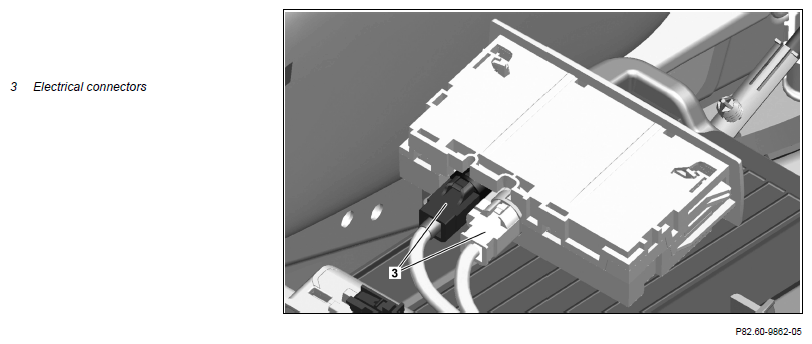

| 2 | Unclip multimedia connection unit (A90/5) | Fig 2 | |
| 3 | Release and disconnect electrical connections (3) | ||
| 4 | Install in the reverse order |
