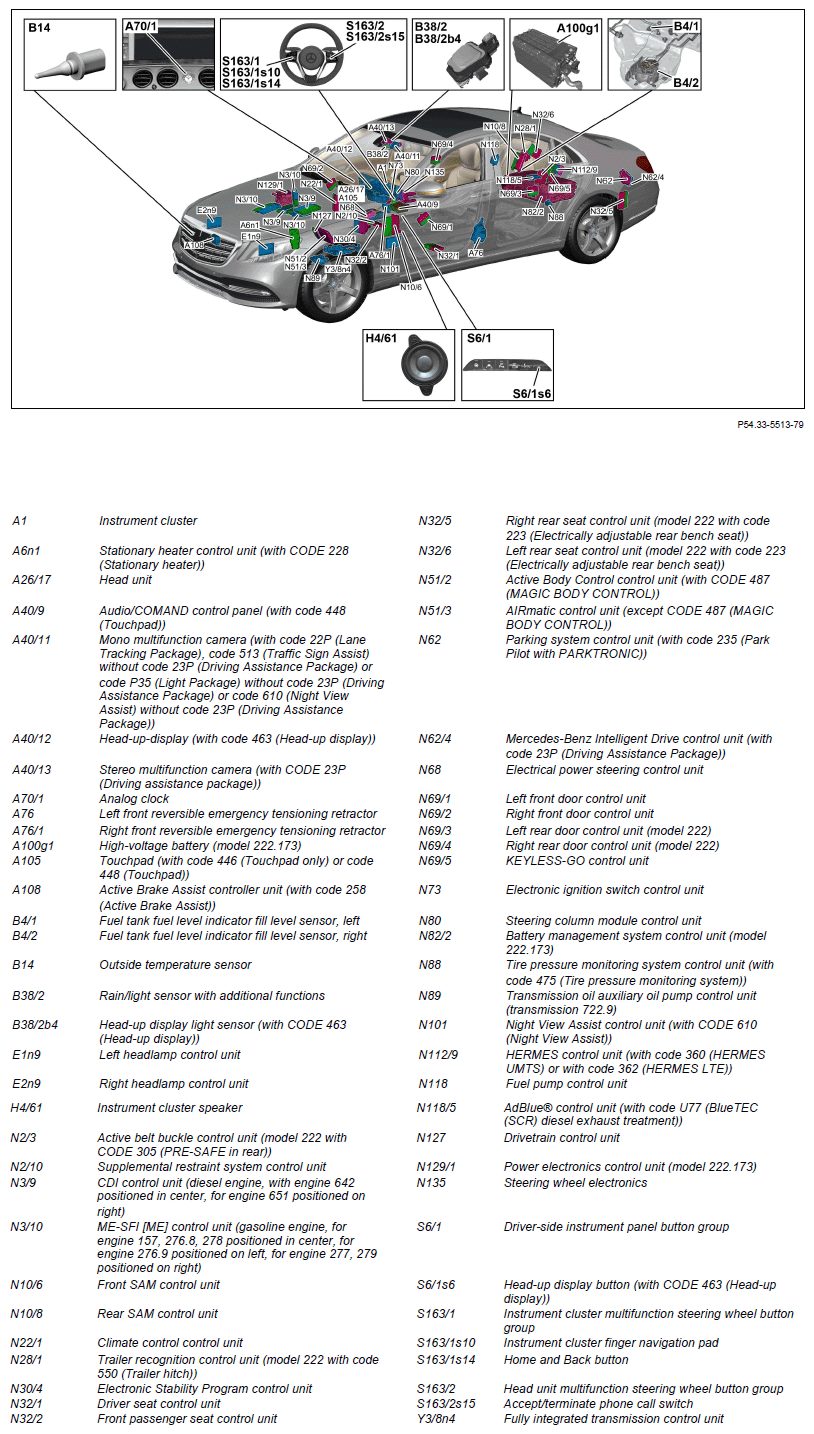

Overview Of System Components, Instrument Cluster (IC) Component Description - GF54.30-P-9996LFM
Model 217, 222 as of model year 2018
Shown model 222.0
Model 217.4 as of model year 2018
The rear control unit (N22/6) is also installed (soft top warning).
| Component description for instrument cluster | A1 | GF54.30-P-6000LFM | |
| Stationary heater control unit, component description | Model 217.3, 222 as of model year 2018 with code 228 (Auxiliary heater) A6n1 | GF83.70-P-4066LF | |
| Head unit, component description | A26/17 | GF82.85-P-3140LFM | |
| Component description for Audio/COMAND control panel | Model 217, 222 as of model year 2018 with code 448 (Touchpad) A40/9 | GF54.21-P-4501LFM | |
| Component description for multifunction camera | Model 217, 222 as of model year 2018 with code 22P (Lane tracking package) 217, 222 as of model year 2018 with code 23P (Driving Assistance package) 217, 222 as of model year 2018 with code 513 (Traffic Sign Assist) 217, 222 as of model year 2018 with code 610 (Night view assist) Model 217, 222 as of model year 2018 with code P35 (Light Package) A40/11, A40/13 |
GF54.21-P-3300LFM | |
| Head-up display, component description | Model 217, 222 as of model year 2018 with code 463 (Head-up display) A40/12 | GF54.30-P-6140LF | |
| Component description for front reversible emergency tensioning retractors | A76, A761 | GF91.40-P-4020LF | |
| Touchpad, component description | Model 217, 222 as of model year 2018 with code 448 (Touchpad) Model 222 as of model year 2018 with code 446 (Touchpad only) A105 |
GF54.21-P-4511LF | |
| Active Brake Assist controller unit, component description | Model 217, 222 as of model year 2018 with code 258 (Active Brake Assist System) A108 | GF30.30-P-3222LFM | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005LF | |
| Headlamp control unit, component description | Model 222 as of model year 2018 with code 640 (SAE dynamic LED headlamps right-hand traffic) 222 as of model year 2018 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 222 as of model year 2018 with code 642 (Dynamic LED headlamps, right-hand traffic) E1n9, E2n9 |
GF82.10-P-2020LFM | |
| Active belt buckle control unit, component description | Model 222 as of model year 2018 with code 305 (Rear PRE-SAFE) N2/3 | GF91.60-P-4122LF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for CDI control unit | Model 222 with engine 656.9 as of model year 2018 N3/9 | GF07.16-P-6000OIA | |
| Component description for ME-SFI (ME) control unit | Model 217, 222 with engine 276.8 as of model year 2018 N3/10 | GF07.61-P-6000MMT | |
| Model 217 with engine 279 as of model year 2018 Model 222 with engine 277, 279 as of model year 2018 N3/10 |
GF07.61-P-6000MUB | ||
| Model 217, 222 with engine 176.9, 177.9 as of model year 2018 N3/10 | GF07.61-P-6000MNL | ||
| Model 222 with engine 256.9 as of model year 2018 N3/10 | GF07.61-P-6000MRT | ||
| Model 222 with engine 264.9 as of model year 2018 N3/10 | GF07.61-P-6000MRK | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250LF | |
| Rear control unit, component description | Model 217 as of model year 2018 N22/6 | GF54.21-P-4134LF | |
| Component description for trailer recognition control unit | Model 222 as of model year 2018 with code 550 (Trailer coupling) N28/1 | GF31.19-P-4050LF | |
| Component description for Electronic Stability Program control unit | Model 222.173 as of model year 2018 N30/4 | GF42.45-P-5119LFA | |
| Model 217, 222 (except 222.173) as of model year 2018 N30/4 | GF42.45-P-5119LFM | ||
| Component description for driver seat control unit | N32/1 | GF91.29-P-5231LF | |
| Component description for front passenger seat control unit | N32/2 | GF91.29-P-5241LF | |
| Right rear seat control unit, component description | Model 222 as of model year 2018 with code 223 (Electrically adjustable rear bench seat) N32/5 | GF91.29-P-5290LF | |
| Left rear seat control unit, component description | Model 222 as of model year 2018 with code 223 (Electrically adjustable rear bench seat) N32/6 | GF91.29-P-5285LF | |
| ABC control unit, component description | Model 217, 222 as of model year 2018 with code 487 (MAGIC BODY CONTROL) N51/2 | GF32.50-P-4501LF | |
| AIRMATIC control unit, component description | N51/3 | GF32.22-P-5110LF | |
| Parking system control unit, component description | Model 217 as of model year 2018 Model 222 as of model year 2018 with code 235 (Parking Pilot with PARKTRONIC) N62 |
GF54.65-P-5004LFM | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 217, 222 as of model year 2018 with code 23P (Driving Assistance package) N62/4 | GF30.30-P-3312LFM | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010LF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for rear door control unit | Model 222 as of model year 2018 N693, N694 | GF72.29-P-6021LF | |
| Component description for KEYLESS-GO control unit | N69/5 | GF80.61-P-4204LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051LFM | |
| Component description for battery management system control unit | Model 222.004/104 with engine 651.9 as of model year 2018 Model 222.057/157/163/173 with engine 276 as of model year 2018 N82/2 |
GF54.10-P-3012LFH | |
| Component description for tire pressure monitor control unit | Model 217, 222 as of model year 2018 with code 475 (Tire pressure monitoring system) N88 | GF40.15-P-5124LF | |
| Component description for transmission oil auxiliary oil pump control unit | Model 217, 222 with transmission 722.9 (except 722.931/932/971) as of model year 2018 N89 | GF27.19-P-4031AHB | |
| Model 217, 222 with transmission 722.931/97' as of model year 2018 N89 | GF27.19-P-4031AHD | ||
| Model 217, 222 with transmission 722.932 as of model year 2018 N89 | GF27.19-P-4031AHY | ||
| Night View Assist control unit, component description | Model 217, 222 as of model year 2018 with code 610 (Night view assist) N101 | GF54.30-P-6200LF | |
| HERMES control unit, component description | Model 217, 222 as of model year 2018 with code 360 (HERMES UMTS) Model 217, 222 as of model year 2018 with code 362 (HERMES LTE) N112/9 |
GF82.85-P-0221LF | |
| Component description for fuel pump control unit | Model 217, 222 with engine 157.9, 176.9, 177.9, 276.8, 278.9 as of model year 2018 Model 222 with engine 256.9, 276.9 as of model year 2018 N118 |
GF47.40-P-2001MMK | |
| Model 217 with engine 279 as of model year 2018 Model 222 with engine 277, 279 as of model year 2018 N118 |
GF47.40-P-2001MUB | ||
| Model 222 with engine 642.8, 651.9, 656.9 as of model year 2018 N118 | GF47.40-P-2001OGS | ||
| Model 222 with engine 264.9 as of model year 2018 N118 | GF47.40-P-2001MRK | ||
| Component description for exhaust aftertreatment control unit | Model 222 with engine 656.9 as of model year 2018 N118/5 | GF14.40-P-3030OIA | |
| Drivetrain control unit, component description | Model 217 with engine 176.9, 177.9 as of model year 2018 217, 222 (except 222.163/173) with engine 157.9, 276.8, 277, 278.9, 279 as of model year 2018 Model 222 with engine 176.9, 177.9, 256.9 as of model year 2018 N127 |
GF54.21-P-2141LF | |
| Model 222 with engine 276.9 as of model year 2018 Model 222.163 with engine 276.8 as of model year 2018 N127 |
GF54.21-P-2141MMK | ||
| Model 222 with engine 656.9 as of model year 2018 N127 | GF54.21-P-2141OIA | ||
| Component description for power electronics control unit | Model 222.004/104 with engine 651.9 as of model year 2018 Model 222.057/157/163/173 with engine 276 as of model year 2018 N129/1 |
GF08.20-P-1001LFH | |
| Steering wheel electronics control unit, component description | N135 | GF82.90-P-4006LFM | |
| Component description for fully integrated transmission control unit | Model 217, 222 with transmission 722.9 (except 722.931/932/971) as of model year 2018 Y38n4 | GF27.60-P-5165AHB | |
| Model 217, 222 with transmission 722.931/971 as of model year 2018 Y38n4 | GF27.60-P-5165AHD | ||
| Model 217, 222 with transmission 722.932 as of model year 2018 Y38n4 | GF27.60-P-5165AHY | ||
| Model 217, 222 with transmission 725.0 (except 725.017/066/096) as of model year 2018 Y38n4 | GF27.60-P-5165AND | ||
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997LF |
