Gasoline Injection And Ignition System With Direct Injection, Function - GF07.70-P-0002MMT
Engine 276.8 in model 217, 222

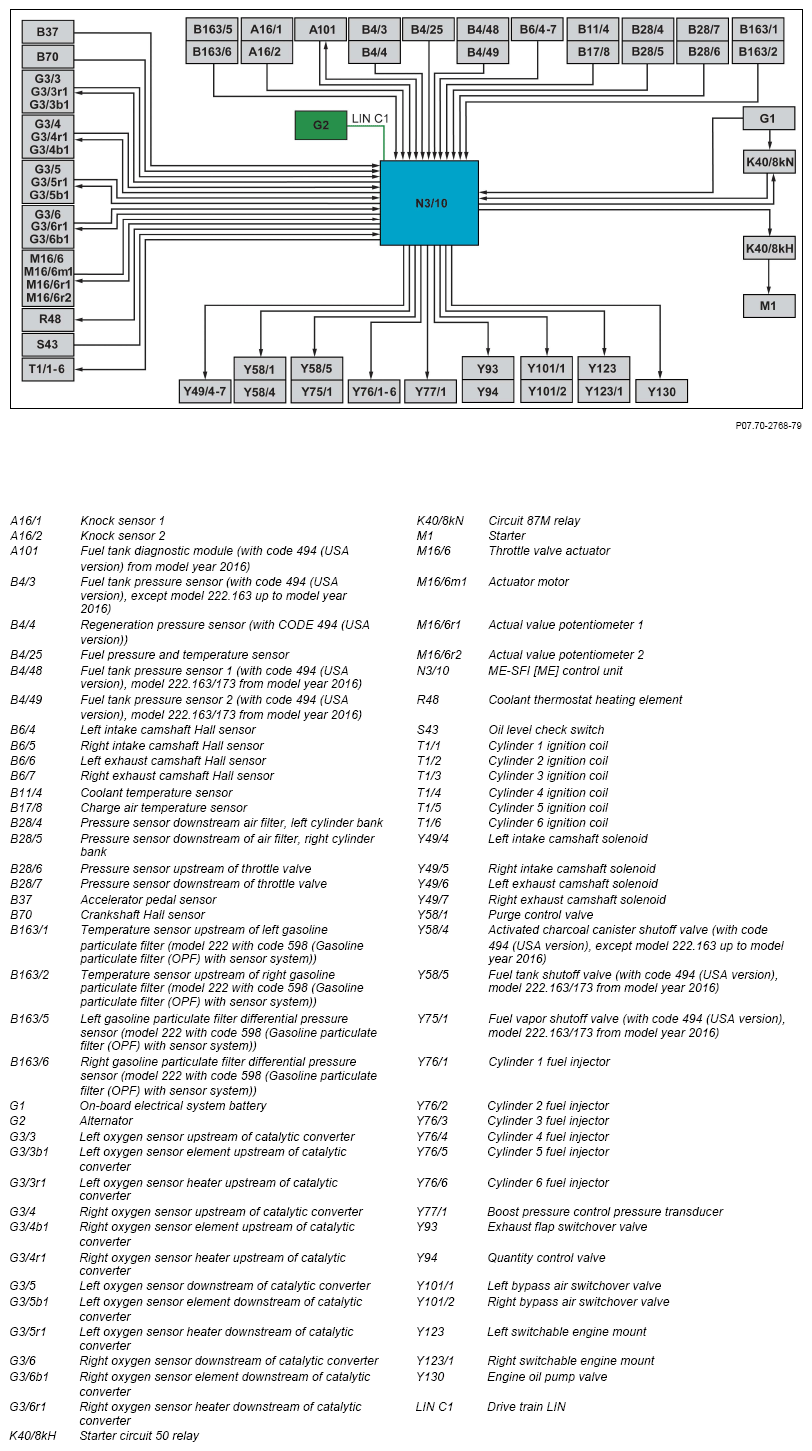

Block diagram for networking the direct line

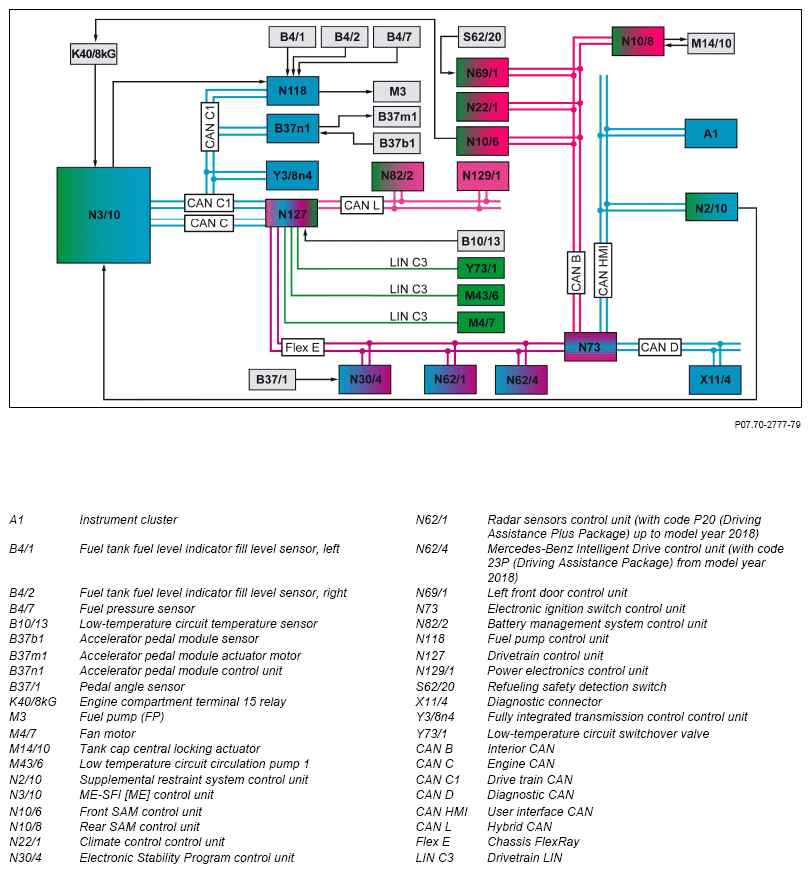

Block diagram for CAN networking model (except model 222.163/173)

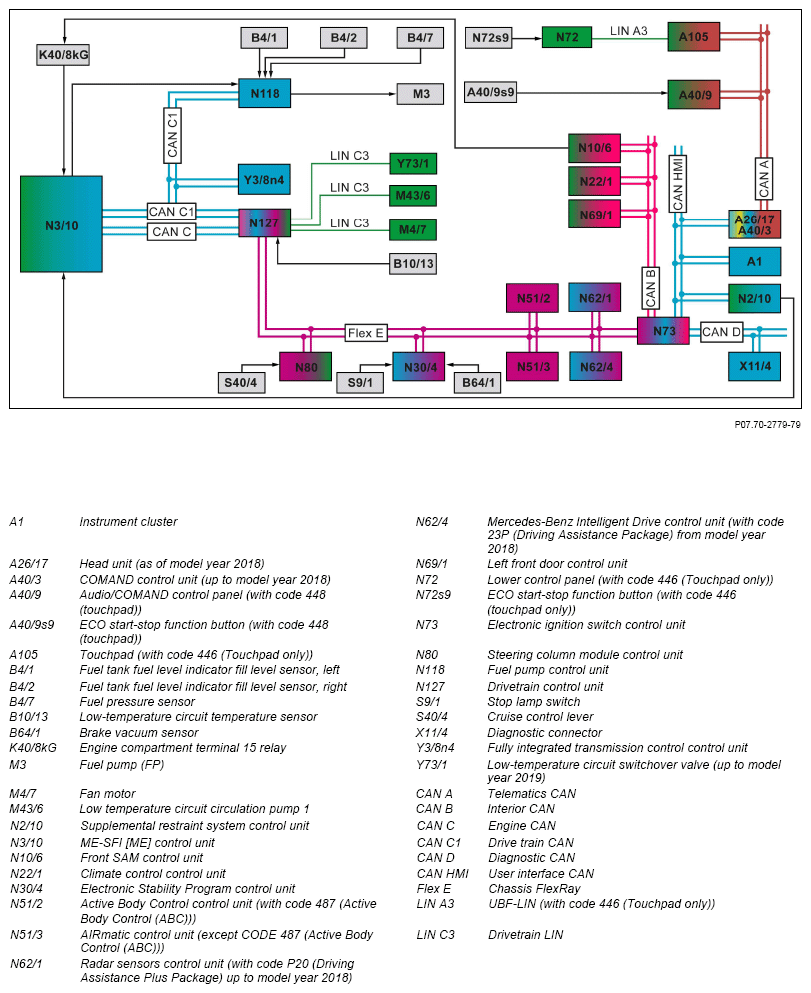

Block diagram for CAN networking (model 222.163/173)
Gasoline injection and ignition system with DI, general
The gasoline injection and ignition system with direct injection, in electrical combination with the sensors and actuators of engine 276.8 "DEH LA", forms the engine management "MED 17.7.3".
The short designation "DEH LA" stands for:
- D = Direct
- E = (Einspritzung) injection
- H = homogenous injection operation
- LA =(Aufladung) charging
The short designation MED 17.7.3 means:
- M = Motronic
- E = Electronic accelerator
- D = Direct injection
- 17.7.3 = Version 17.7.3
The whole engine management is contained in the ME-SFI control unit. Sensor data are read in directly by the engine management and indirectly via the CAN network and the respective actuators are actuated. Here the individual functions and systems of the engine management are controlled and coordinated by the ME-SFI control unit.
The engine management is subdivided into the following systems:
- Basic functions
- Engine management
- Fuel injection system
- Ignition system
- Exhaust system
Basic functions
- Control unit diagnosis
- Fault memory
- European On-Board Diagnosis
- Diagnosis via CAN
- CAN network
- Control module programming
- Transport mode
- Variant coding
- DAS stage 4 (FBS 4)
- Torque coordination
- Heat management
- Alternator interface
- Maximum vehicle speed limit
Diagnosis:
For diagnostic purposes, the fault codes of the engine management can be read out and deleted and individual diagnostic functions can be specifically actuated with a vehicle diagnosis system.
Control unit programming:
The engine management in the ME-SFI [ME] control unit is programmable, i.e. the software of the control unit can be exchanged (replaced) using a vehicle diagnosis system. The software required for control unit programming can be found on the diagnosis system software DVD.
Transport mode:
In transport mode various functions of the engine management are limited.
If the vehicle's kilometer reading is more than 250 km, the "transport mode" system status is deactivated automatically and cannot be reactivated anymore using the vehicle diagnosis system.
Variant coding:
The vehicle model, national version, exhaust variant and transmission version, for example, can be coded with the variant coding.
Engine management
- Starter relay actuation
- Throttle valve control
- Safety fuel shutoff
- Transmission overload protection
- Support for ESP®
- Fully integrated transmission control support
- Driving on torque limitation
- Fan operation
- Throttle valve calibration
- Boost pressure control (over wastegate)
- Regulated adjustment of the intake and exhaust camshafts
- ECO start/stop function
Fuel injection system
- Cylinder-selective DI
- Gasoline high pressure regulation
- Start, post-start phase and acceleration enrichment
- Warm-up control
- Idle speed control
- Limp-home function
- Rpm increase for an activated A/C
- Inertia fuel shutoff
- Fuel pump regulation (low fuel pressure)
- Altitude adaptation (integral pressure sensor in ME-SFI control unit)
- Load change function
- Rpm limitation
Ignition system
- Multi-spark ignition
- Ignition map
- Rpm limitation
- Knock sensor system
- Synchronization of camshaft and crankshaft position
Exhaust system
- Catalytic converter heating
- Oxygen sensor heater regulation
- Straight-line lambda control
- Exhaust gas aftertreatment (gasoline particulate filter) (model 217 with code 472 (Gasoline particulate filter) and model 222 with code 598 (Gasoline particulate filter (OPF) with sensor system))
Noise optimization of the exhaust system
There are exhaust flaps installed exhaust tailpipes to optimize the exhaust noise behavior.
The exhaust gas flaps are actuated in a load-dependent manner and electropneumatically via a characteristics map of the respective drive program by the exhaust gas flap switchover valve.
| Ignition ON, function | Engine 276.8 in model 217, 222 (except 222.163/173) | GF07.10-P-1000MML | |
| Engine 276.8 in model 222.163/173 | GF07.10-P-1000MMK | ||
| Starting, function | Engine 276.8 in model 217, 222 (except 222.163/173) | GF07.10-P-1001MML | |
| Engine 276.8 in model 222.163/173 | GF07.10-P-1001MMK | ||
| Ignition OFF, function | Engine 276.8 in model 217, 222 (except 222.163/173) | GF07.10-P-1002MML | |
| Engine 276.8 in model 222.163/173 | GF07.10-P-1002MMK | ||
| Fuel supply, function | GF07.10-P-1003MMK | ||
| Injection regulation, function | GF07.10-P-1004MML | ||
| Ignition system function | GF07.10-P-1005MMK | ||
| Synchronize fuel injection and firing order function | GF07.10-P-1006MMK | ||
| Start, post-start phase and warm-up enrichment, function | GF07.10-P-1007MMT | ||
| Rpm control, function | GF07.10-P-1008MMK | ||
| Alternator interface function | GF07.10-P-1009MMK | ||
| Lambda control, function | GF07.10-P-1010MMK | ||
| Smooth running control, function | GF07.10-P-1011MMK | ||
| Thermal management, function | GF07.10-P-1012MMT | ||
| Torque coordination, function | Engine 276.8 in model 217, 222 (except 222.163/173) | GF07.10-P-1013MML | |
| Engine 276.8 in model 222.163/173 | GF07.10-P-1013MMK | ||
| Overrun mode fuel shutoff, function | Engine 276.8 in model 217, 222 (except 222.163/173) | GF07.10-P-1014MML | |
| Engine 276.8 in model 222.163/173 | GF07.10-P-1014MMK | ||
| Knock control, function | GF07.10-P-1015MMT | ||
| Camshaft adjustment, function | GF07.10-P-1016MMK | ||
| Engine limp-home mode, function | Engine 276.8 in model 217, 222 (except 222.163/173) | GF07.10-P-1019MML | |
| Engine 276.8 in model 222.163/173 | GF07.10-P-1019MMK | ||
| On-board diagnosis, function | GF07.10-P-1020MMK | ||
| Engine timing start-stop function | Engine 276.8 in model 217, 222 (except 222.163/173) | GF07.10-P-1041MML | |
| Engine 276.8 in model 222.163/173 | GF07.10-P-1041MMK | ||
| Charging, function | GF09.00-P-2000MMT | ||
| Exhaust treatment function | GF14.00-P-3000MMK | ||
| Electronic accelerator function | Engine 276.8 in model 217, 222 (except 222.163/173) | GF30.20-P-3015MML | |
| Engine 276.8 in model 222.163/173 | GF30.20-P-3015MMK | ||
| Refueling safety detection function | Engine 276.8 in model 222.163/173 with code 494 (US version) |
GF47.00-P-1000MMK | |
| On-board refueling vapor recovery function | Engine 276.8 in model 217, 222 with code 494 (US version) |
GF47.10-P-3004MMK | |
| Purging function | GF47.30-P-3015MML | ||
| Purging system with leak test function | Engine 276.8 in model 217, 222 (except 222.163/173) with code 494 (US version) |
GF47.30-P-3016MML | |
| Engine 276.8 in model 222.163/173 with code 494 (US version) |
GF47.30-P-3016MMK | ||
| Overview of system components for gasoline injection and ignition system with direct injection | GF07.70-P-9998MMT |
