(Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MMK)
Engine 276.9 in model 222

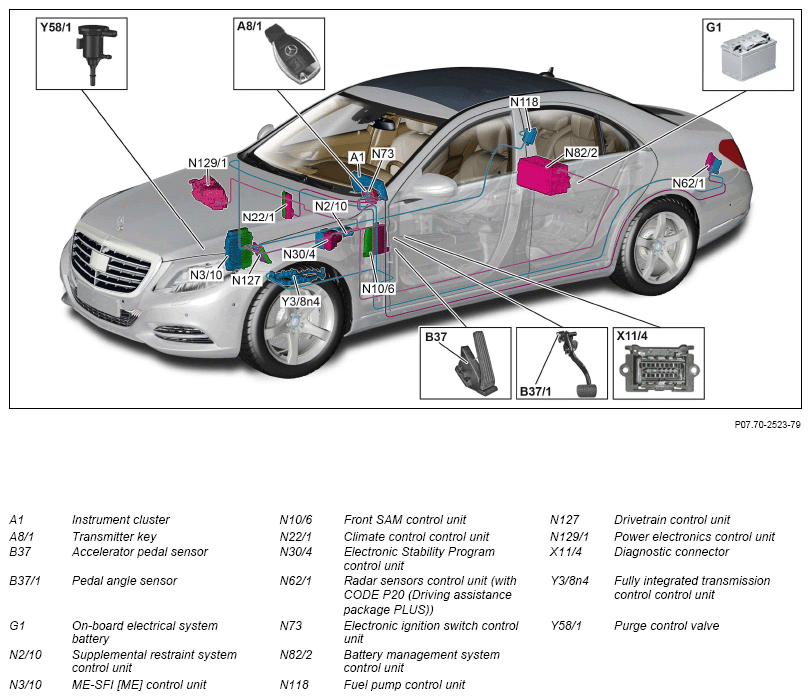

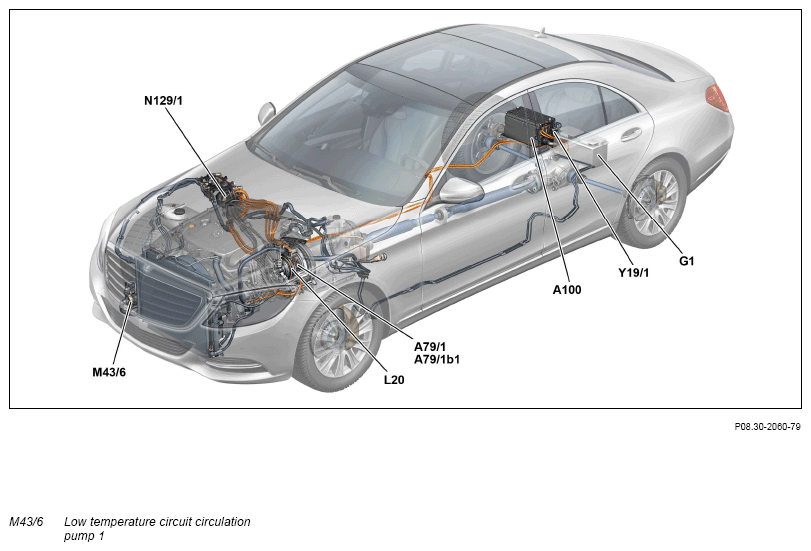

Vehicle view, model 222.0

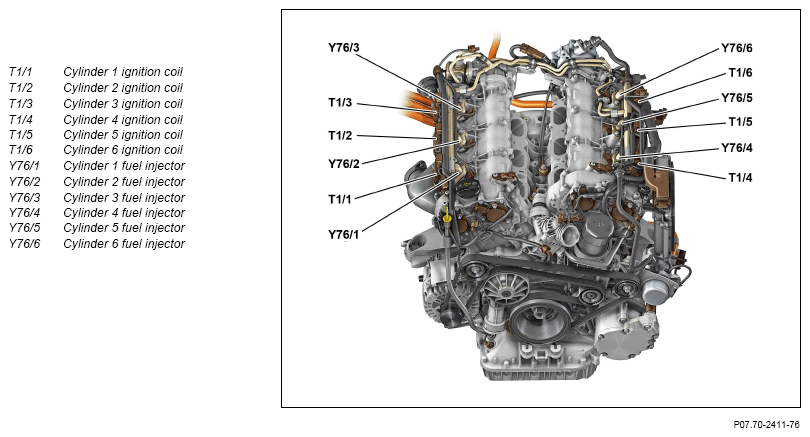

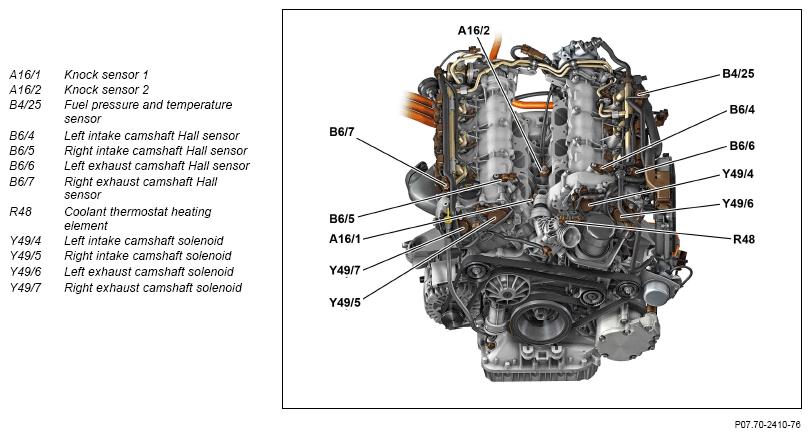

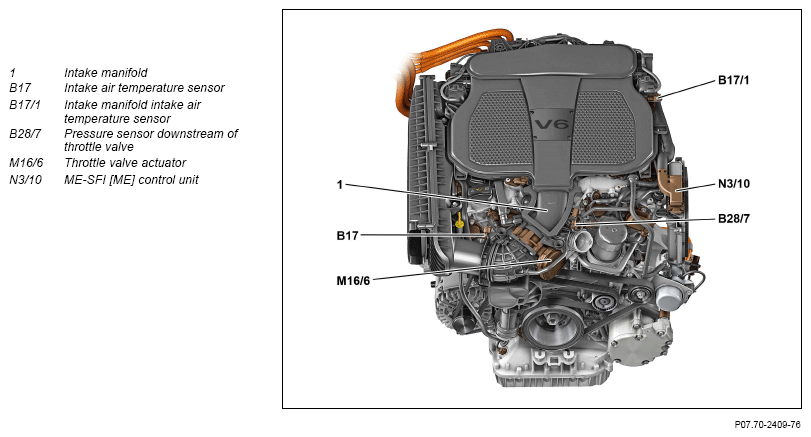

View of engine from the front top
View of engine from the front top
View of engine from the front top

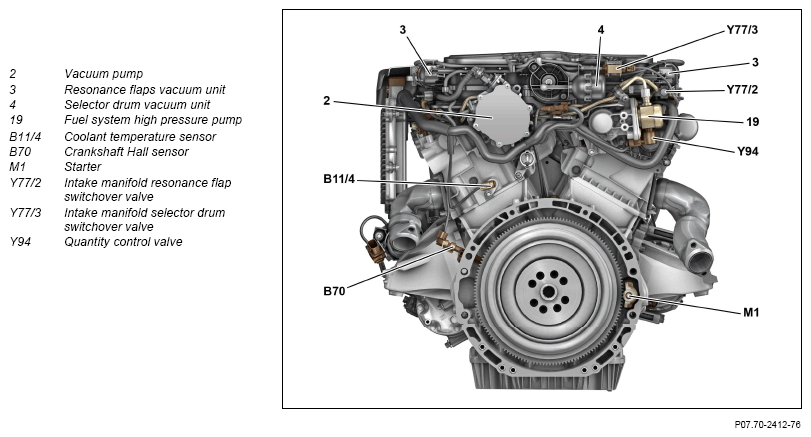

View of engine from the rear
View of engine from the below
Shown on model 222.057

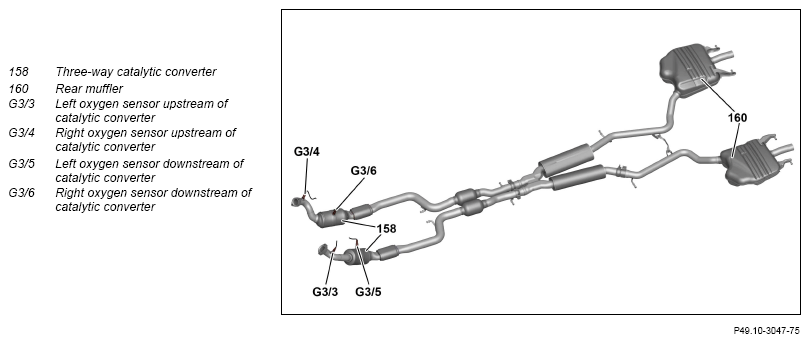

Display of exhaust system

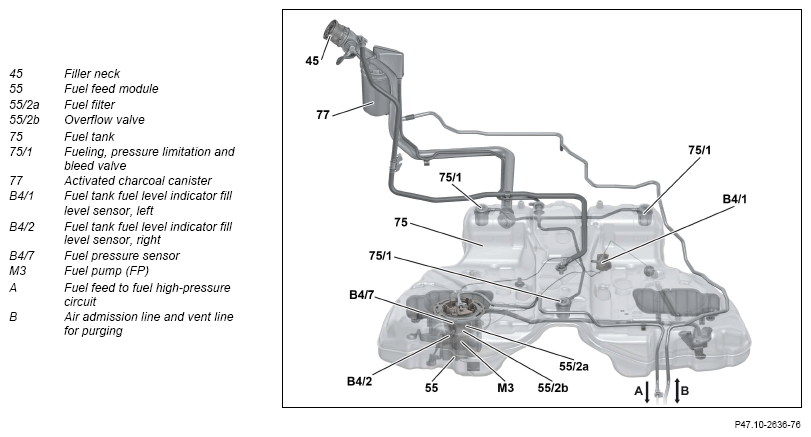

Phantom view of fuel tank

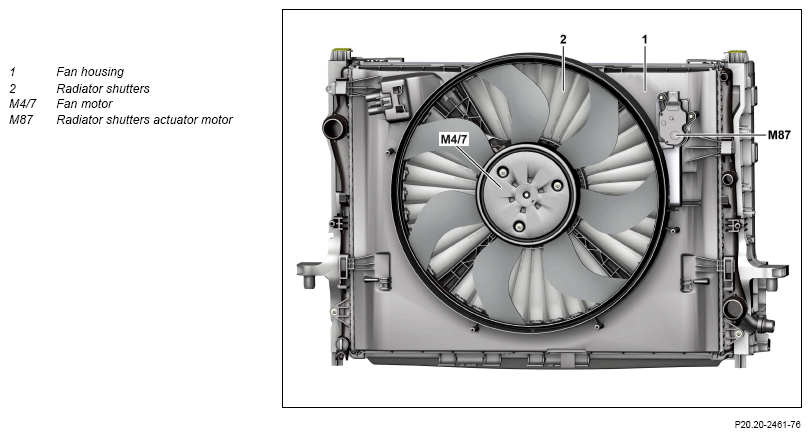

View of the radiator from the rear

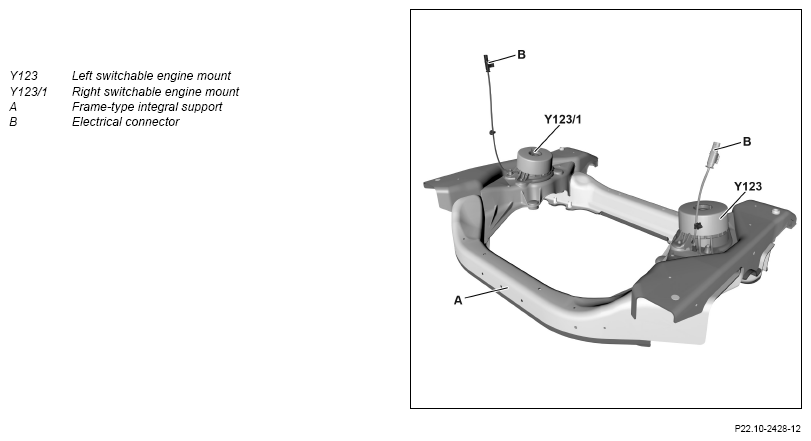

View of integral carrier

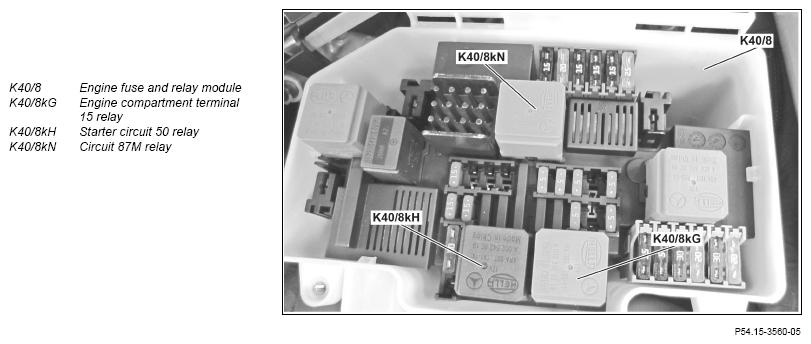

View of engine fuse and relay module in engine compartment at the rear left
| Component description for instrument cluster | Engine 276.9 in model 222 up to model year 2018 A1 |
GF54.30-P-6000LF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MMK | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250LF | |
| Component description for Electronic Stability Program control unit | Model 222.057/157 with engine 276.9 up to model year 2018 N30/4 |
GF42.45-P-5119LFH | |
| Component description for radar sensors control unit | Model 222 with engine 276.9 up to model year 2018 with code P20 (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for battery management system control unit | N82/2 | GF54.10-P-3012LFH | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MMK | |
| Drivetrain control unit, component description | N127 | GF54.21-P-2141MMK | |
| Component description for power electronics control unit | N129/1 | GF08.20-P-1001LFH | |
| Component description for fully integrated transmission control unit | Engine 276.9 in model 222 with transmission 724.2 up to model year 2018 Y38n4 |
GF27.60-P-5165LFH | |
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MMK |
