Remove/Install Engine Management Control Unit (MCM) - AR07.08-P-7013MNL
Engine 176 in model 217, 222

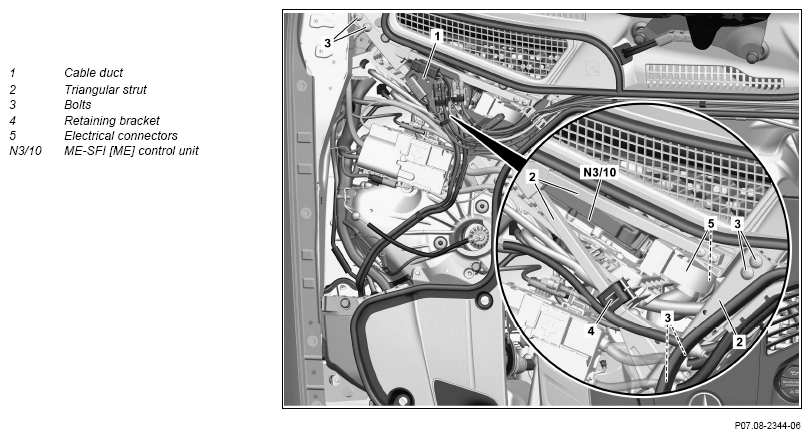

Shown on model 222
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Start control unit replacement with diagnostic system | When replacing the ME-SFI [ME] control unit (N3/10). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (at least 2 m) | ||
| 3 | Remove cover above ME-SFI [ME] control unit (N3/10) | ||
| 4 | Remove cable duct (1) from triangular strut (2) and place to one side with attached lines | ||
| 5 | Remove retaining bracket (4) | ||
| 6 | Remove screws/bolts (3) and triangular strut (2) | *BA62.25-P-1001-01B | |
| *BA62.25-P-1002-01B | |||
| 7 | Release catch tab on base module mounting of the ME-SFI [ME] control unit (N3/10) and remove ME-SFI [ME] control unit (N3/10) upward | ||
| 8 | Release and disconnect electrical connectors (5) on ME-SFI [ME] control unit (N3/10) | ||
| 9 | Reuse bracket of ME-SFI [ME] control unit (N3/10) | When replacing the ME-SFI [ME] control unit (N3/10). | |
| 10 | Install in the reverse order | ||
| 11 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Perform an engine test run and check engine for proper function |
FIREWALL
| Number | Designation | Model 217 | Model 222 | ||
|---|---|---|---|---|---|
| BA62.25-P-1001-01B | Bolt, reinforcement to firewall/longitudinal member/reinforcement, center | M6 | Nm | 9 | 9 |
| M8 | Nm | 30 | 30 | ||
FIREWALL
| Number | Designation | Model 217 | Model 222 | ||
|---|---|---|---|---|---|
| BA62.25-P-1002-01B | Bolt, reinforcement to suspension strut support | M8 | Nm | 30 | 30 |
