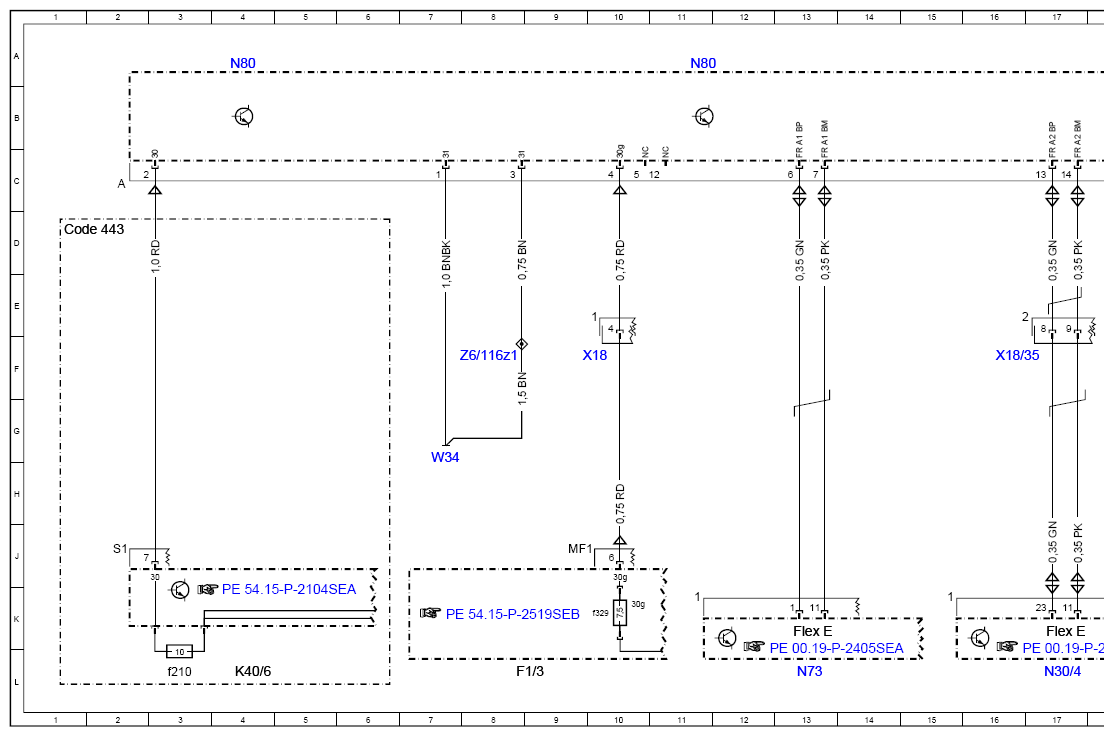

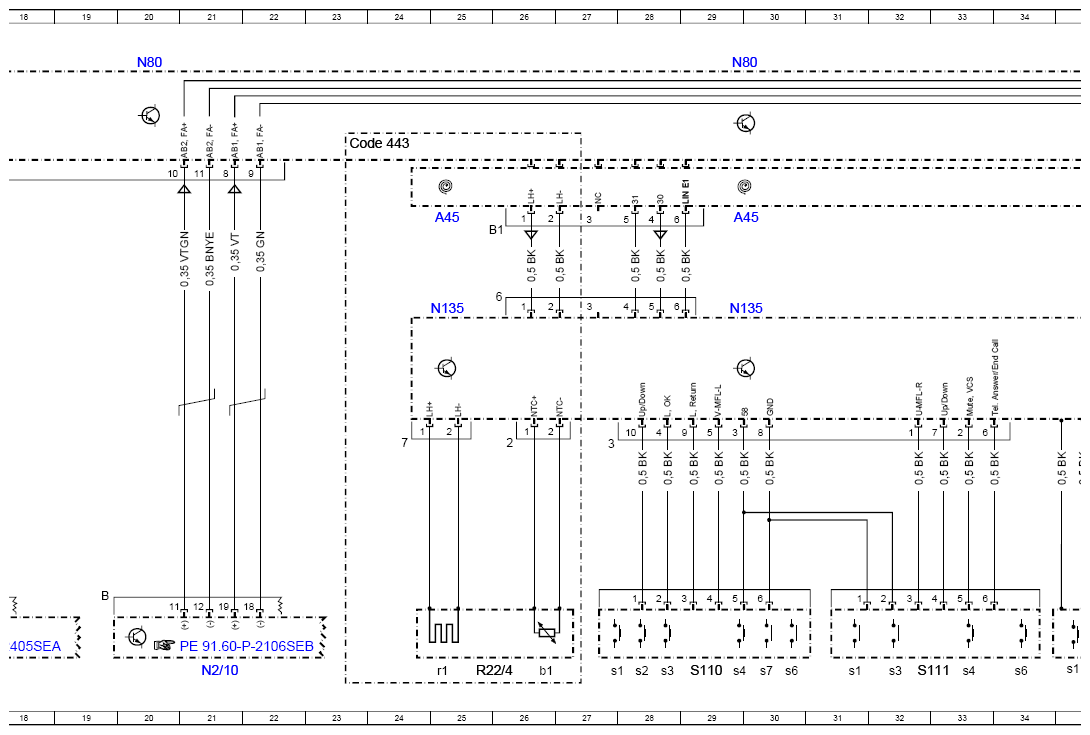

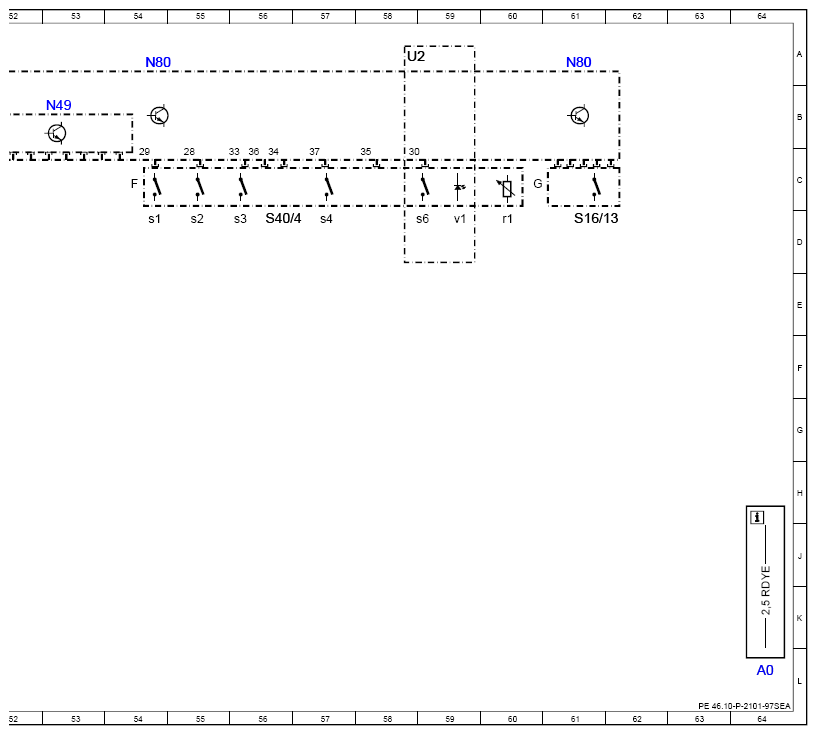

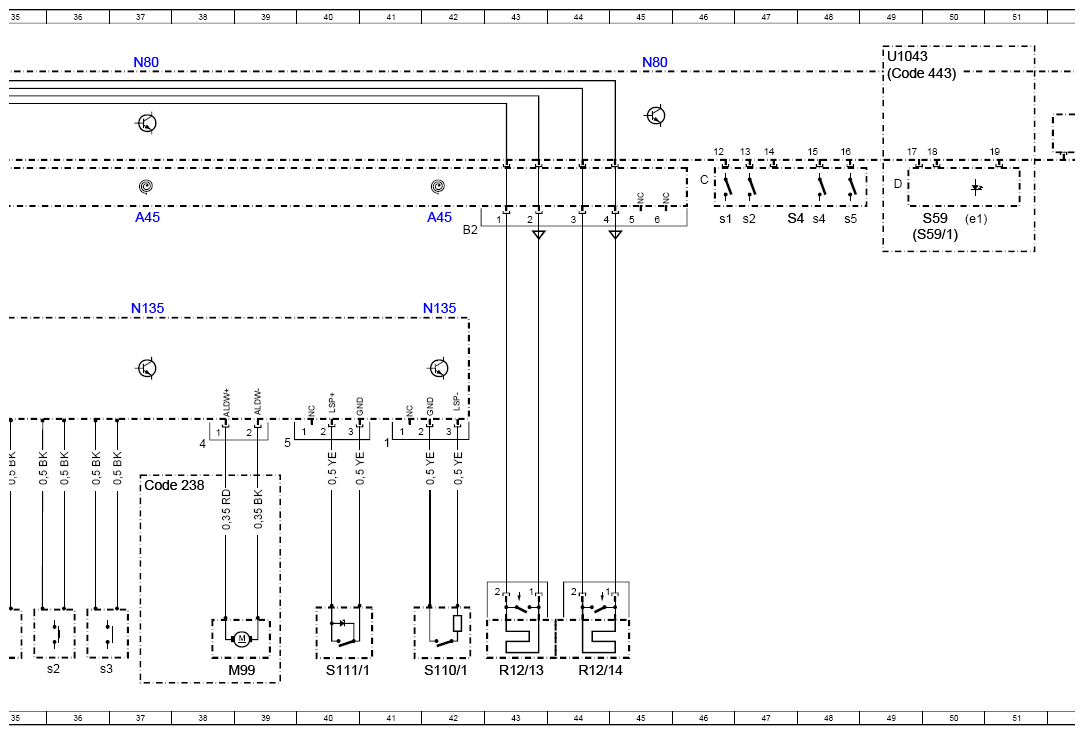

Wiring Diagram For Steering Column Module Control Unit - PE46.10-P-2101-97SEA
Model 217 up to model year 2018 Control unit N80
Model 222 up to model year 2018 Control unit N80
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A45 | Fanfare horns and airbag clock spring contact | 25D |
| A45 | Fanfare horns and airbag clock spring contact | 30D |
| A45 | Fanfare horns and airbag clock spring contact | 37D |
| A45 | Fanfare horns and airbag clock spring contact | 42D |
| Code 238 | Active Lane Keeping Assist | 37H |
| Code 443 | Steering wheel heater | 1D |
| Code 443 | Steering wheel heater | 23C |
| Code 443 | Steering wheel heater | 49A |
| F1/3 | Right A-pillar fuse box | 8L |
| F1/3f329 | Electrical fuse 329 | 10K |
| Flex E | Chassis FlexRay | 17K |
| Flex E | Chassis FlexRay | 13K |
| K40/6 | Left fuse and relay module | 4L |
| K40/6f210 | Fuse 210 | 3L |
| LIN E1 | Steering LIN | 29C |
| M99 | Steering wheel vibration motor | 39L |
| N135 | Steering wheel electronics | 25E |
| N135 | Steering wheel electronics | 29E |
| N135 | Steering wheel electronics | 37E |
| N135 | Steering wheel electronics | 42E |
| N135s1 | Left fanfare horn system button | 35L |
| N135s2 | Right fanfare horn system button | 36L |
| N135s3 | Center horns button | 36L |
| N2/10 | Supplemental restraint system control unit | 21L |
| N30/4 | Electronic Stability Program control unit | 17L |
| N49 | Steering wheel angle sensor | 53B |
| N73 | Electronic ignition switch control unit | 13L |
| N80 | Steering column module control unit | 4A |
| N80 | Steering column module control unit | 11A |
| N80 | Steering column module control unit | 20A |
| N80 | Steering column module control unit | 29A |
| N80 | Steering column module control unit | 37A |
| N80 | Steering column module control unit | 45A |
| N80 | Steering column module control unit | 54A |
| N80 | Steering column module control unit | 61A |
| R12/13 | Driver airbag squib 1 | 43L |
| R12/14 | Driver airbag squib 2 | 44L |
| R22/4 | Steering wheel heater | 25L |
| R22/4b1 | Heating element temperature sensor | 26L |
| R22/4r1 | Steering wheel heater heating element | 25L |
| S110 | Left multifunction steering wheel button group | 29L |
| S110/1 | Steering wheel downshift button | 42L |
| S110s1 | Scroll forward/back button | 27L |
| S110s2 | Voice control system OFF button | 28L |
| S110s3 | System selection button | 28L |
| S110s4 | "Back" button | 29L |
| S110s6 | OK button | 30L |
| S110s7 | Reset and "Back" button | 30L |
| S111 | Right multifunction steering wheel button group | 32L |
| S111/1 | Steering wheel upshift button | 40L |
| S111s1 | Buttons + and - for setting specific functions and volume control | 31L |
| S111s3 | Accept/terminate phone call button | 32L |
| S111s4 | Voice control system ON button | 33L |
| S111s6 | Mute function button | 34L |
| S16/13 | DIRECT SELECT lever | 61D |
| S4 | Combination switch | 47D |
| S40/4 | Cruise control lever | 56D |
| S40/4r1 | DISTRONIC control | 60D |
| S40/4s1 | Resume from memory switch | 54D |
| S40/4s2 | Decelerate and set switch | 55D |
| S40/4s3 | Accelerate and set switch | 56D |
| S40/4s4 | OFF switch | 57D |
| S40/4s6 | SPEEDTRONIC switch | 59D |
| S40/4v1 | SPEEDTRONIC light emitting diode | 59D |
| S4s1 | Turn signal lamps switch | 46D |
| S4s2 | Headlamp flasher/high beam switch | 47D |
| S4s4 | Windshield washer system switch | 48D |
| S4s5 | Wipe switch | 48D |
| S59 | Steering column adjustment switch | 50D |
| S59/1 | Steering column adjustment and steering wheel heater switch | 50D |
| S59/1e1 | Steering wheel heater indicator lamp | 50D |
| U1043 | Valid without code (443) Steering wheel heater | 49A |
| U2 | Valid for all except USA | 58A |
| W34 | Left footwell ground point | 7H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 10F |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 16F |
| Z6/116z1 | Circuit 31 connector sleeve | 8F |
