4MATIC Transfer Case, Function - GF28.10-P-1000AVI
Model 217, 222 with transmission 725.0 (except 725.096)

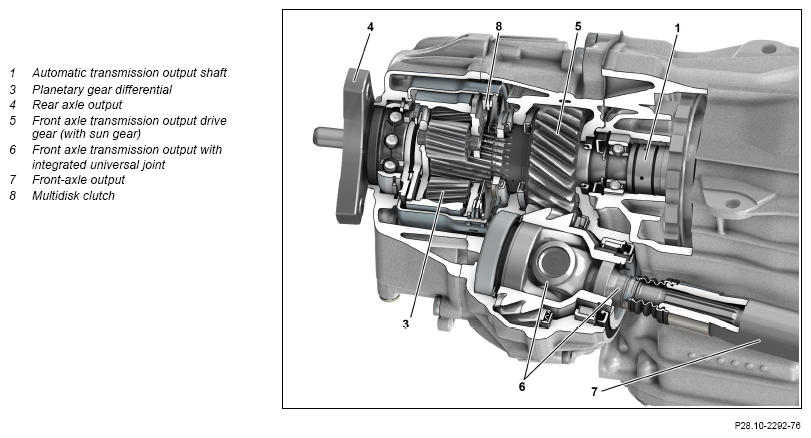

Sectional view of transfer case
4MATIC transfer case, general
The separate transfer case is fitted to the transmission housing. What makes it so special is its single-speed front axle transmission output with integrated universal joint (6). Thanks to the single-speed design, a spur gear set with bearing mount is not required. This acts positively on efficiency, weight and the noise characteristics of the drive train.
In case of defects, the transmissions (automatic transmission and transfer case) can be replaced or repaired separately. In case of repair, certain components of the transfer case can be replaced. It is not essential to replace the entire transfer case.
