Overview Of System Components, Automatically Controlled All-Wheel Drive (4MATIC) - GF28.00-P-9998AVM
Model 217, 222 with transmission 725.096

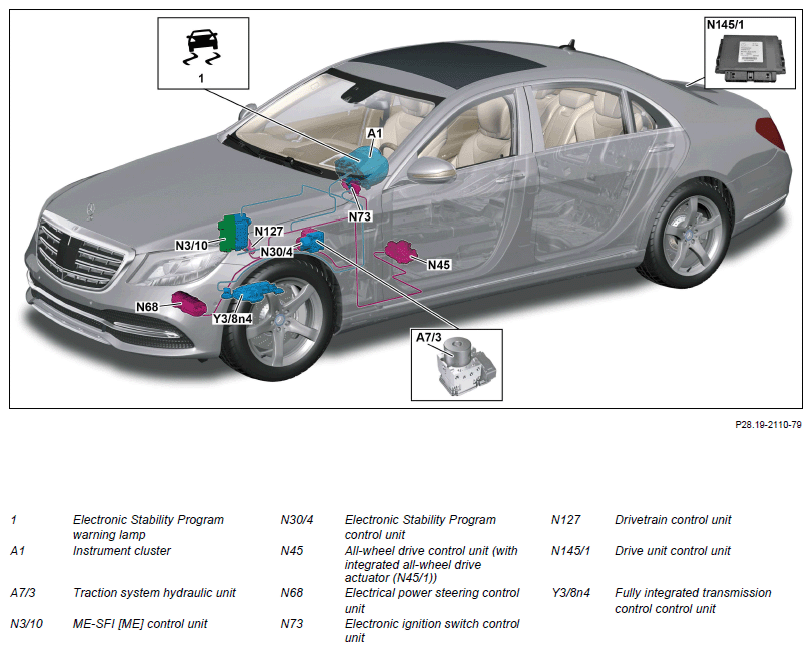

View of Model 222

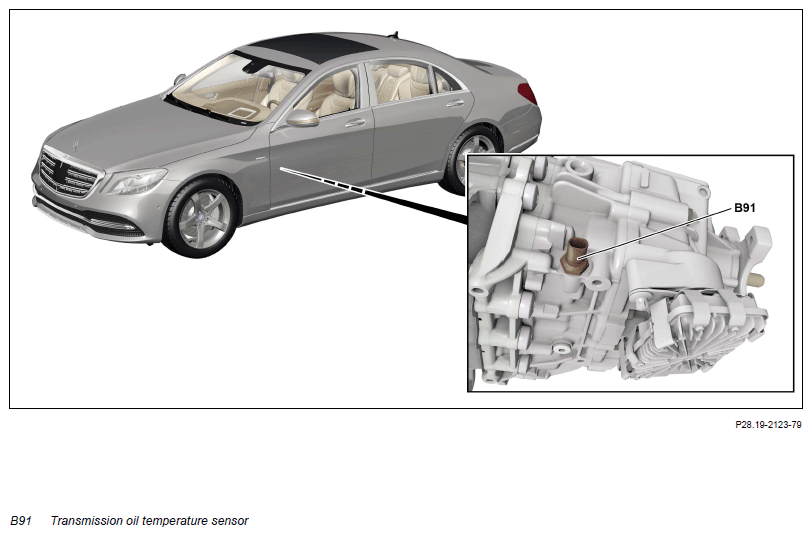

View of transfer case
| Component description for instrument cluster | Model 222 with transmission 725.096 as of model year 2018 A1 | GF54.30-P-6000LFM | |
| Component description for ME-SFI (ME) control unit | Model 217, 222 with engine 177.9 with transmission 725.096 N3/10 | GF07.61-P-6000MNL | |
| Component description for Electronic Stability Program control unit | Model 217, 222 (except 222.173) with transmission 725.096 as of model year 2018 N30/4 | GF42.45-P-5119LFM | |
| All-wheel drive control unit, component description | N45, N45/1 | GF28.19-P-3211AVM | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Drivetrain control unit, component description | Model 217, 222 with engine 177.9 with transmission 725.096 N127 | GF54.21-P-2141LF | |
| Drive unit control unit component description | N145/1 | GF27.60-P-5168ANQ | |
| Table of contents for function description, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-0999AVM |
