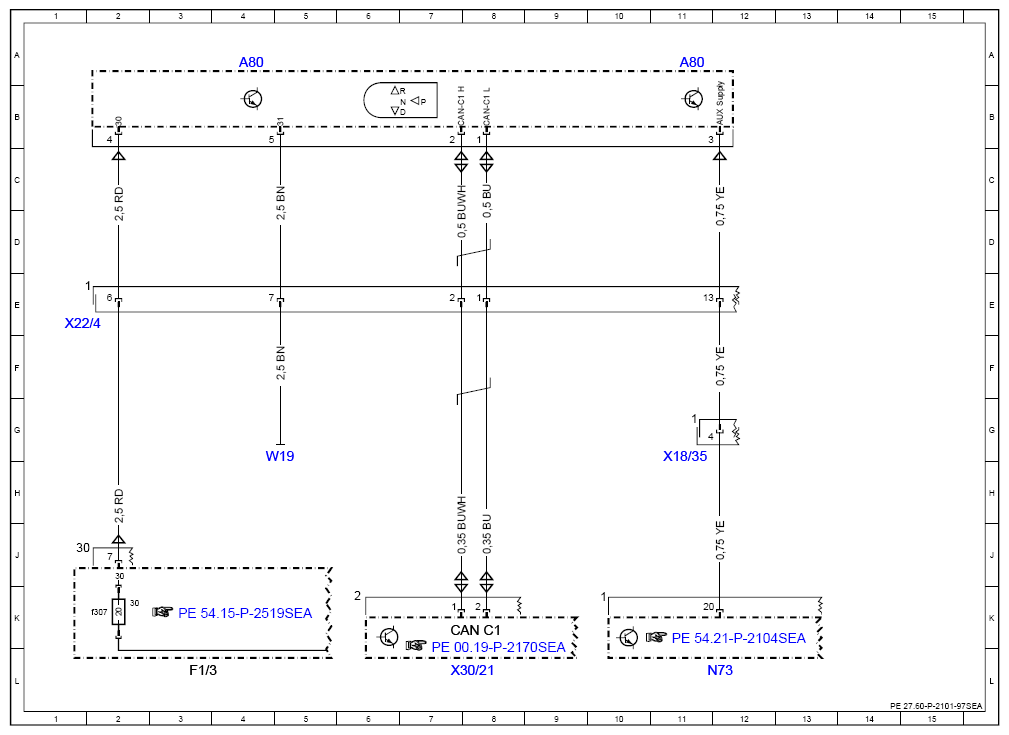

Wiring Diagram For Intelligent Servo Module (ISM) Control Unit - PE27.60-P-2101-97SEA
Transmission 722.9 in model 217 up to model year 2018 Control unit A80
Transmission 722.9 in model 222 up to model year 2018 Control unit A80
| Code: | Designation: | Position: |
|---|---|---|
| A80 | Intelligent servo module for DIRECT SELECT | 4A |
| A80 | Intelligent servo module for DIRECT SELECT | 11A |
| CAN C1 | Drive train CAN | 8K |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f307 | Fuse 307 | 2K |
| N73 | Electronic ignition switch control unit | 12L |
| W19 | Right front seat crossmember ground point | 5H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 11H |
| X22/4 | Transmission/frame floor assembly connecting point | 1E |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 7L |
