4MATIC Transfer Case, Function - GF28.10-P-1000AVM
Model 217, 222 with transmission 725.096

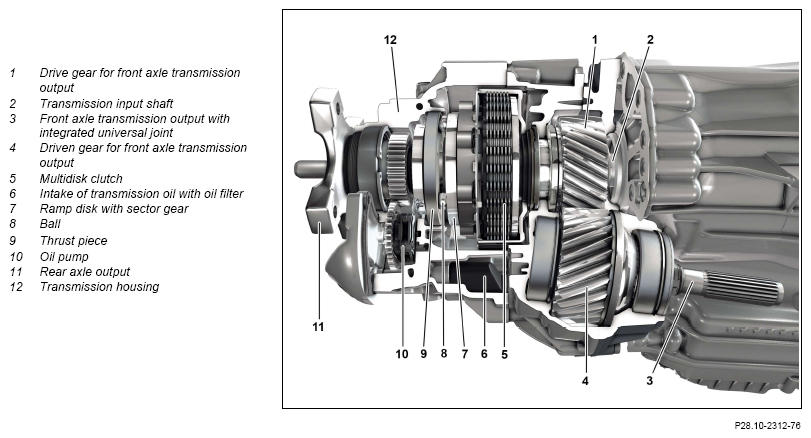

Sectional view of transfer case
4MATIC transfer case, general
The separate transfer case is fitted to the transmission housing. What makes it so special is its single-speed front axle transmission output with integrated universal joint (3). Thanks to the single-speed design, a spur gear set with bearing mount is not required. This acts positively on efficiency, weight and the noise characteristics of the drive train.
In the event of malfunctions, the entire transfer case must be replaced.
