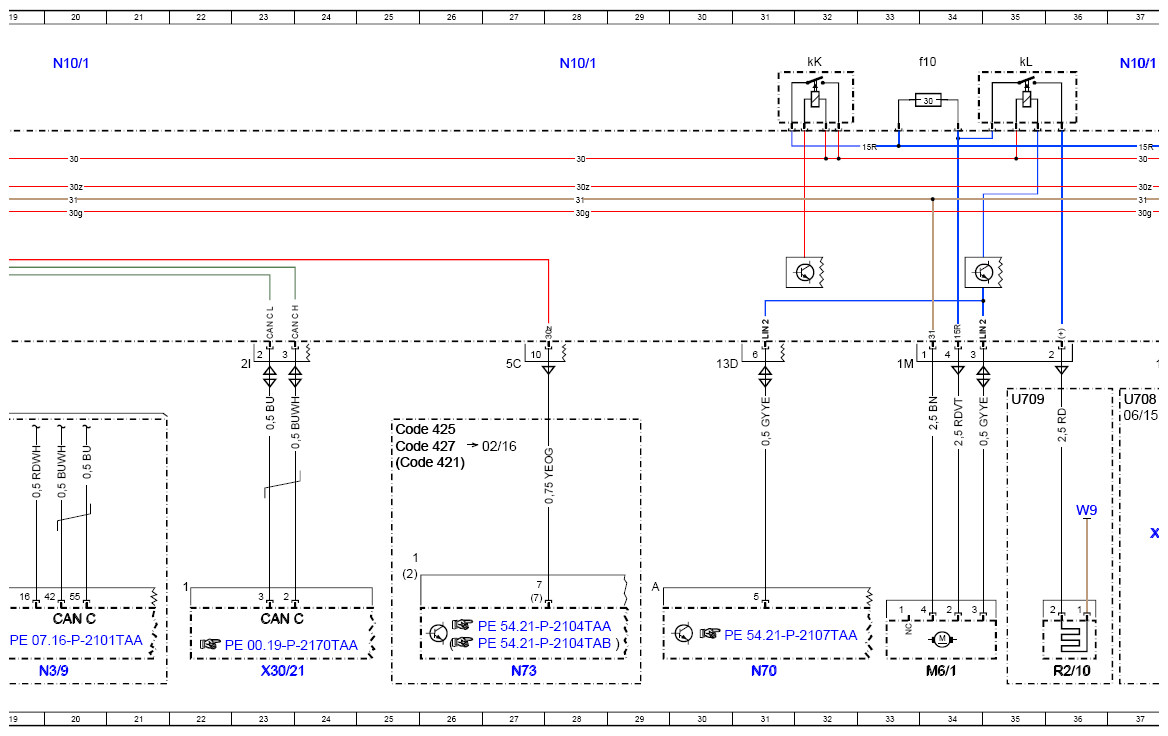

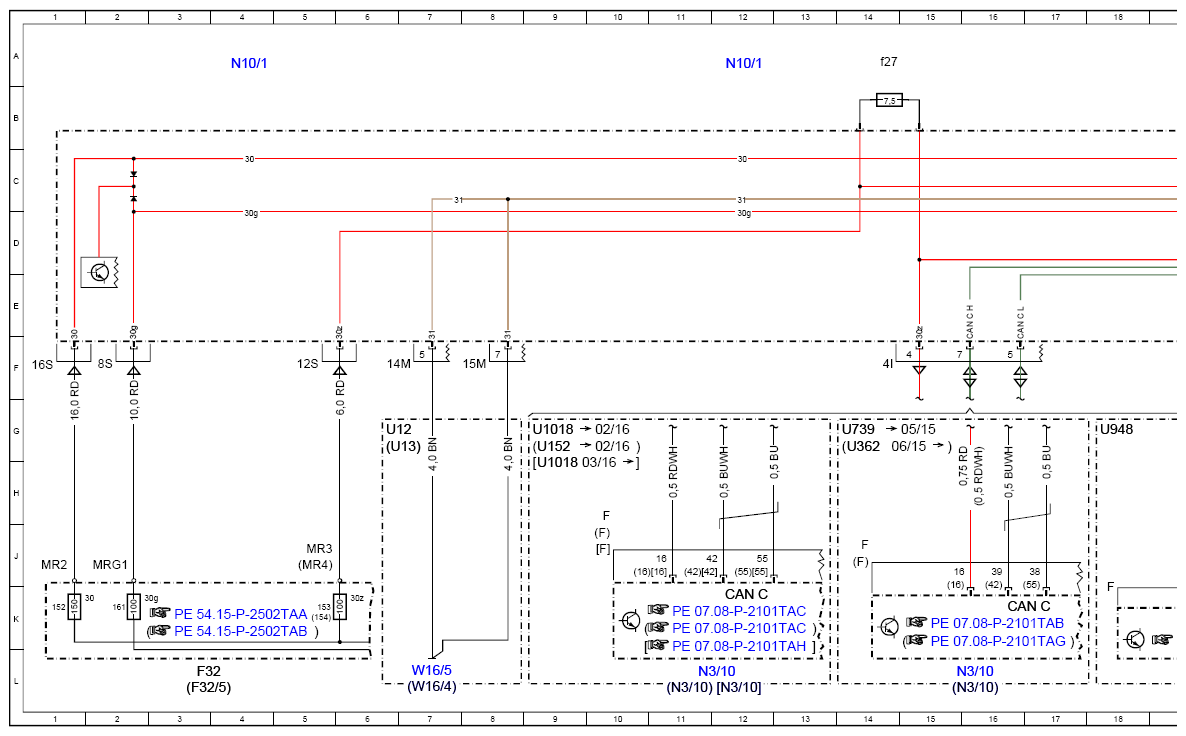

Wiring Diagram Of Front SAM Control Unit With Fuse And Relay Module (N10/1) - PE54.21-P-2106-97TAA
Model 172.4
Specification 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| CAN C | Drive train CAN | 16K |
| CAN C | Drive train CAN | 20K |
| CAN C | Drive train CAN | 23K |
| CAN C | Drive train CAN | 12K |
| Code 421 | 9G-TRONIC | 25H |
| Code 425 | 6-speed manual transmission | 25G |
| Code 427 | 7G-TRONIC | 25G |
| F32 | Front pre-fuse | 3L |
| F32/5 | Pre-fuse box without ECO start/stop function | 3L |
| F32/5f154 | Pre-fuse 154 | 5K |
| F32f152 | Pre-fuse 152 | 1K |
| F32f153 | Pre-fuse 153 | 5K |
| F32f161 | Pre-fuse 161 | 2K |
| LIN 2 | Wiper/inside rearview mirror LIN | 31F |
| LIN 2 | Wiper/inside rearview mirror LIN | 35F |
| M6/1 | Wiper motor | 34L |
| N10/1 | Front SAM control unit with fuse and relay module | 4A |
| N10/1 | Front SAM control unit with fuse and relay module | 12A |
| N10/1 | Front SAM control unit with fuse and relay module | 20A |
| N10/1 | Front SAM control unit with fuse and relay module | 28A |
| N10/1 | Front SAM control unit with fuse and relay module | 37A |
| N10/1f10 | Fuse 10 | 34A |
| N10/1f27 | Fuse 27 | 14A |
| N10/1kK | Circuit 15R relay | 32A |
| N10/1kL | Backup relay | 35A |
| N3/10 | ME-SFI [ME] control unit | 11L |
| N3/10 | ME-SFI [ME] control unit | 11L |
| N3/10 | ME-SFI [ME] control unit | 12L |
| N3/10 | ME-SFI [ME] control unit | 16L |
| N3/10 | ME-SFI [ME] control unit | 16L |
| N3/9 | CDI control unit | 20L |
| N70 | Overhead control panel control unit | 31L |
| N73 | Electronic ignition switch control unit | 27L |
| R2/10 | Wiper park heater | 36L |
| R2/11 | Spray nozzle hose heater | 38L |
| U1018 | Valid for gasoline engine 276 | 9H |
| U1018 | Valid for gasoline engine 276 | 9G |
| U12 | Valid for left-hand drive vehicles | 6G |
| U13 | Valid for right-hand drive vehicles | 6G |
| U152 | Valid for gasoline engine 152 | 9G |
| U362 | Valid for gasoline engine 274 | 14G |
| U708 | Valid for spray nozzle hose heater | 37G |
| U709 | Valid for wiper park position heater | 35G |
| U739 | Valid for gasoline engine 271 DE | 14G |
| U948 | Valid for diesel engine 651 | 18G |
| W16/4 | Right major assembly compartment ground point | 7L |
| W16/5 | Left major assembly compartment electronics ground point | 7L |
| W16/5 | Left major assembly compartment electronics ground point | 39L |
| W9 | Left front ground point (at lamp unit) | 36H |
| X30/21 | Drive train CAN voltage distributor electrical connector | 23L |
| X88/11 | Spray nozzle heater electrical connector | 38J |
