Component Description For DISTRONIC Electric Controller Unit - GF30.30-P-3213RDA

Model 172.4

as of model year 2016

with code 239 (Active Distance Assist DISTRONIC)

Show on model 172.4

Location

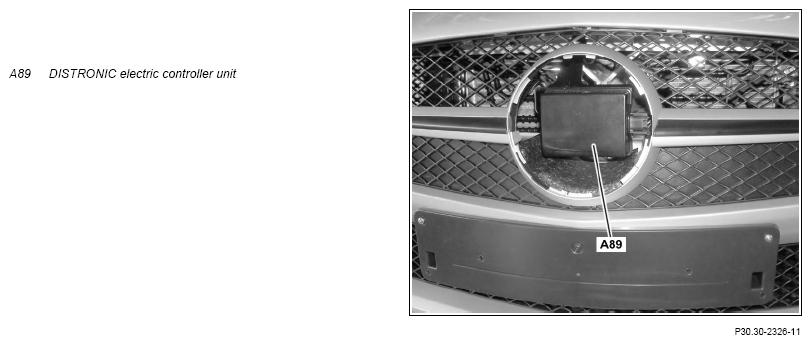

The DISTRONIC controller unit is located in the middle of the radiator.

Tasks

The DISTRONIC controller unit assesses the traffic situation ahead of the vehicle through evaluation of the data from the integral long range radar. The detected data serve to implement the following functions:

• CRUISE CONTROL
• Variable SPEEDTRONIC (except code 494 (USA version))
• Permanent limiter
• DISTRONIC PLUS
• Distance warning
• Adaptive brake assistant

The DISTRONIC controller unit compares the permanent target and actual values with each other and evaluates the respective driver requirements. In order to implement the automatic clearance and speed control, the DISTRONIC controller unit transmits the respective requests for acceleration, deceleration and switching from 01.03.2016 via the chassis CAN E1 (CAN E1) and up to 29.02.2016 via chassis CAN (CAN E) after evaluation of all input factors.

This means that the DISTRONIC controller unit has the following tasks:

• Reading in input factors
• Evaluation of input factors
• Transmission of initial parameters

Reading in input factors

Amongst other things, the DISTRONIC controller unit receives the following input signals from 01.03.2016 via chassis CAN E1 (CAN E1) and up to 29.02.2016 via chassis CAN (CAN E):

• Operating condition for engine/drivetrain
• Gear range engaged
• Parking brake status
• Engine drive torque
• Braking torque
• Acceleration/yaw rate
• Driver request through the cruise control lever (S40/4)
• Driver request to overtake through setting the turn signal
• Vehicle speed/acceleration
• Steering wheel angle
• Brake pedal position
• Accelerator pedal position

The resulting functions are described in the respective function descriptions (see also block diagram or function schematic).

Evaluation of input factors

The input factors are evaluated by the microprocessor and the corresponding assembly parts are actuated.

Transmission of initial parameters

Amongst other things, the DISTRONIC controller unit transmits the following initial parameters from 01.03.2016 via chassis CAN E1 (CAN E1) and up to 29.02.2016 via chassis CAN (CAN E):

• System status of DISTRONIC PLUS
• Object information
• Request to increase/reduce engine torque
• Request to increase/limit gear range
• Request to increase/reduce braking torque
• Request to emit warning tones, system or warning messages
• Requests to introduce PRE-SAFE® measures (with CODE 299 (PRE-SAFE® system))

The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Body

The DTR controller unit contains the following assembly parts:

• Long range radar
• Control unit

Properties of the long range radar:

• Detection range:
• s < 30 m for a detection angle of ∠ = 30°
• s = 30 up to 100 m at a detection angle of ∠ = 20°
• s = 100 up to 200 m for a detection angle of ∠ = 12°

• Carrier frequency: 77 GHz (in accordance with the "Pulse Doppler Principle" for independent measurement of distance and speed)

The DISTRONIC controller unit must be newly adjusted after exchange (e.g. after an accident repair) using the integrated "service adjustment mode".

Wiring diagram for DISTRONIC (DTR) control unit

PE30.30-P-2101-97TAB
