Start, Post-Start Phase And Warm-Up Enrichment, Function - GF07.10-P-1007MMX

ENGINE 276.8 in MODEL 166

as of model year 2016

ENGINE 276.8 in MODEL 292

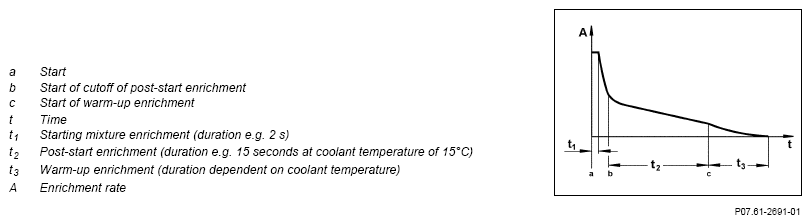

Enrichment rate/time diagram

Courtesy of MERCEDES-BENZ USA

Function requirements for starting, the post-start phase and warm-up enrichment, general points

• Circuit 87M (engine management ON)
• Engine runs

Start phase, post-start phase and warm-up enrichment, general

To ensure stable and smooth engine running during a cold start, the ME-SFI [ME] control unit (N3/10) enriches the fuel/air mixture.

Function sequence for start phase, post-start phase and warm-up enrichment

The function sequence is divided into the following subfunctions:

• Function sequence for starting mixture enrichment
• Function sequence for post-start enrichment
• Function sequence for warm-up enrichment

Function sequence for starting mixture enrichment

To allow easier starting when the engine is cold, more fuel has to be injected during the starting procedure.

For the starting mixture enrichment, the ME-SFI [ME] control unit computes the injection period based on the following sensors and signals:

• Coolant temperature sensor (B11/4), coolant temperature
• Crankshaft Hall sensor (B70), engine rpm
• On-board electrical system battery voltage (G1) over "circuit 30"
• Electronic ignition lock control unit (N73), "circuit 50 signal" via chassis CAN 1 (CAN E1)
• Engine off time

When it receives the "circuit 50 signal" from the electronic ignition lock control unit via chassis CAN 1, the ME-SFI [ME] control unit increases the injection duration of the fuel injectors (Y76).

Starting mixture enrichment remains active until the engine speed dependent on the particular coolant temperature is exceeded. The higher the coolant temperature, the shorter the injection period calculated by the ME-SFI [ME] control unit.

The injection period is also dependent on the battery voltage. In order to guarantee the start quantity for a lower battery voltage, the ME-SFI [ME] control unit extends the injection period.

No further engine start is possible below an battery voltage of approx. 7 V.

Function sequence for post-start enrichment

After a cold start the fuel/air mixture is enriched for a short time to ensure that the engine runs smoothly. Fuel condensing in the cold cylinder barrels is compensated for by the post-start enrichment. For the post-start enrichment, the ME-SFI [ME] control unit computes the injection period based on the following sensors and signals:

• Coolant temperature sensor, coolant temperature when starting
• Combustion cycles after start
• Fully integrated transmission control unit (Y3/8n4), gear range via drive train CAN (CAN C)
• Correction programming using Xentry diagnostics

An additional fuel quantity is added to the engine by the ME-SFI [ME] control unit in line with the characteristics map. To do this, the ME-SFI [ME] control unit extends the injection period of the fuel injectors.

Function sequence for warm-up enrichment

Following start and post-start enrichment, the fuel/air mixture undergoes further enrichment by means of warm-up enrichment. The warm-up enrichment compensates for fuel which condenses on the still cold cylinder barrel.

For the warm-up enrichment, the ME-SFI [ME] control unit computes the injection period based on the following sensors and signals:

• Left and right intake camshaft hall sensors (B6/4, B6/5), intake camshaft positions
• Left and right exhaust camshaft hall sensors (B6/6, B6/7), exhaust camshaft positions
• Coolant temperature sensor, coolant temperature
• Charge air temperature sensor (B17/8)
• Pressure sensor downstream of throttle valve (B28/7), engine load
• Crankshaft Hall sensor, engine speed
• Correction programming using Xentry diagnostics

An additional fuel quantity is added to the engine by the ME-SFI [ME] control unit in line with the characteristics map. To do this, the ME-SFI [ME] control unit extends the injection period of the fuel injectors.

The ignition angles of the ignition coils (T1) during warm-up are determined according to a specific characteristics map.

The left and right intake camshaft solenoids (Y49/4, Y49/5) and the left and right exhaust camshaft solenoids (Y496, Y497) determine the exhaust gas recirculation rate due to the valve overlap. As the hot exhaust gases heat up the combustion chambers, fuel evaporation is increased and fuel enrichment can be reduced.

In the idle speed range, injection period is mainly dependent on the coolant temperature at engine start.

For partial load, the crucial factor is the engine load.

Once enabled, the lambda control monitors the injection period.

	Electrical function schematic for start phase, post-start phase and warm-up enrichment		PE07.10-P-2707-97NBA
	Overview of system components for gasoline injection and ignition system with direct injection	ENGINE 276.8 in MODEL 166 (except 166.063) as of model year 2016	GF07.70-P-9998MMX
		ENGINE 276.8 in MODEL 166.063 as of model year 2016	GF07.70-P-9998MMM
