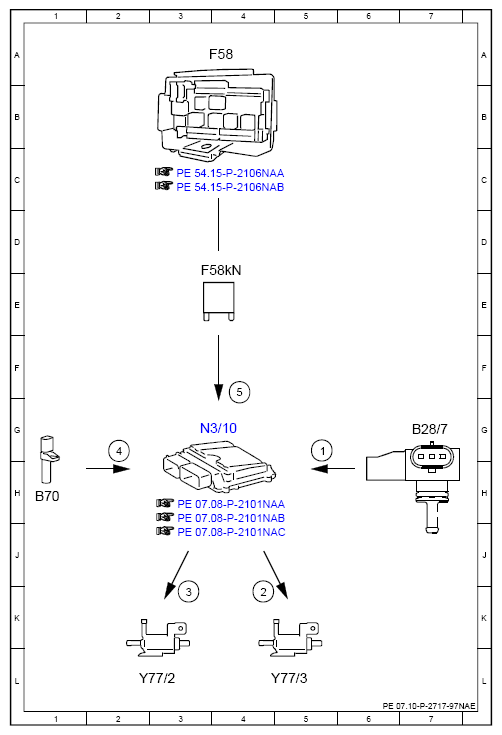

(Electrical Function Schematic For Intake Manifold Switchover - PE07.10-P-2717-97NAE)
ENGINE 276 in MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 5G |
| 2 | Selector drum switchover valve, actuation | 4K |
| 3 | Resonance flap switchover valve, actuation | 3K |
| 4 | Engine speed, signal | 2G |
| 5 | Circuit 87, status | 4F |
| B28/7 | Pressure sensor downstream of throttle valve | 7G |
| B70 | Crankshaft Hall sensor | 1H |
| F58 | Engine compartment fuse and relay module | 4A |
| F58kN | Circuit 87M relay | 4E |
| N3/10 | ME-SFI [ME] control unit | 3G |
| Y77/2 | Intake manifold resonance flap switchover valve | 2L |
| Y77/3 | Intake manifold selector drum switchover valve | 4L |
