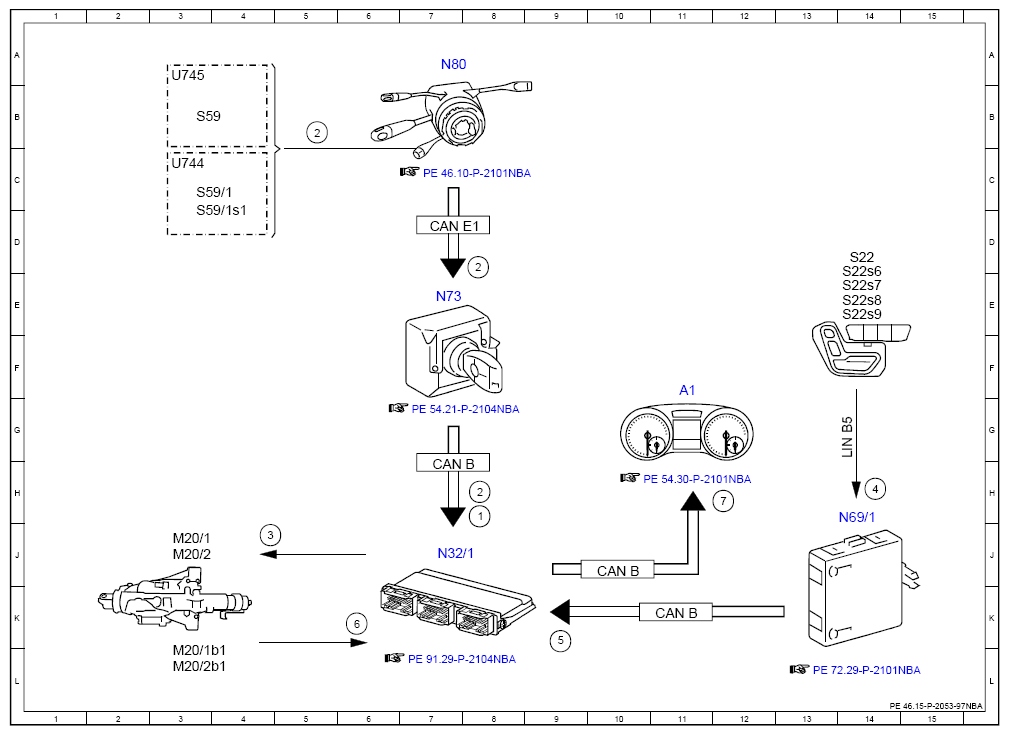

Electrical Function Schematic For Steering Column Adjustment - PE46.15-P-2053-97NBA
Model 166 as of model year 2016 with code 275 (Memory Package (drivers seat
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8H |
| 2 | Steering column adjustment switch, status | 5B |
| 2 | Steering column adjustment switch, status | 8D |
| 2 | Steering column adjustment switch, status | 8H |
| 3 | Steering column adjustment motor, actuation | 4J |
| 4 | Seat adjustment switch group, status | 14H |
| 5 | Store/call up steering column adjustment motor position, request | 9K |
| 6 | Hall sensors, signal | 6K |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 12H |
| A1 | Instrument cluster | 11F |
| CAN B | Interior CAN | 7H |
| CAN B | Interior CAN | 11K |
| CAN B | Interior CAN | 10J |
| CAN E1 | Chassis CAN 1 | 7D |
| LIN B5 | Left front door LIN | 14G |
| M20/1 | Steering column in/out adjustment motor | 3J |
| M20/1b1 | Steering column in/out Hall sensor | 3L |
| M20/2 | Steering column up/down adjustment motor | 3J |
| M20/2b1 | Steering column up/down Hall sensor | 3L |
| N32/1 | Driver seat Control unit | 7J |
| N69/1 | Left front door Control unit | 14H |
| N73 | Electronic ignition switch Control unit | 7E |
| N80 | Steering column module Control unit | 7A |
| S22 | Left front seat adjustment switch group | 14D |
| S22s6 | Left front memory function switch | 14E |
| S22s7 | Left front memory 1 switch | 14E |
| S22s8 | Left front memory 2 switch | 14E |
| S22s9 | Left front memory 3 switch | 14E |
| S59 | Steering column adjustment switch | 3B |
| S59/1 | Steering column adjustment and steering wheel heater switch | 3C |
| S59/1s1 | Steering column adjustment switch | 3D |
| U744 | Valid for steering wheel heater | 3C |
| U745 | Not valid for steering wheel heater | 3A |
