Rear Entertainment System Controller Unit, Component Description - GF82.90-P-4021LFM
Model 222 as of model year 2018 with code 864 (Rear compartment entertainment package)
Shown on model 222.0, except code 224 (Design individual rear seat system)

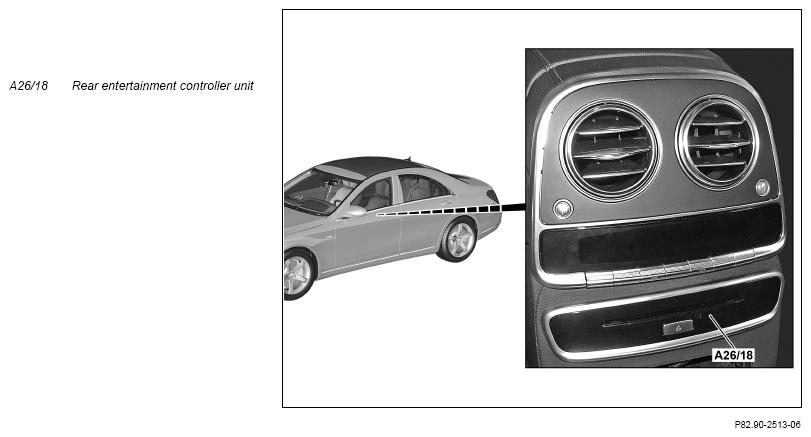

Location
In vehicles with code 224 (Design individual rear seat system), the Rear Seat Entertainment system controller unit is located under the rear shelf behind a flap.
In vehicles except code 224 (Design individual rear seat system), the Rear Seat Entertainment system controller unit is freely accessible between the seats in the front and the seats in the rear above the propeller shaft tunnel.
Tasks
The Rear Seat Entertainment System controller unit does the following:
- Central control unit for Rear Seat Entertainment system
- Receive signals
- Processing signals
- Transmitting signals
Central control unit for Rear Seat Entertainment system
The Rear Seat Entertainment system controller unit can realize the following applications:
- Playing, searching for and managing media: Integrated rear Blu-ray drive, rear multimedia connection unit (rear USB connector 1 (A90/6x1), rear USB connector 2 (A90/6x2) for USB mass storage devices, e.g. USB sticks, and the rear HDMI connection (A90/6x3)), head unit media sources (A26/17))
- Extended navigation mode functions: "Drive Show" (automated picture sequence with information on current route); Mercedes-Benz "Google Maps" online service with option of forwarding routes directly to the head unit navigation processor; access options to the Mercedes-Benz "Travelguide" (accessories)
- Internet
- Comfort functions for seats in rear (equipment-specific)
Receive signals
- Direct lines
- Media Oriented System Transport (MOST)
Direct lines
- Circuit 30t and circuit 31 voltage supply
- Electrical wake-up for MOST
- Rear USB connector 1
- Rear USB connector 2
- Rear HDMI connection
Media Oriented System Transport (MOST)
The Rear Seat Entertainment system controller unit is a MOST subscriber. The Rear Seat Entertainment system controller unit receives control communication with the left rear display (A40/5) and the right rear display (A40/6) and, depending on requirement, audio, video and Internet signals, from the head unit as the gateway to the telematics CAN (CAN A).
Processing signals
The audio and picture signals form the available media sources are processed, and, where necessary converted, and prepared for output.
Transmitting signals
- Direct lines
- Integrated Kleer® radio interfaces
- MOST
Direct lines
- HSVL line (High-Speed Video Link) for digital audio and video signals to the left rear display or right rear display
- Voltage supply and control signals to USB connector 1 and USB connector 2
Integrated Kleer® radio interfaces
- Audio signal to radio frequency headphones (H8/3)
MOST
The Rear Seat Entertainment system controller unit transmits e.g. the following signals via MOST to the head unit:
- Audio, video and Internet signals on request in the telematics network
- Control communication for the left rear display and the right rear display (gateway to telematics CAN)
- Seat adjustments (comfort functions, equipment-specific) for seats in rear (gateway to user interface CAN (CAN HMI))
Structure
The Rear Seat Entertainment system controller unit is equipped with 2 integrated Kleer® radio interfaces as well as an integrated Blu-ray drive.
The Blu-ray drive is a single-slot drive. In addition to Blu-ray video, DVD video and audio media, it can also play CD audio media and MP3 files. Media with currently common copy protection mechanisms as well as recorded Blu-ray, DVD and CD blanks can also be played. The Blu-ray drive has the "Disc Auto Detect" function.
Variants
The Rear Seat Entertainment system controller unit is installed in the following 2 design variants:
- With CODE 224 (Design individual rear seat system)
- Except CODE 224 (Design individual rear seat system)
| Rear Seat Entertainment system control unit wiring diagram | A26/18 | PE82.90-P-2103-97SEB |
