Electrical Function Diagram For Navigation Mode (COMAND), Function - PE82.85-P-2063-97SEA
Model 222 up to model year 2018
| Code: | Designation: | Position: |
|---|---|---|
| 1 | GPS, signal | 18H |
| 1 | GPS, signal | 25K |
| 10 | FM antenna, signal | 19D |
| 10 | FM antenna, signal | 18D |
| 10 | FM antenna, signal | 23C |
| 10 | FM antenna, signal | 23B |
| 11 | DAB band III, signal | 17H |
| 11 | DAB band III, signal | 9L |
| 11 | DAB band III, signal | 9K |
| 11 | DAB band III, signal | 13L |
| 11 | DAB band III, signal | 13K |
| 12 | RTTD signal | 17L |
| 12 | RTTD signal | 17H |
| 13 | Traffic data, signal | 17D |
| 13 | Traffic data, signal | 16D |
| 13 | Traffic data, signal | 43E |
| 13 | Traffic data, signal | 41F |
| 13 | Traffic data, signal | 43G |
| 13 | Traffic data, signal | 43B |
| 13 | Traffic data, signal | 41C |
| 13 | Traffic data, signal | 43C |
| 13 | Traffic data, signal | 43J |
| 13 | Traffic data, signal | 41K |
| 13 | Traffic data, signal | 43K |
| 14 | Position data, signal | 16C |
| 14 | Position data, signal | 37C |
| 14 | Position data, signal | 42C |
| 14 | Position data, signal | 44B |
| 14 | Position data, signal | 44C |
| 14 | Position data, signal | 44E |
| 14 | Position data, signal | 42F |
| 14 | Position data, signal | 44G |
| 14 | Position data, signal | 44J |
| 14 | Position data, signal | 41K |
| 14 | Position data, signal | 44L |
| 15 | Vehicle Information and Communication System (VICS), signal | 19G |
| 15 | Vehicle Information and Communication System (VICS), signal | 33H |
| 16 | Map data, signal | 8H |
| 2 | Wheel speed, signal | 10C |
| 2 | Wheel speed, signal | 16D |
| 3 | Wheel rotation direction, signal | 10C |
| 3 | Wheel rotation direction, signal | 15D |
| 4 | Operation, signal | 18H |
| 4 | Operation, signal | 16G |
| 4 | Operation, signal | 20F |
| 4 | Operation, signal | 27G |
| 4 | Operation, signal | 27E |
| 4 | Operation, signal | 33L |
| 5 | Voice input, signal | 19G |
| 6 | Multifunction steering wheel button group, signal | 12D |
| 6 | Multifunction steering wheel button group, signal | 15F |
| 6 | Multifunction steering wheel button group, signal | 2B |
| 6 | Multifunction steering wheel button group, signal | 4B |
| 6 | Multifunction steering wheel button group, signal | 10B |
| 7 | Switch-on request, signal | 24E |
| 8 | Audio/COMAND display, actuation | 24D |
| 9 | Sound system amplifier, actuation | 8G |
| A1 | Instrument cluster | 11E |

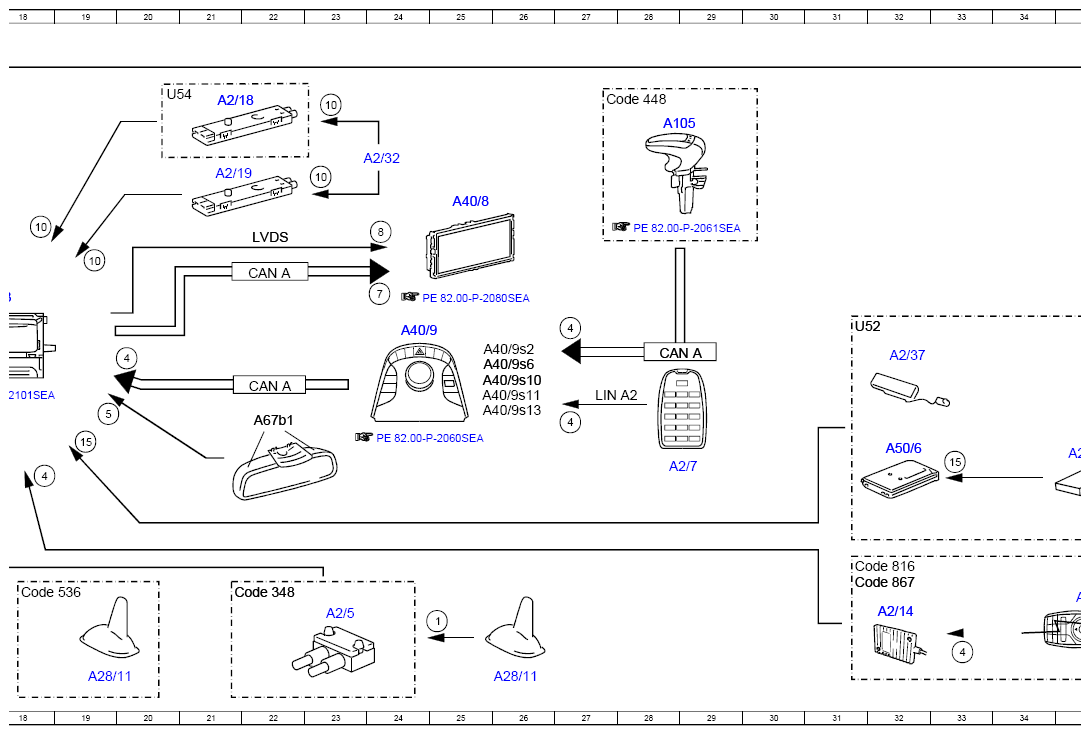

| A105 | Touchpad | 28B |
| A2/109 | - | 42J |
| A2/14 | Headphones and remote control antenna | 32K |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 21B |
| A2/19 | FM 2 and DAB antenna amplifier | 10K |
| A2/19 | FM 2 and DAB antenna amplifier | 21C |
| A2/25 | Emergency call system antenna splitter | 42E |
| A2/25 | Emergency call system antenna splitter | 42B |
| A2/32 | Rear window antenna | 9L |
| A2/32 | Rear window antenna | 24C |
| A2/37 | Vehicle Information and Communication System (VICS) control unit | 32F |
| A2/5 | Global positioning system antenna splitter | 23K |
| A2/54 | Left emergency call system antenna | 45E |
| A2/54 | Left emergency call system antenna | 45F |
| A2/54 | Left emergency call system antenna | 45A |
| A2/54 | Left emergency call system antenna | 45C |
| A2/54 | Left emergency call system antenna | 45H |
| A2/54 | Left emergency call system antenna | 45K |
| A2/7 | Telephone keypad | 28H |
| A2/94 | DSRC antenna | 35G |
| A26/18 | Rear entertainment controller unit | 6H |
| A28/11 | Multifunction antenna | 19L |
| A28/11 | Multifunction antenna | 26L |
| A28/11 | Multifunction antenna | 17A |
| A40/3 | COMAND control unit | 17E |
| A40/8 | Audio/COMAND display | 25C |
| A40/9 | Audio/COMAND control panel | 24E |
| A40/9s10 | Navigation button | 26F |
| A40/9s11 | Audio/COMAND controller | 26G |
| A40/9s13 | Volume control button | 26G |
| A40/9s2 | "Back" button | 26F |
| A40/9s6 | "ON" button | 26F |
| A50/6 | Dedicated Short-Range Communications control unit | 32G |
| A67b1 | Hands-free system microphone | 22G |
| A8/7 | Remote control | 35K |
| A90/4 | Tuner unit | 15K |
| A94/1 | TV 1 antenna amplifier | 10L |
| CAN A | Telematics CAN | 22F |
| CAN A | Telematics CAN | 22E |
| CAN A | Telematics CAN | 28F |
| CAN HMI | User interface CAN | 14F |
| CAN HMI | User interface CAN | 11D |
| CAN HMI | User interface CAN | 13B |
| Code 348 | Emergency call/assistance system | 21K |
| Code 367 | Live Traffic Information | 38H |
| Code 386 | Comfort telephony | 38A |
| Code 386 | Comfort telephony | 38H |
| Code 448 | Touchpad | 27B |
| Code 536 | SIRIUS satellite radio | 18K |
| Code 536 | SIRIUS satellite radio | 13K |
| Code 537 | Digital radio | 8J |
| Code 537 | Digital radio | 13K |
| Code 810 | Sound system | 4F |
| Code 811 | Advanced sound system | 4F |
| Code 816 | Entertainment remote control | 31J |
| Code 864 | Rear compartment entertainment | 4H |
| Code 867 | SPLITVIEW | 31K |
| Code B54 | Live Traffic Information | 15A |
| Code B54 | Live Traffic Information | 38E |
| Code B54 | Live Traffic Information | 38A |
| Flex E | Chassis FlexRay | 8D |
| Flex E | Chassis FlexRay | 8B |
| LIN A2 | Telephone keypad LIN | 27G |
| LIN E1 | Steering LIN | 3B |
| LVDS | Low voltage differential signal | 22D |
| MOST | Media Oriented System Transport | 11H |
| MOST | Media Oriented System Transport | 15H |
| MOST | Media Oriented System Transport | 11G |

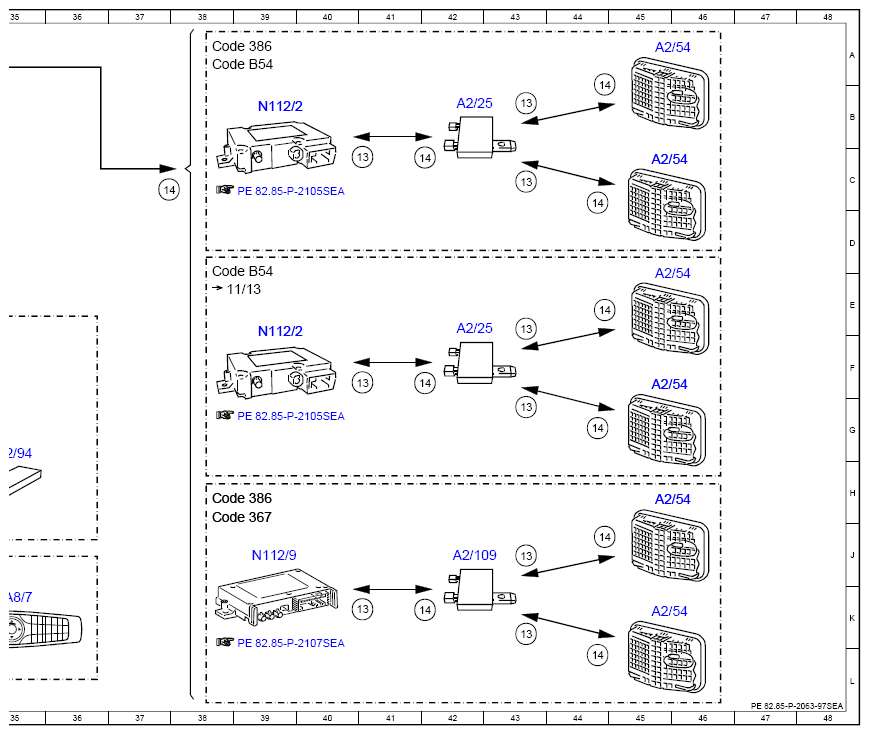

| N112/2 | Telematics services communication module | 39F |
| N112/2 | Telematics services communication module | 39B |
| N112/9 | HERMES control unit | 39J |

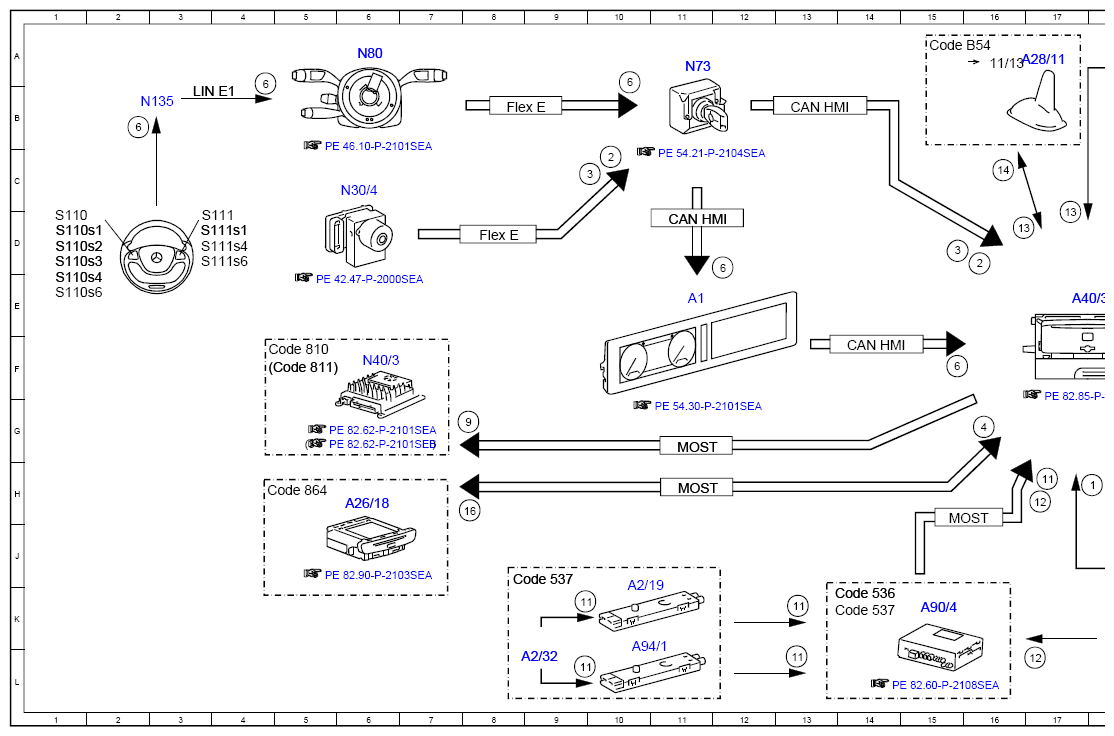

| N135 | Steering wheel electronics | 3B |
| N30/4 | Electronic Stability Program control unit | 6C |
| N40/3 | Sound system amplifier control unit | 6F |
| N73 | Electronic ignition switch control unit | 11A |
| N80 | Steering column module control unit | 6A |
| S110 | Left multifunction steering wheel button group | 1D |
| S110s1 | Scroll forward/back button | 1D |
| S110s2 | Voice control system OFF button | 1D |
| S110s3 | System selection button | 1D |
| S110s4 | "Back" button | 1E |
| S110s6 | OK button | 1E |
| S111 | Right multifunction steering wheel button group | 3D |
| S111s1 | Buttons + and - for setting specific functions and volume control | 4D |
| S111s4 | Voice control system ON button | 4D |
| S111s6 | Mute function button | 4D |
| U52 | Valid for Japan | 31E |
| U54 | Valid for all except Japan | 20B |
