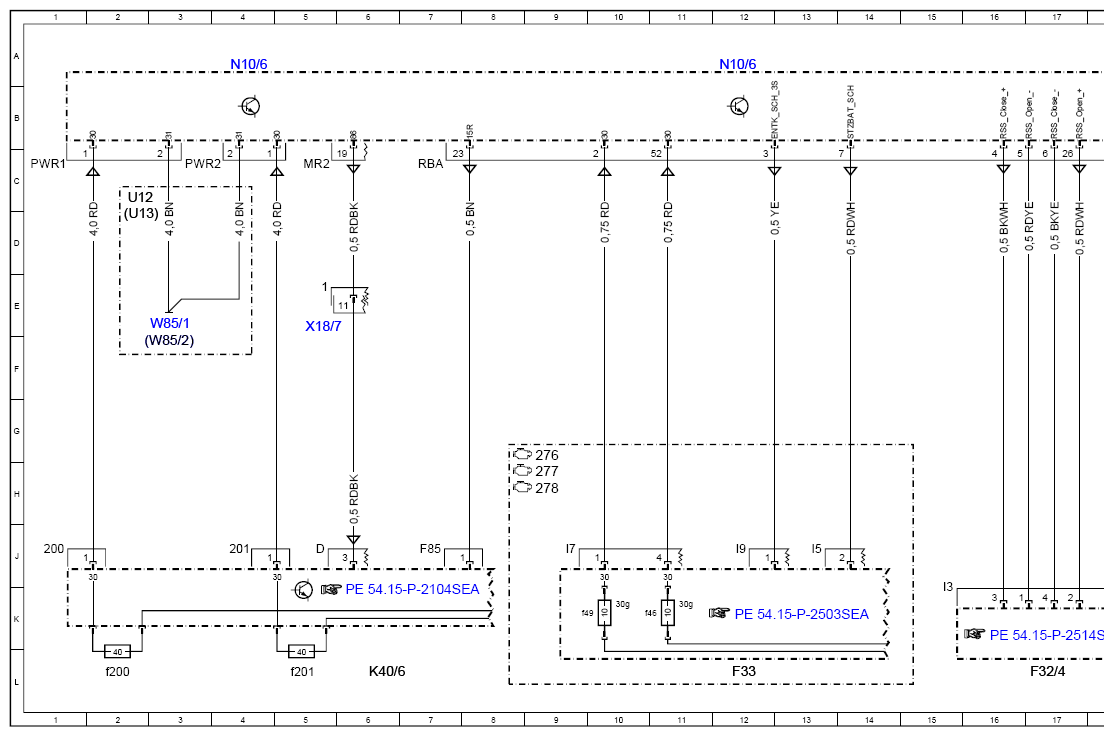

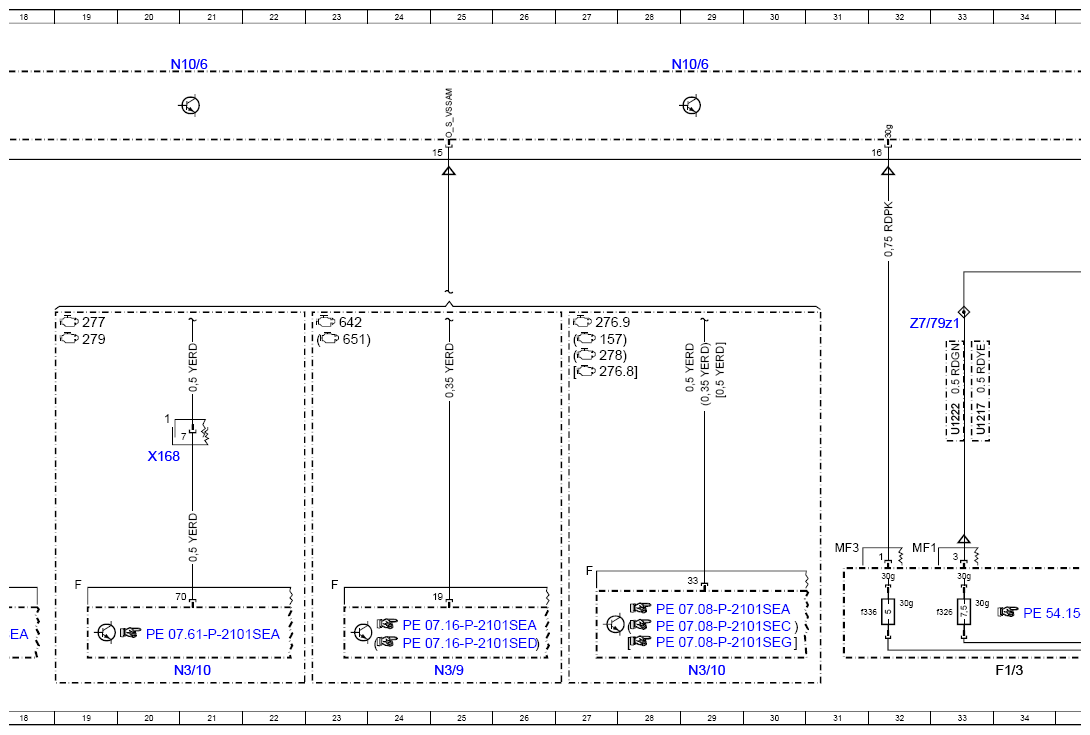

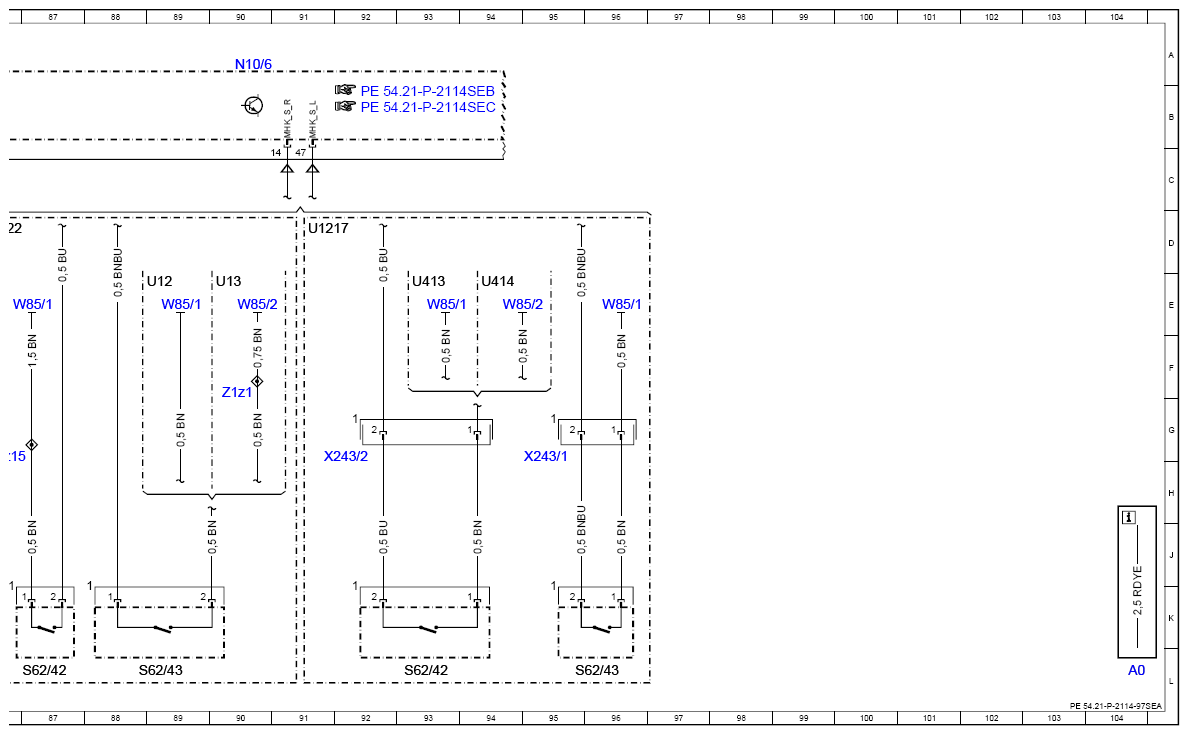

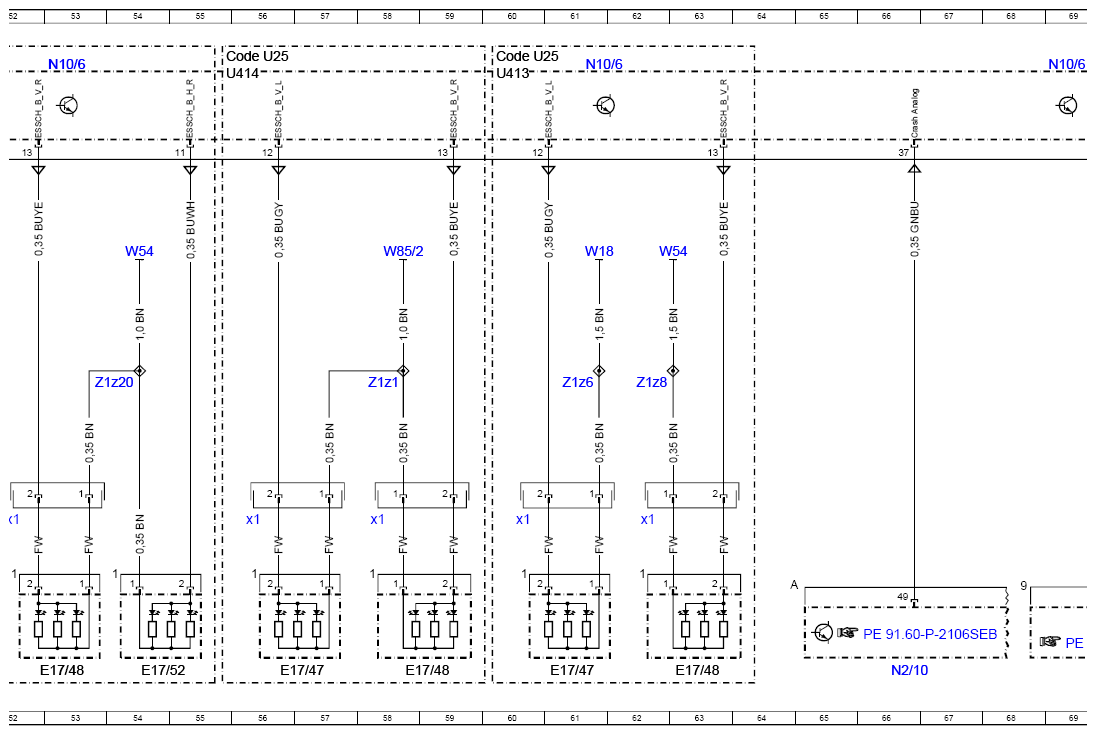

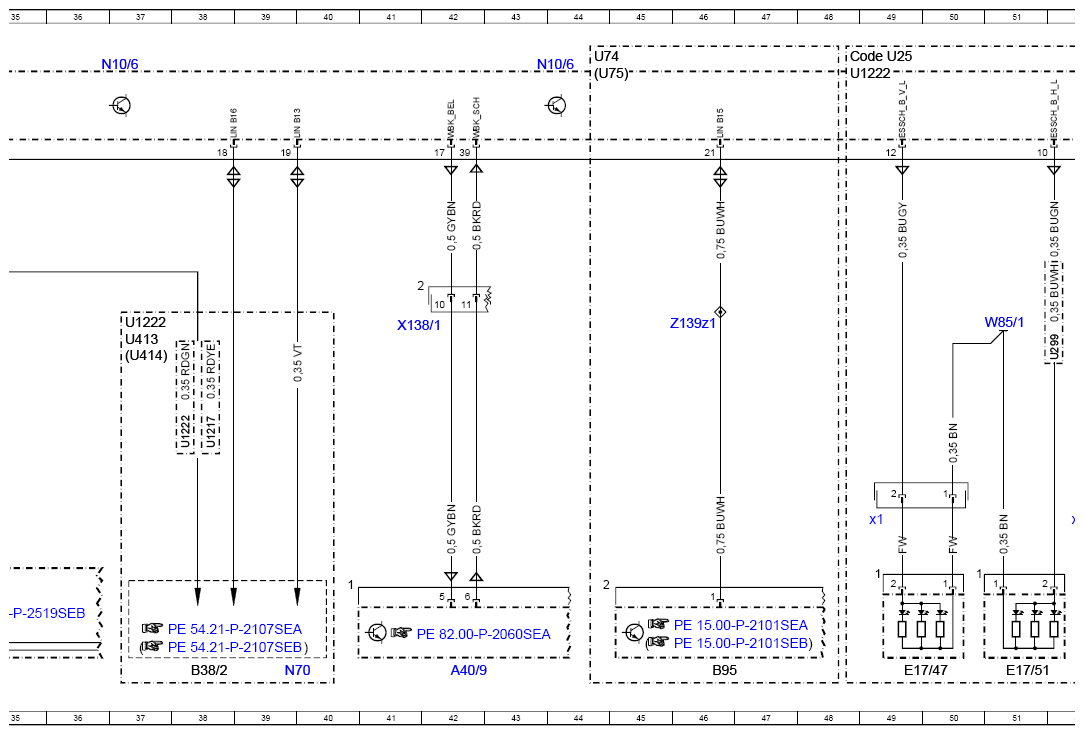

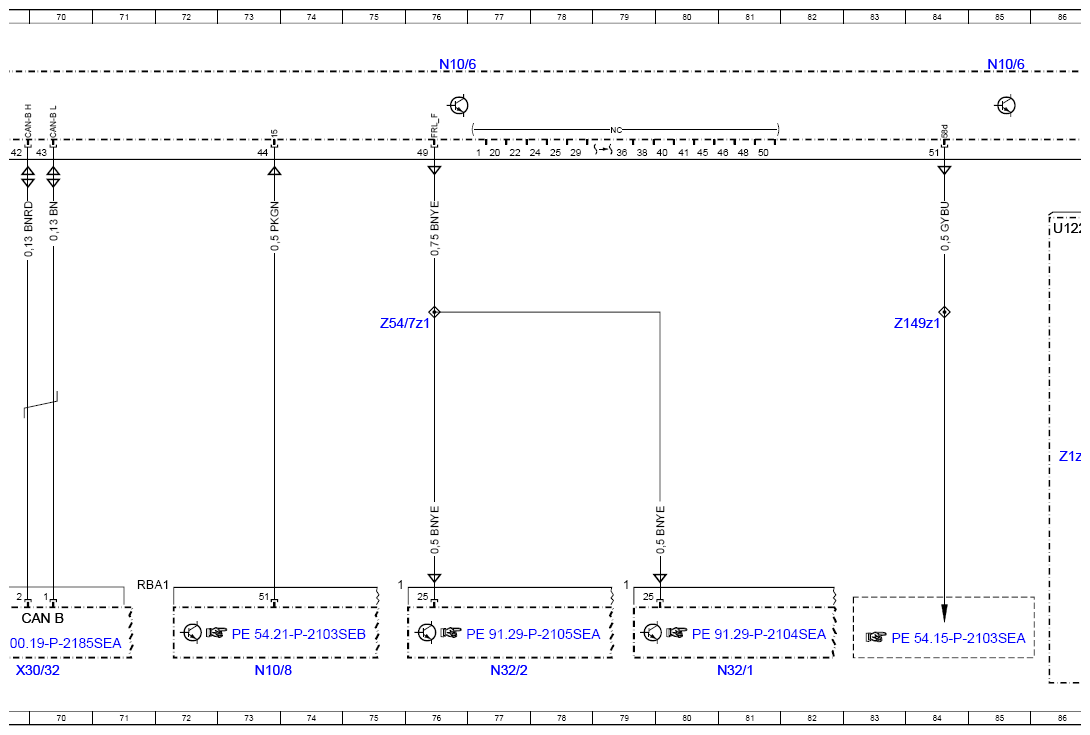

Wiring Diagram For Front Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2114-97SEA
Model 217 up to model year 2018 Control unit N10/6, Sheet 1
Model 222 up to model year 2018 Control unit N10/6, Sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 104L |
| A40/9 | Audio/COMAND control panel | 42L |
| B38/2 | Rain/light sensor with additional functions | 38L |
| B95 | Battery sensor | 46L |
| CAN B | Interior CAN | 70K |
| Code U25 | Illuminated door sills | 48A |
| Code U25 | Illuminated door sills | 55A |
| Code U25 | Illuminated door sills | 60A |
| E17/47 | Left front illuminated door sill molding | 49L |
| E17/47 | Left front illuminated door sill molding | 61L |
| E17/47 | Left front illuminated door sill molding | 56L |
| E17/47x1 | Left front illuminated door sill molding electrical connector | 49J |
| E17/47x1 | Left front illuminated door sill molding electrical connector | 56J |
| E17/47x1 | Left front illuminated door sill molding electrical connector | 60J |
| E17/48 | Right front illuminated door sill molding | 53L |
| E17/48 | Right front illuminated door sill molding | 58L |
| E17/48 | Right front illuminated door sill molding | 63L |
| E17/48x1 | Right front illuminated door sill molding electrical connector | 52J |
| E17/48x1 | Right front illuminated door sill molding electrical connector | 58J |
| E17/48x1 | Right front illuminated door sill molding electrical connector | 62J |
| E17/51 | Left rear illuminated door sill molding | 51L |
| E17/52 | Right rear illuminated door sill molding | 54L |
| F1/3 | Right A-pillar fuse box | 34L |
| F1/3f326 | Fuse 326 | 33K |
| F1/3f336 | Fuse 336 | 31K |
| F32/4 | Vehicle interior pre-fuse box | 17L |
| F33 | Rear pre-fuse box | 12L |
| F33f46 | Fuse 46 | 10K |
| F33f49 | Fuse 49 | 9K |
| K40/6 | Left fuse and relay module | 6L |
| K40/6f200 | Fuse 200 | 2L |
| K40/6f201 | Fuse 201 | 5L |
| N10/6 | Front SAM control unit | 53A |
| N10/6 | Front SAM control unit | 4A |
| N10/6 | Front SAM control unit | 12A |
| N10/6 | Front SAM control unit | 21A |
| N10/6 | Front SAM control unit | 29A |
| N10/6 | Front SAM control unit | 37A |
| N10/6 | Front SAM control unit | 44A |
| N10/6 | Front SAM control unit | 61A |
| N10/6 | Front SAM control unit | 69A |
| N10/6 | Front SAM control unit | 76A |
| N10/6 | Front SAM control unit | 85A |
| N10/6 | Front SAM control unit | 90A |
| N10/8 | Rear SAM control unit | 73L |
| N2/10 | Supplemental restraint system control unit | 66L |
| N3/10 | ME-SFI [ME] control unit | 21L |
| N3/10 | ME-SFI [ME] control unit | 29L |
| N3/9 | CDI control unit | 25L |
| N32/1 | Driver seat control unit | 81L |
| N32/2 | Front passenger seat control unit | 77L |
| N70 | Overhead control panel control unit | 39L |
| S62/42 | Right engine hood contact switch | 93L |
| S62/42 | Right engine hood contact switch | 87L |
| S62/43 | Left engine hood contact switch | 89L |
| S62/43 | Left engine hood contact switch | 96L |
| U12 | Valid for left-hand drive vehicles | 2C |
| U12 | Valid for left-hand drive vehicles | 88E |
| U1217 | Valid for model series 217 | 33G |
| U1217 | Valid for model series 217 | 38G |
| U1217 | Valid for model series 217 | 91D |
| U1222 | Valid for model series 222 | 33G |
| U1222 | Valid for model series 222 | 38G |
| U1222 | Valid for model series 222 | 37E |
| U1222 | Valid for model series 222 | 48A |
| U1222 | Valid for model series 222 | 86D |
| U13 | Valid for right-hand drive vehicles | 2D |
| U13 | Valid for right-hand drive vehicles | 90E |
| U299 | Valid for model 222.9 | 52F |
| U413 | Valid for model 217.3 | 37F |
| U413 | Valid for model 217.3 | 60A |
| U413 | Valid for model 217.3 | 93E |
| U414 | Valid for model 217.4 | 37F |
| U414 | Valid for model 217.4 | 55A |
| U414 | Valid for model 217.4 | 94E |
| U74 | Valid for diesel engines | 44A |
| U75 | Valid for gasoline engines | 44A |
| W18 | Left front seat crossmember ground point | 61D |
| W54 | Right rear wheel well ground point | 62D |
| W54 | Right rear wheel well ground point | 54D |
| W85/1 | Driver footwell frame floor assembly ground point | 3E |
| W85/1 | Driver footwell frame floor assembly ground point | 51E |
| W85/1 | Driver footwell frame floor assembly ground point | 87E |
| W85/1 | Driver footwell frame floor assembly ground point | 89E |
| W85/1 | Driver footwell frame floor assembly ground point | 93E |
| W85/1 | Driver footwell frame floor assembly ground point | 96E |
| W85/2 | Front passenger footwell frame floor assembly ground point | 3F |
| W85/2 | Front passenger footwell frame floor assembly ground point | 58D |
| W85/2 | Front passenger footwell frame floor assembly ground point | 90E |
| W85/2 | Front passenger footwell frame floor assembly ground point | 94E |
| X138/1 | Front center console electrical connector | 41E |
| X168 | ME-SFI [ME]/CDI control unit vehicle interior wiring harness electrical connector | 20H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 5E |
| X243/1 | Left engine hood contact switch electrical connector | 95H |
| X243/2 | Right engine hood contact switch electrical connector | 92H |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 69L |
| Z139z1 | Battery sensor connector sleeve | 46E |
| Z149z1 | Connector sleeve, cigarette lighter with ashtray illumination, rear | 84E |
| Z1z1 | Connector sleeve 2 in wiring harness | 58F |
| Z1z1 | Connector sleeve 2 in wiring harness | 90F |
| Z1z15 | Circuit 31 connector sleeve | 86G |
| Z1z20 | Circuit 31 connector sleeve | 54F |
| Z1z6 | Circuit 31 connector sleeve | 61F |
| Z1z8 | Circuit 31 connector sleeve | 62F |
| Z54/7z1 | Footwell illumination connector sleeve | 75E |
| Z7/79z1 | Circuit 30g connector sleeve | 33E |
