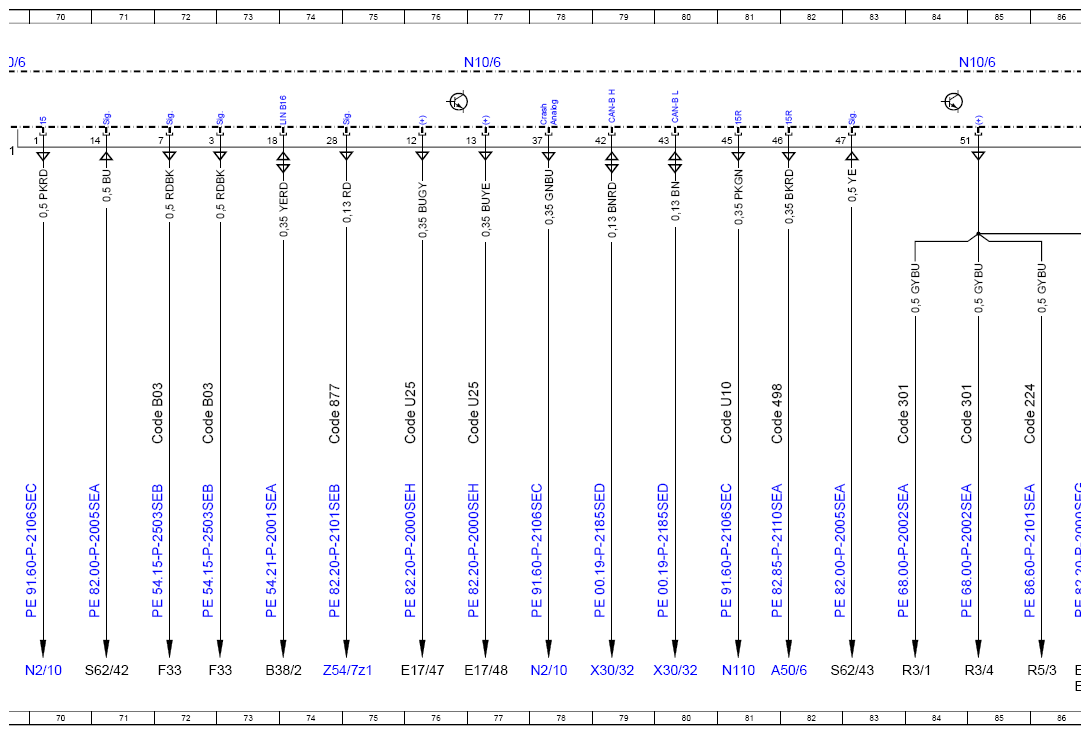

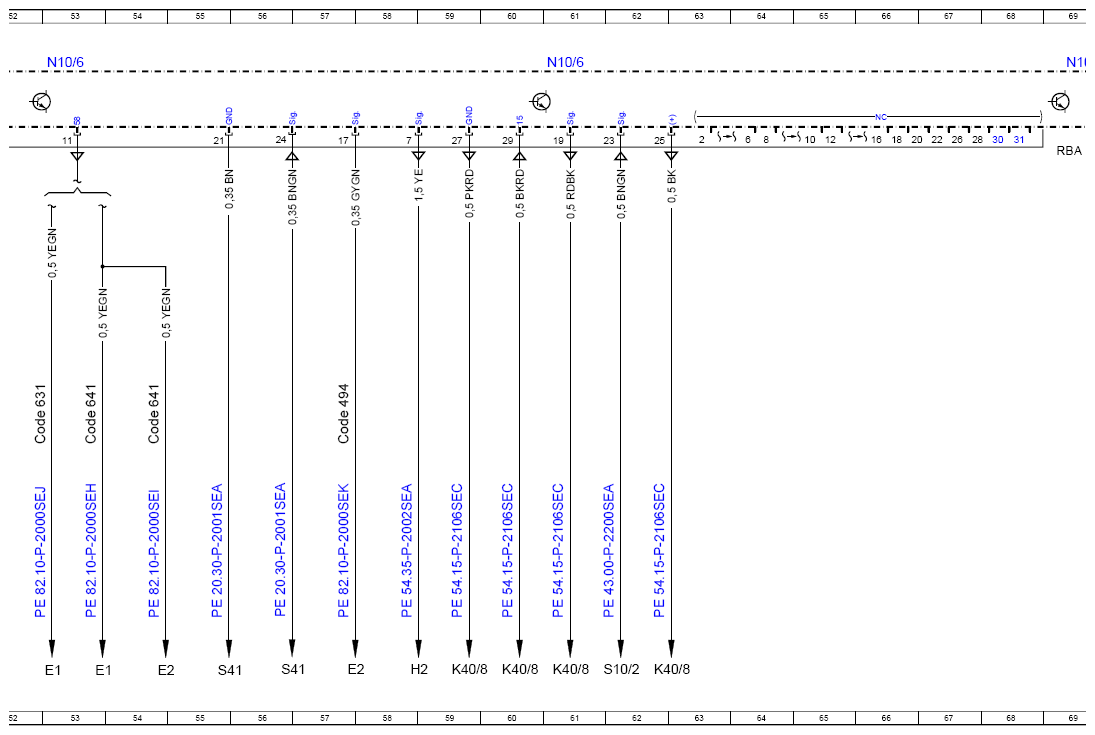

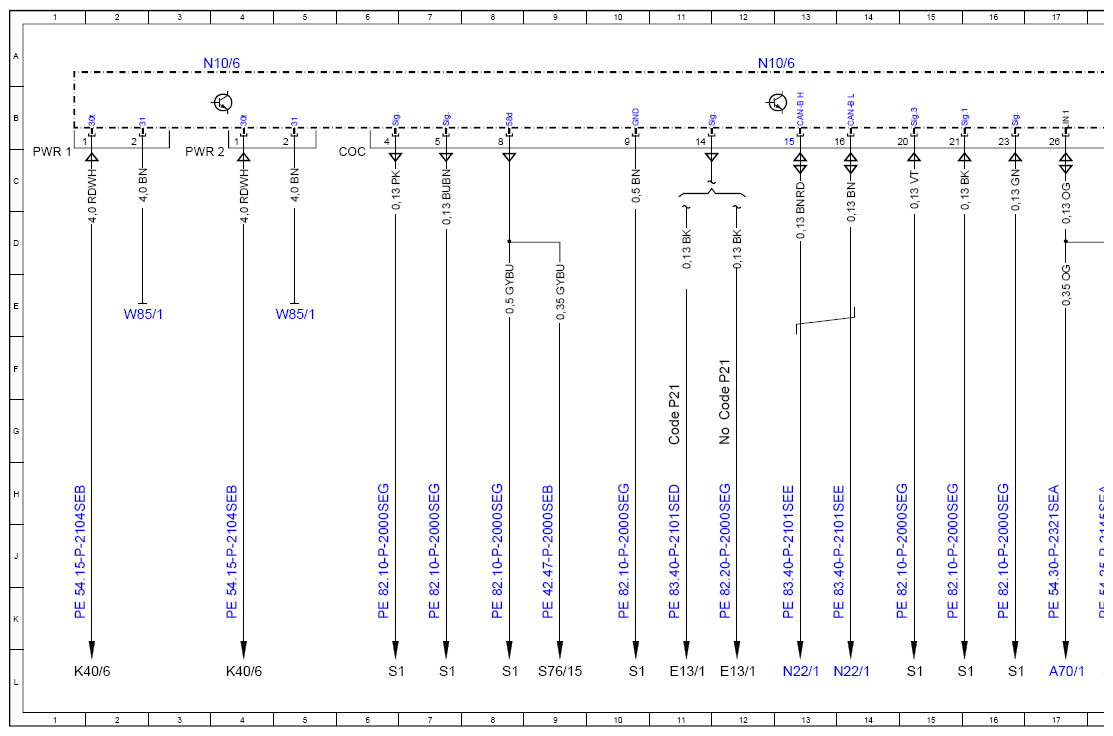

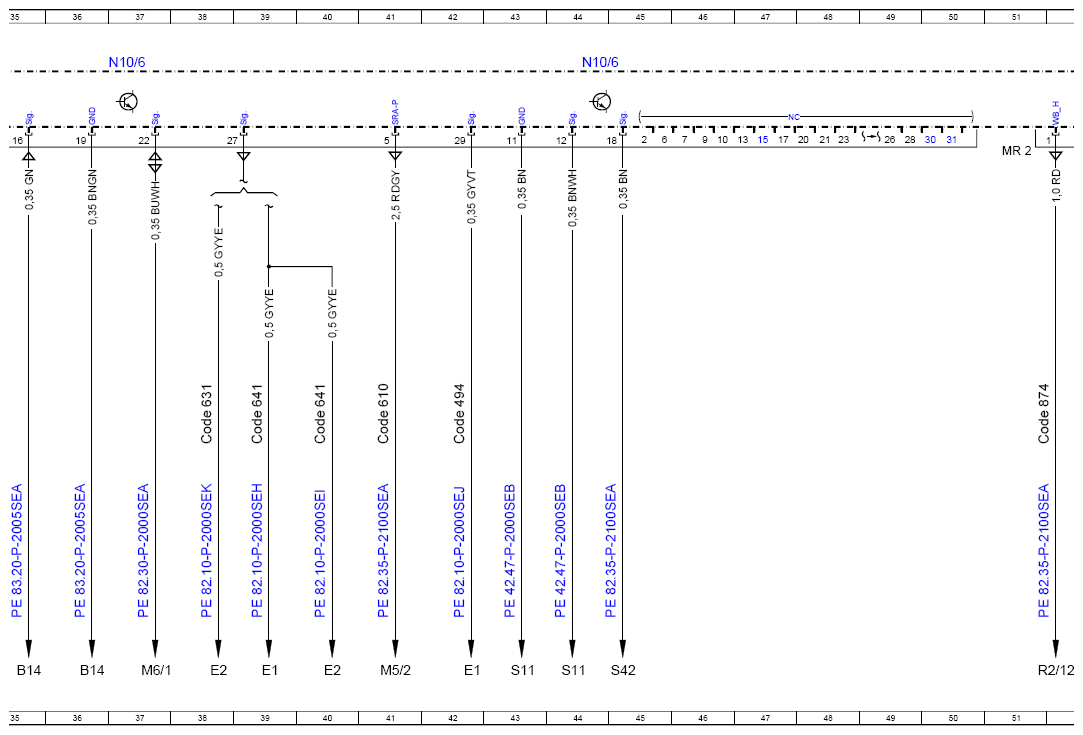

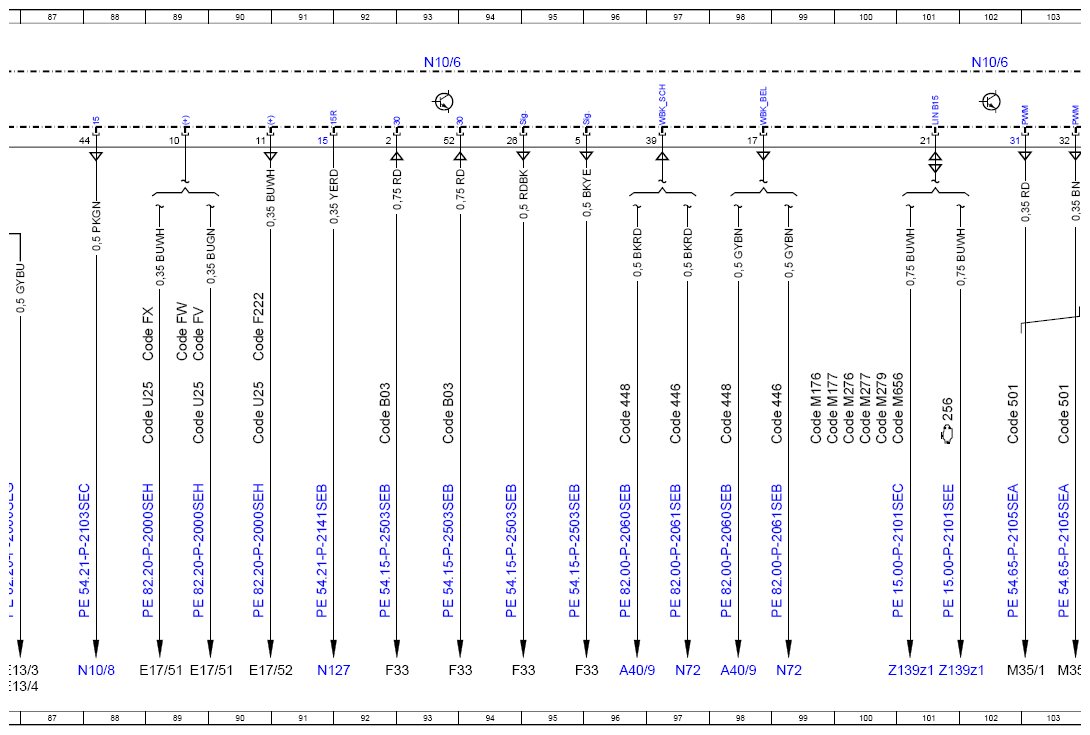

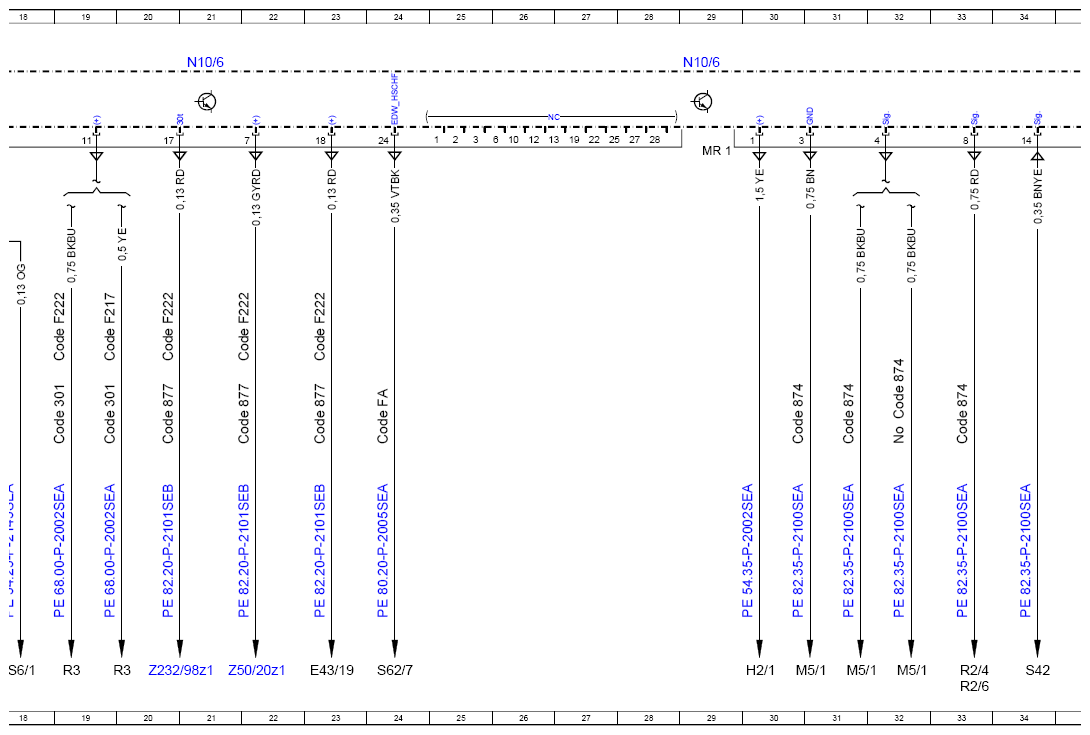

Wiring Diagram For Front Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2114-97SED
Model 217, 222 as of model year 2018 Control unit N10/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 112L |
| A40/9 | Audio/COMAND control panel | 96L |
| A40/9 | Audio/COMAND control panel | 98L |
| A50/6 | Dedicated Short-Range Communications control unit | 81L |
| A70/1 | Analog clock | 17L |
| B14 | Outside temperature sensor | 35L |
| B14 | Outside temperature sensor | 36L |
| B38/2 | Rain/light sensor with additional functions | 73L |
| Code 224 | Design rear individual seats | 86G |
| Code 301 | Ashtray package/smoker package | 19G |
| Code 301 | Ashtray package/smoker package | 19G |
| Code 301 | Ashtray package/smoker package | 85G |
| Code 301 | Ashtray package/smoker package | 84G |
| Code 446 | Touchpad only | 97G |
| Code 446 | Touchpad only | 99G |
| Code 448 | Touchpad | 96G |
| Code 448 | Touchpad | 98G |
| Code 494 | USA version | 57G |
| Code 494 | USA version | 42G |
| Code 498 | Japan version | 82G |
| Code 501 | 360° camera | 102G |
| Code 501 | 360° camera | 103G |
| Code 610 | Night View Assist | 41G |
| Code 631 | Static LED headlamp, left-hand traffic | 38G |
| Code 631 | Static LED headlamp, left-hand traffic | 53G |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 40G |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 39G |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 54G |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 53G |
| Code 874 | MAGIC VISION CONTROL | 30G |
| Code 874 | MAGIC VISION CONTROL | 33G |
| Code 874 | MAGIC VISION CONTROL | 52G |
| Code 874 | MAGIC VISION CONTROL | 31G |
| Code 874 | MAGIC VISION CONTROL | 32G |
| Code 877 | Ambiance illumination | 22G |
| Code 877 | Ambiance illumination | 20G |
| Code 877 | Ambiance illumination | 23G |
| Code 877 | Ambiance illumination | 74G |
| Code B03 | ECO start/stop function | 72G |
| Code B03 | ECO start/stop function | 72G |
| Code B03 | ECO start/stop function | 92G |
| Code B03 | ECO start/stop function | 93G |
| Code F217 | MODEL SERIES 217 | 19F |
| Code F222 | MODEL SERIES 222 | 19F |
| Code F222 | MODEL SERIES 222 | 20F |
| Code F222 | MODEL SERIES 222 | 22F |
| Code F222 | MODEL SERIES 222 | 23F |
| Code F222 | MODEL SERIES 222 | 90F |
| Code FA | CABRIOLET | 24G |
| Code FV | LONG SEDAN | 89F |
| Code FW | SEDAN | 89F |
| Code FX | Special version | 89F |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 99G |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 100G |
| Code M276 | SPARK-IGNITION ENGINE M276 | 100G |
| Code M277 | V12 SPARK-IGNITION ENGINE M277 | 100G |
| Code M279 | V12 SPARK-IGNITION ENGINE M279 - AMG | 100G |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 101G |
| Code P21 | AIR-BALANCE package | 11G |
| Code P21 | AIR-BALANCE package | 12G |
| Code U10 | Front passenger seat with weight detection | 81G |
| Code U25 | Illuminated door sills | 77G |
| Code U25 | Illuminated door sills | 76G |
| Code U25 | Illuminated door sills | 90G |
| Code U25 | Illuminated door sills | 89G |
| Code U25 | Illuminated door sills | 89G |
| E1 | Left front lamp unit | 39L |
| E1 | Left front lamp unit | 42L |
| E1 | Left front lamp unit | 53L |
| E1 | Left front lamp unit | 53L |
| E13/1 | Glove box lamp | 11L |
| E13/1 | Glove box lamp | 12L |
| E13/3 | Stowage compartment illumination | 86L |
| E13/4 | Rear center console stowage compartment ambiance illumination | 86L |
| E17/47 | Left front illuminated door sill molding | 76L |
| E17/48 | Right front illuminated door sill molding | 77L |
| E17/51 | Left rear illuminated door sill molding | 89L |
| E17/51 | Left rear illuminated door sill molding | 89L |
| E17/52 | Right rear illuminated door sill molding | 90L |
| E2 | Right front lamp unit | 38L |
| E2 | Right front lamp unit | 40L |
| E2 | Right front lamp unit | 54L |
| E2 | Right front lamp unit | 57L |
| E43/19 | Passenger-side interior ambiance illumination | 23L |
| F33 | Rear pre-fuse box | 93L |
| F33 | Rear pre-fuse box | 72L |
| F33 | Rear pre-fuse box | 72L |
| F33 | Rear pre-fuse box | 92L |
| F33 | Rear pre-fuse box | 94L |
| F33 | Rear pre-fuse box | 95L |
| H2 | Left fanfare horn | 58L |
| H2/1 | Right fanfare horn | 30L |
| K40/6 | Driver-side fuse and relay module | 1L |
| K40/6 | Driver-side fuse and relay module | 4L |
| K40/8 | Engine fuse and relay module | 61L |
| K40/8 | Engine fuse and relay module | 59L |
| K40/8 | Engine fuse and relay module | 60L |
| K40/8 | Engine fuse and relay module | 62L |
| M35/1 | Front camera cover motor | 102L |
| M35/1 | Front camera cover motor | 103L |
| M5/1 | Windshield washer system pump | 30L |
| M5/1 | Windshield washer system pump | 32L |
| M5/1 | Windshield washer system pump | 31L |
| M5/2 | Night & Day View Assist long-range camera washer fluid pump | 41L |
| M6/1 | Wiper motor | 37L |
| N10/6 | Front SAM control unit | 4A |
| N10/6 | Front SAM control unit | 12A |
| N10/6 | Front SAM control unit | 21A |
| N10/6 | Front SAM control unit | 29A |
| N10/6 | Front SAM control unit | 37A |
| N10/6 | Front SAM control unit | 44A |
| N10/6 | Front SAM control unit | 53A |
| N10/6 | Front SAM control unit | 93A |
| N10/6 | Front SAM control unit | 61A |
| N10/6 | Front SAM control unit | 69A |
| N10/6 | Front SAM control unit | 77A |
| N10/6 | Front SAM control unit | 85A |
| N10/6 | Front SAM control unit | 102A |
| N10/8 | Rear SAM control unit | 88L |
| N110 | Weight Sensing System (WSS) control unit | 81L |
| N127 | Drivetrain control unit | 91L |
| N2/10 | Supplemental restraint system control unit | 70L |
| N2/10 | Supplemental restraint system control unit | 78L |
| N22/1 | Climate control, control unit | 13L |
| N22/1 | Climate control, control unit | 14L |
| N72 | Lower control panel | 99L |
| N72 | Lower control panel | 97L |
| R2/12 | Left heated wiper blade | 52L |
| R2/4 | Lower spray nozzle hose heater | 33L |
| R2/6 | Windshield washer system junction box | 33L |
| R3 | Front cigarette lighter with ashtray illumination | 20L |
| R3 | Front cigarette lighter with ashtray illumination | 19L |
| R3/1 | Cigarette lighter with ashtray illumination, rear | 84L |
| R3/4 | Cigarette lighter with rear center console illumination | 85L |
| R5/3 | Rear cup holder | 86L |
| S1 | Exterior lights switch | 10L |
| S1 | Exterior lights switch | 8L |
| S1 | Exterior lights switch | 6L |
| S1 | Exterior lights switch | 7L |
| S1 | Exterior lights switch | 15L |
| S1 | Exterior lights switch | 16L |
| S1 | Exterior lights switch | 15L |
| S10/2 | Right front brake wear sensor | 62L |
| S11 | Brake fluid level switch | 44L |
| S11 | Brake fluid level switch | 43L |
| S41 | Coolant level switch | 55L |
| S41 | Coolant level switch | 56L |
| S42 | Windshield washer system washer fluid level switch | 34L |
| S42 | Windshield washer system washer fluid level switch | 45L |
| S6/1 | Driver-side instrument panel button group | 18L |
| S62/42 | Right engine hood contact switch | 71L |
| S62/43 | Left engine hood contact switch | 82L |
| S62/7 | Glove compartment anti-theft alarm system switch | 24L |
| S76/15 | Electric parking brake switch | 9L |
| W85/1 | Driver footwell frame floor assembly ground point | 2E |
| W85/1 | Driver footwell frame floor assembly ground point | 5E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 80L |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 79L |
| Z139z1 | Battery sensor connector sleeve | 101L |
| Z139z1 | Battery sensor connector sleeve | 101L |
| Z232/98z1 | Cockpit ambiance illumination connector sleeve, power supply | 20L |
| Z50/20z1 | Footwell illumination cockpit connector sleeve | 22L |
| Z54/7z1 | Footwell illumination connector sleeve | 74L |
