Overhead Control Panel Control Unit, Basic Function - GF82.20-P-9890A
Model All (CAR)
The SOS button (1.8) is located behind the cover.
Depending on the equipment installed, the front passenger airbag indicator lamp is also present.

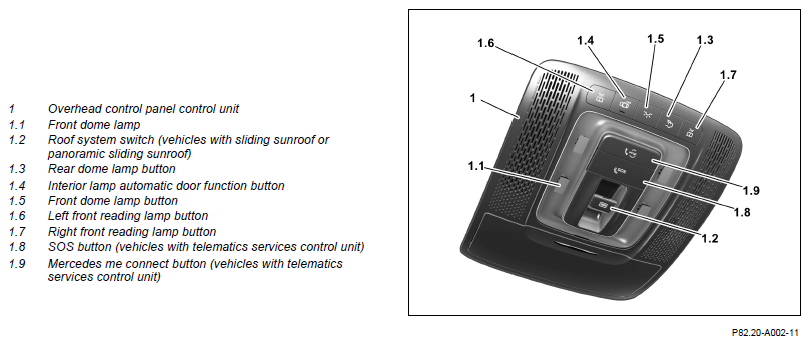

Example illustration of overhead control panel control unit
Overview
This document contains information on:
- General
- Function requirements
- Function
General
Various lamps, e.g. the reading lamp, are integrated in the overhead control panel control unit, along with the control elements for opening and closing elements such as the panoramic roof.
The overhead control panel control unit is located in the front section of the headliner.
The overhead control panel control unit contains the following components, depending on the equipment:
- Interior temperature sensor (depending on model)
- Interior protection receiver and transmitter (Vehicles with interior protection and tow-away protection)
- Inclination sensor (vehicles with interior protection and tow-away protection)
- Hand motion sensor (vehicles with gesture detection system)
Function requirements
- Circuit 30t ON
Function
The overhead control panel control unit reads in the operation signals for the interior lighting, the sliding sunroof and the emergency call. On vehicles with interior protection, the overhead control panel control unit also monitors the vehicle interior and detects changes in the vehicle roll angle.
On vehicles with glass breakage sensors, the overhead control panel control unit reads in the corresponding sensor signals.
For protection against misuse of the garage door opener, a security code is stored in the overhead control panel control unit.
In vehicles with gesture recognition system, a hand motion sensor in the overhead control panel control unit detects the hand movements of the driver and front passenger and converts these into operation signals.
| Further basic function | |||
| Hand motion sensor, basic function | Model all (CAR) with code 77B (Contactless gesture control at front) | GF82.90-P-2007A |
