4MATIC Front Axle Transmission, Function - GF33.10-P-3000AVI

Model 217, 222 with transmission 725.0 (except 725.096)

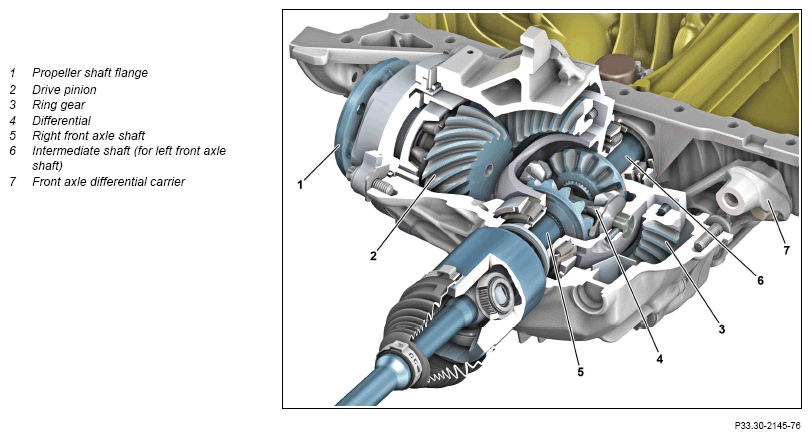

Sectional view of front axle transmission

Courtesy of MERCEDES-BENZ USA

Front axle transmission 4MATIC, general

The front axle transmission is designed as a single-speed differential (4) with fuel-efficient technology (fuel economy). The housing of the front axle transmission is made of aluminum and bolted to the oil pan of the engine by means of a carrier (7). The drive pinion (2) is at an angle of 83° to the ring gear (3) so as to adjust the angular course of the propeller shaft relative to the front axle transmission. The ring gear (3) is attached on the engine side and bolted to the differential housing of the differential (4). This location of components of the front axle transmission causes the change in direction of rotation, which occurs due to the single-speed front axle transmission output in the transfer case, to reverse again.
