Component Description For Front SAM Control Unit - GF54.21-P-7010LF

Model 217, 222

Shown on Model 222 before Model year 2018

Location

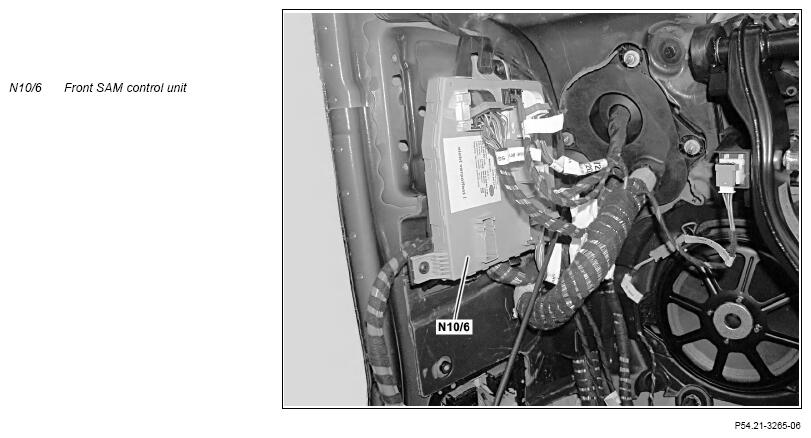

The front SAM control unit is at the A-pillar in the driver footwell.

Tasks

The front SAM control unit has the following tasks:

• Reading in of signals
• Evaluation of input factors
• Controlling functions
• Actuation of components
• Switching of relays

Reading in of signals

The input factors are read in via the following connections:

• Direct line
• Instrument panel LIN (LIN 1)
• Roof LIN (LIN B13)
• Battery sensor LIN (LIN B15)
• Rain/light sensor LIN (LIN B16)
• Interior CAN (CAN B)

Direct line

The signals from the following components are read via direct lines:

• Outside temperature sensor (B14)
• Exterior lights switch (S1)
• Right front brake wear sensor (S10/2)
• Brake fluid level switch (S11)
• Coolant level switch (S41)
• Windshield washer system washer fluid level switch (S42)
• Glove compartment anti-theft alarm system switch (S62/7) (on model 217.4)
• Right engine hood contact switch (S62/42)
• Left engine hood contact switch (S62/43)
• Separate trunk locking switch (S88/6) (with code 887 (Separate trunk locking), model 217)

Instrument panel LIN

The signals from the following components are read-in over the instrument panel LIN:

• Driver side instrument panel button group (S6/1) (with code 235 (Active Parking Assist with PARKTRONIC), code 238 (Active Lane Keeping Assist), code 266 (Steer Assist), code 463 (Head-up Display), code 501 (360° Camera) or code 610 (Night View Assist))
• Center instrument panel button group (S6/2)

Roof LIN

The signals of the following components are read-in over the roof LIN:

• Overhead control panel control unit (N70)
• Forward mirror dimming light sensor (A67h1) (with code 249 (Automatically dimming mirror), model 217)
• Rearward mirror dimming light sensor (A67h2) (with code 249 (Automatically dimming mirror), model 217)
• Inside rear-view mirror dimming (A67h3) (with code 249 (Automatically dimming mirror), model 217)
• Garage door opener (A67n2) (with code 231 (Garage door opener) or code 232 (Garage door opener))

Battery sensor LIN

The battery sensor (B95) signals are read in over the battery sensor-LIN.

Rain and light sensor LIN

The signals from the following components are read in over the rain/light sensor LIN:

• Rain/light sensor with additional functions (B38/2)
• Wiper motor (M6/1)

Interior CAN

The signals are read in by the front SAM control unit via the interior CAN. The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Controlling functions

The front SAM control unit also controls the following functions:

• Energy management
• Exterior lights
• Interior illumination
• Windshield wiper system

Actuation of components

The actuation of the components takes place via the following connections:

• Direct line
• Instrument panel LIN
• Roof LIN (vehicles up to Model year 2018)
• Interior CAN

Direct line

The following components are actuated via direct lines:

• Left front lamp unit (E1)
• Right front lamp unit (E2)
• Glove compartment lamp (E13/1) over glove compartment lamp switch (S17/9)
• Right front footwell lamp (E17/15)
• Left front footwell lamp (E17/16)
• Right rear footwell lamp (E17/17)
• Left rear footwell lamp (E17/18)
• Front left illuminated door sill molding (E17/47) (with code U25 (AMG illuminated door sills)) model 217, 222, code U25 (Door sills with "Mercedes-Benz" lettering, illuminated) model 217, 222 or U25 (Door sills with "MAYBACH" lettering at front and rear, illuminated) model 222
• Front right illuminated door sill molding (E17/48) (with code U25 (AMG illuminated door sills)) model 217, 222, code U25 (Door sills with "Mercedes-Benz" lettering, illuminated) model 217, 222 or U25 (Door sills with "MAYBACH" lettering at front and rear, illuminated) model 222
• Rear left illuminated door sill molding (E17/51) (with code U25 (AMG illuminated door sills)) model 222 or code U25 (Door sills with "Mercedes-Benz" lettering, illuminated) model 222
• Rear right illuminated door sill molding (E17/52) (with code U25 (AMG illuminated door sill)) model 222 or code U25 (Door sills with "Mercedes-Benz" lettering, illuminated) model 222
• Front center console cup holder ambient lighting (E20/18) (up to model year 2018 with code 877 (Ambient lighting))
• Left front center console ambient lighting (E43/14) (up to model year 2018 with code 877 (Ambient lighting))
• Left rear center console ambient lighting (E43/15) (up to model year 2018 with code 877 (Ambient lighting))
• Right front center console ambient lighting (E43/16) (up to model year 2018 with code 877 (Ambient lighting))
• Right rear center console ambient lighting (E43/17) (up to model year 2018 with code 877 (Ambient lighting))
• Driver ambient lighting (E43/18) (up to model year 2018 with code 877 (Ambient lighting))
• Front passenger inner ambient lighting (E43/19) (up to model year 2018 with code 877 (Ambient lighting))
• Front passenger outer ambient lighting (E43/20) (up to model year 2018 with code 877 (Ambient lighting))
• Left horn (H2) and right horn (H2/1) (as of model year 2018)
• Windshield washer system pump (M5/1)
• Washer fluid pump for Night & Day View Assist long-range camera (M5/2) (with code 610 (Night View Assist))
• Front camera cover motor (M35/1)
• Top spray nozzle hose heater (R2/5) (model 222 with code 874 (MAGIC VISION CONTROL, heated), model 217)
• Windshield washer system junction box (R2/6) (model 222 with code 874 (MAGIC VISION CONTROL, heated), model 217)
• Left wiper blade heater (R2/12) (model 222 with code 874 (MAGIC VISION CONTROL, heated), model 217)
• Right wiper blade heater (R2/13) (model 222 with code 874 (MAGIC VISION CONTROL, heated), model 217)

Model 217, 222

as of model year 2018

with code 877 (ambient lighting)

Additionally, the front SAM control unit supplies the ambient lighting with voltage.

Instrument panel LIN

The analog clock (A70/1) is actuated over the instrument panel LIN.

Roof LIN (vehicles up to Model year 2018)

The following components are actuated over the roof LIN:

• Inside rear-view mirror (A67) (with CODE 231 (Garage door opener) or CODE 232 (Garage door opener) or CODE 249 (Automatically dimming mirror), model 217)
• Overhead control panel control unit

Model 217, 222

as of model year 2018

In vehicles as of model year 2018, the roof LIN is no longer connected to the front SAM control unit, but instead to the interior CAN via the overhead control panel control unit.

Interior CAN

The signals are sent by the front SAM control unit over the interior CAN. The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Switching of relays

The following relays are switched by the front SAM control unit:

• Battery disconnect switch relay (F33k3) (as of model year 2018)
• Quiescent current shutoff relay (F32/4k2) (up to model year 2018)
• Decoupling relay (F33k1)
• ECO start/stop function additional battery relay (F33k2)
• Relay, circuit 15R (K40/6kF)
• MAGIC VISION CONTROL relay (K40/6kD) (model 222 with code 874 (MAGIC VISION CONTROL, heated), model 217)
• Engine compartment circuit 15 relay (K40/8kG)
• Horns relay (K40/8kL) (up to model year 2018)
• Wiper park position heater relay (K40/8kM)

	Wiring diagram for front signal acquisition and actuation module (SAM) control unit	Model 217, 222 as of model year 2018	PE54.21-P-2114-97SED
		Model 217, 222 up to model year 2018 Sheet 1	PE54.21-P-2114-97SEA
		Model 217, 222 up to model year 2018 Sheet 2	PE54.21-P-2114-97SEB
		Model 217, 222 up to model year 2018 Sheet 3	PE54.21-P-2114-97SEC
