Remove/Install Electronic Ignition/Starter Switch (EZS) Lock Control Unit - AR46.10-P-0810LF
Model 222
up to Model year 2018

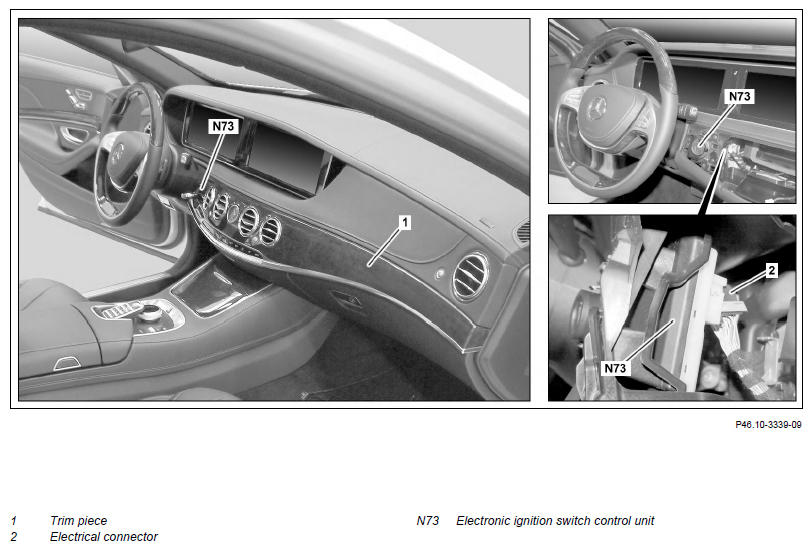

Fig 1: Electronic Ignition/Starter Switch (EZS) Lock Control Unit Components Location - Model 222 Up To Model Year 2018
| Topical note | Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Connect vehicle diagnosis system and perform commissioning of electronic ignition lock control unit (N73) | When replacing the electronic ignition lock control unit (N73). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove trim piece (1) from instrument panel | AR68.10-P-1180LF | |
| 4 | Release and disconnect electrical connection (2) from electronic ignition lock control unit (N73) | ||

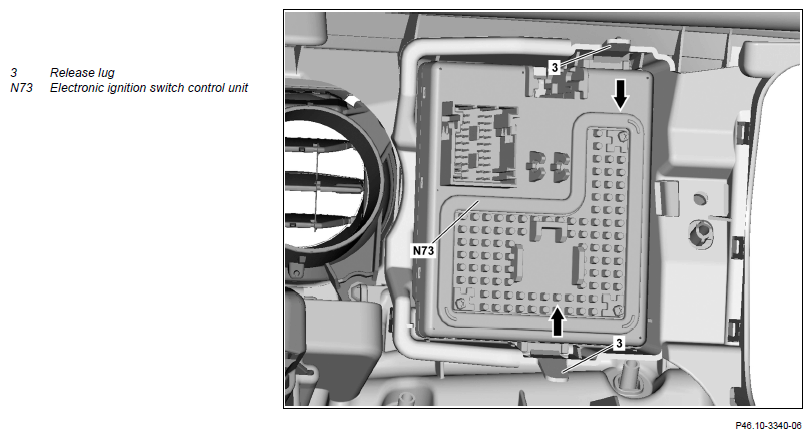

| 5 | Release electronic ignition lock control unit (N73) and press out in the direction of engine compartment | ||
| 6 | Laterally rotate electronic ignition lock control unit (N73) by 90° and take out | ||
| 7 | Install in the reverse order |
