Remove/Install Transfer Case/All-Wheel Drive Control Unit - AR28.19-P-1003MNM
Transmission 725.09 in Model 217, 222 with engine 177
with Code M005 (Vehicles with 4MATIC/All-wheel drive)
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

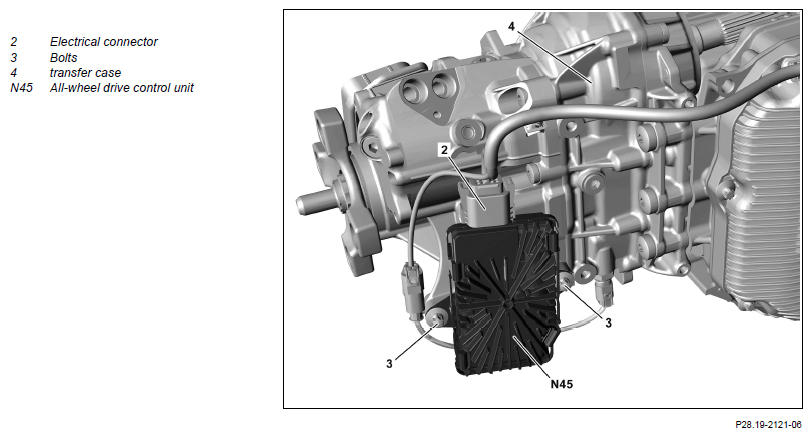

| 1 | Release and disconnect electrical connector (2). | ||
| 2 | Remove screw/bolts (3). | *BA28.10-P-1010-01G | |
| 3 | Remove all-wheel drive control unit (N45) downwards. | The catch hooks of the all-wheel drive control unit (N45) must engage in the grooves in the transfer case (4). Damage will otherwise occur. |
|
| 4 | Install in the reverse order. | ||
| 5 | Commission all-wheel drive control unit (N45). | When replacing the all-wheel drive control unit (N45). | |
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Perform engine test run; while doing so, check transfer case (4) for proper operation and leak tightness. |
COMPLETE TRANSFER CASE
| Number | Designation | Model 205, 206, 213, 217, 218, 222, 223, 238, 253, 257, 290 with transmission 725.0/1 with code M005 (Vehicles with 4MATIC/all-wheel drive) | |
|---|---|---|---|
| BA28.10-P-1010-01G | Bolt, control unit to transfer case | Nm | 24 |
