Remove/Install Fan Unit - AR20.40-P-5050MNL
Engine 176 in model 217, 222
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Remove left-hand air filter housing | AR09.10-P-1151MNL | |
| 2 | Remove right air filter housing | AR09.10-P-1152MNL | |
| 3 | Remove right and left upper engine compartment lining | ||
| 4.1 | Remove radiator grille | Engine 176 in model 222 | AR88.40-P-4001LF |
| 4.2 | Remove front bumper | Engine 176 in model 217 | AR88.20-P-2000LC |
| 5 | Remove front center reinforcement | AR62.30-P-1570LF | |

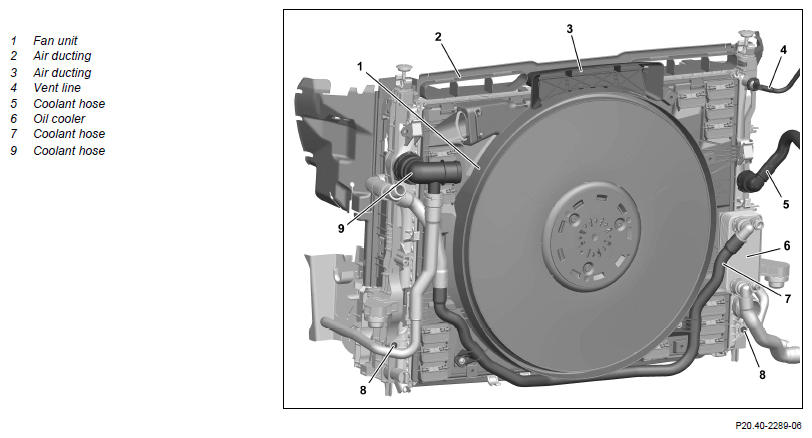

| 6 | Unclip air ducting (3) and air ducting (2) and place to one side | ||
| 7 | Drain off coolant | AR20.00-P-1142MNL | |
| 8 | Remove coolant hose (7) from fan unit (1) | ||
| 9 | Remove coolant hoses (5, 9) from cooler | AR20.20-P-7441-01RQ | |
| 10 | Detach bleed line (4) from cooler | AR20.20-P-7441-01RQ | |
| 11 | Release electrical connector of fan unit (1) and disconnect | ||
| 12 | Unclip oil cooler (6) and place to one side with lines still connected | Otherwise, the retaining clip of the oil cooler (6) will be damaged. If the retaining clip of the oil cooler (6) is damaged ↓ Fasten oil cooler (6) using repair bolt and washer. |
|
| 13 | Remove fan unit (1) upward | ||
| 14 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Perform an engine test run and check engine for proper operation and leaktightness | ||
| 16 | Install center and front lower engine compartment paneling | AR61.20-P-1105LF | |
| 17 | Install upper engine cover |
