Remove/Install Front Passenger Bench Seat Side Airbag - Ar91.60-D-0004TS

Model 907

with code S23 (Co-driver's seat double seat)

with code SH2 (Thorax/pelvis side-impact airbag, front passenger)

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Remove front passenger bench seat.	Model 907.6 with code D50 (Full-width partition wall) Model 907.6 with code D51 (Full-width partition wall with 1 window)	AR91.10-D-1035TS
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3	Detach ground line of on-board electrical system battery.	Before conducting any maintenance operations, switch off ignition, disconnect battery negative pole then wait for at least 3 minutes.	AR54.10-D-0029TS
4	Detach ground line from additional battery.	Model 907 with code E2I (Auxiliary battery for retrofit consumer, interior)	AR54.10-D-0004TS
		Model 907 with code E2M (Auxiliary battery for retrofit consumer, engine compartment) except code E2I (Auxiliary battery for retrofit consumer, interior)	AR54.10-D-0004TSR
5	Partially remove seat backrest cover on right side from front passenger bench seat until side airbag (4) is accessible.		AR91.10-D-1099TS

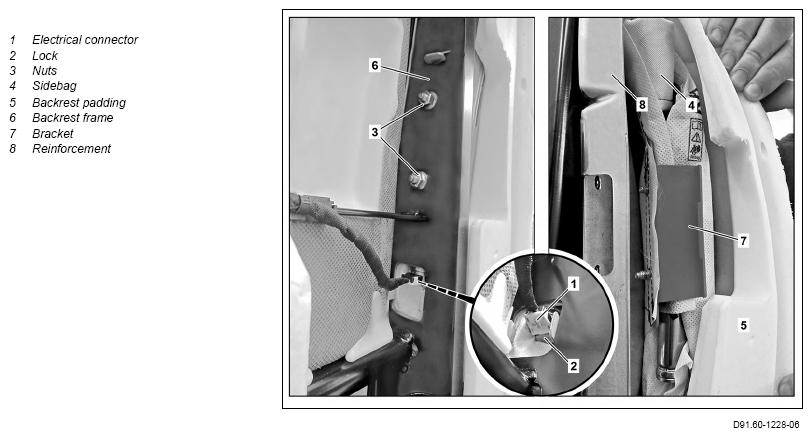

6	Release lock (2) using a suitable tool and disconnect electrical connector (1).
7	Remove nuts (3). Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		Nut, sidebag to backrest frame	*BA91.60-D-1006-01TS
8	Release seat backrest padding (5) from seat backrest frame (6) then remove side airbag (4) from seat backrest frame (6).
9	Remove holder (7) from side airbag (4).
10	Remove reinforcement (8).	If reinforcement (8) or seat backrest frame (6) is to be replaced. To do so, remove reinforcement (8) upwards out of lock.
11	Install in the reverse order.
