Remove/Install Panel On Right On Seat Frame Of Passenger Bench Seat - Ar91.21-D-5742TSK

MODEL 907.6/7

with code UR8 (Pass. compt. seats, 2seat bench 2nd row, luxury)

with code UR9 (3-passenger bench seat, Comfort, 3rd row)

with code US1 (2-passenger bench seat, comfort, 1st rear row)

with code UT4 (Passenger compartment seats, 2-passenger bench seat, 3rd row, Comfort)

with code UY1 (3-passenger bench seat, Comfort, 1st row, narrow)

with code UY2 (3-passenger bench seat, Comfort, 2nd row, narrow)

with code UY4 (3-passenger bench seat, Comfort, 1st row)

with code UY5 (3-passenger bench seat, Comfort, 2nd row)

MODEL 907.745

with code U3Y (3-passenger bench seat, Comfort, 3rd row, narrow)

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Remove passenger bench seat armrest.	Model 907.6/7 with code U74 (Wall side armrests) with code U75 (Aisle side armrests)	AR91.21-D-3301TS
2	Remove passenger bench seat backrest adjustment release lever trim.		AR91.21-D-3511TSK

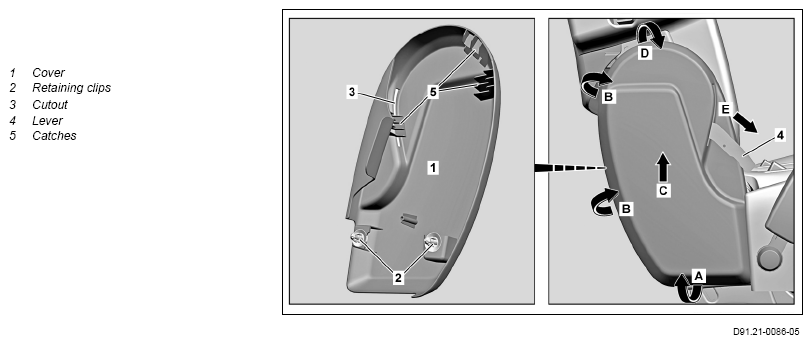

3	Partially remove trim (1).	Observe distance between lever (4) and notch (3). Otherwise, the trim (1) may be damaged. To do so, loosen trim (1) on seat frame (arrow A). Check retaining clips (2) for damage. Clip remover If the retaining clips (2) are damaged. ↓ Replace the retaining clips (2).	Fig 1
4	Remove trim (1).	Observe distance between lever (4) and notch (3). Otherwise, the trim (1) may be damaged. To do so, move trim (1) on seat frame from catches (5) in alphabetical order (arrows B, C, D, E). Make sure that the trim (1) is seated correctly.
5	Install in the reverse order

Fig 1: Clip Remover (452 589 01 63 00)
