Remove/Install Right Belt Buckle Of Passenger Bench Seat - Ar91.40-D-1489TS

MODEL 907.6/7

with code U60 (Seats passenger compartm. 2seater bench 1st row)

with code U61 (2-passenger bench seat, 2nd row)

with code U62 (Seats pass. comp. 3-seat bench 1st row narrow)

with code U63 (Seats passenger compartm. 3seater bench 2nd row)

with code U64 (Seat pass. comp. 3seat bench 3rd row)

with code U65 (Seats pass. comp. 3seat bench 1st row)

with code U69 (2-passenger bench seat, 3rd row)

with code UC3 (Pass. comp. seating, 3-seater bench/narrow 2nd row)

with code UD6 (Passenger seats, 4-seater bench 3rd row)

with code UR8 (Pass. compt. seats, 2seat bench 2nd row, luxury)

with code UR9 (3-passenger bench seat, Comfort, 3rd row)

with code US1 (2-passenger bench seat, comfort, 1st rear row)

with code UT4 (Passenger compartment seats, 2-passenger bench seat, 3rd row, Comfort)

with code UY1 (3-passenger bench seat, Comfort, 1st row, narrow)

with code UY2 (3-passenger bench seat, Comfort, 2nd row, narrow)

with code UY3 (4-passenger bench seat, Comfort, 3rd row)

with code UY4 (3-passenger bench seat, Comfort, 1st row)

with code UY5 (3-passenger bench seat, Comfort, 2nd row)

MODEL 907.745

with code U3S (Passenger compartment seats, 3-passenger bench seat, narrow, 3rd row)

with code U3Y (3-passenger bench seat, Comfort, 3rd row, narrow)

with code UD7 (Passenger compart. seating, 4-seater bench 4th row)

with code UY6 (4-passenger bench seat, Comfort, 4th row)

Shown with code U60 (Rear passenger compartment seats, 2-passenger bench seat, 1st row)

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install

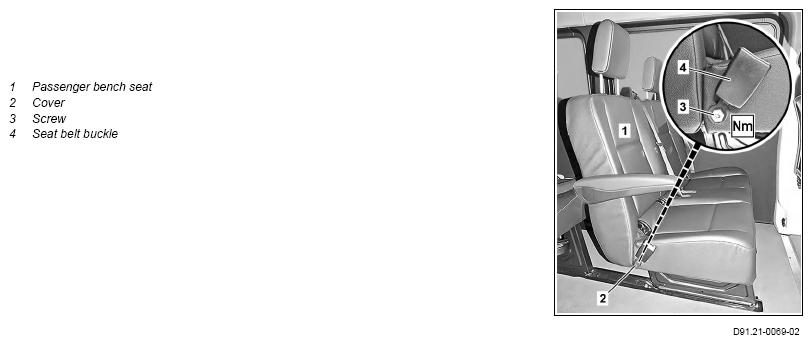

1	Remove passenger bench seat (1)	Model 907.6/7 with code UD6 (Passenger seats, 4-seater bench 3rd row) Model 907.6/7 with code UY3 (4-passenger bench seat, Comfort, 3rd row) Model 907.745 with code UD7 (Passenger compart. seating, 4-seater bench 4th row) Model 907.745 with code UY6 (4-passenger bench seat, Comfort, 4th row)	AR91.21-D-4425TS
2	Remove cover (2)	Long wedge	Fig 2
3	Remove seat belt buckle (4)
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
		For this, remove the screw (3). Bolt, seat belt buckle to seat frame for passenger bench seat	*BA91.40-N-1001-02TS
		Box wrench bit	Fig 1
4	Install in the reverse order
	Check
5	Carry out function check on seat belt buckle (4)

Number	Designation		Model 907.6/7
BA91.40-N-1001-02TS	Bolt, seat belt buckle to seat frame for passenger bench seat	Nm	40
