Disassemble/Assemble Engine Hood - Ar88.40-D-3002TS

Model 907

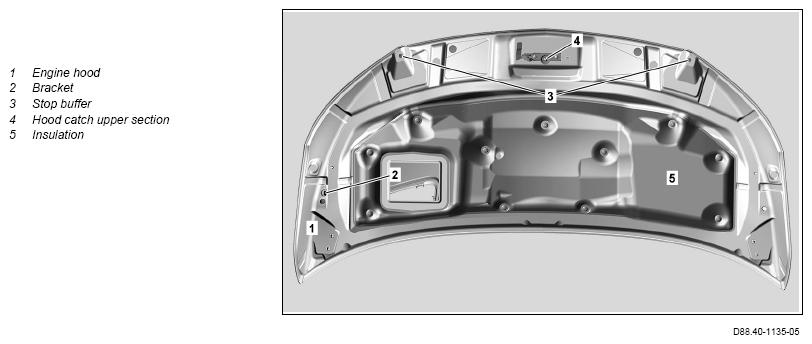

Shown on removed hood (1)

	Disassemble/assemble
1	Remove engine hood (1)		AR88.40-D-3000TS
2	Remove hood catch upper section (4)		AR88.40-D-3201TS
3	Remove insulation (5)		AR88.40-D-2546TS
4	Remove stop buffers (3)	Check stop buffers (3) for damage. Depending on findings ↓ Replace damaged stop buffers (3).
5	Remove bracket (2)	For this purpose, unclip bracket (2). Check bracket (2) for damage. Clip remover Depending on findings ↓ Replace damaged bracket (2).	Fig 1
6	Assemble in the reverse order

Fig 1: Clip Remover (452 589 01 63 00)
