Detach/Attach Seat Belt On Front Seat - Ar91.40-D-1030-01TS

Notes on carrying out repair work in the vehicle interior	H68.00-N-0001-01S
Notes on self-locking nuts and bolts	H00.00-N-0001-01A

Model 907

with code SB3 (Suspension seat, comfort version, driver's seat)

Model 907

with code SB4 (Suspension seat, comfort version, co-driver's seat)

Model 907

with code SL1 (Co-driver's seat)

SEAT BELT BUCKLE, SEAT BELT, SEAT BELT END FITTING, SEAT BELT HEIGHT ADJUSTER

Number	Designation		Model 907
BA91.40-N-1005-03TS	Bolt, seat belt end fitting on seat frame for front seat	Nm	35

Fig 1: Long Wedge (115 589 03 59 00)

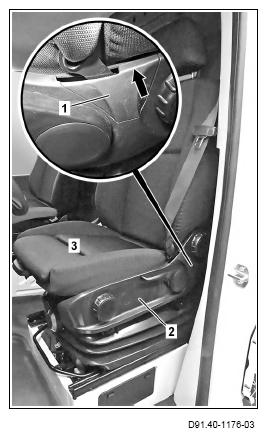

Remove cover (1) from panel (2) of front seat (3).
To do so, remove cover (1) in direction of arrow using long wedge.

Shown on vehicle with code SB3 (Comfort suspension seat version, driver's seat)

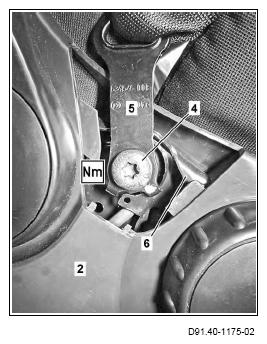

Remove bolt (4) at belt end fitting (5) .
Removal : Mark assembly position of seat belt end fitting (5) relative to seat frame (6).
Remove seat belt together with seat belt end fitting (5) and place outside working area.
Installation : Observe marked installation position of seat belt end fitting (5).
Install in the reverse order.
Shown on vehicle with code SB3 (Comfort suspension seat version, driver's seat)
