Notes on carrying out repair work in the vehicle interior |
|
AH68.00-N-0001-01S |
| |
Information on preventing damage to electronic components due to electrostatic discharge |
|
AH54.00-P-0001-01A |
  |
Remove/install |
|
|
| 1 |
Switch off ignition and store transmitter key outside of transmission range (min. 2 m). |
|
|
| 2 |
Remove left or right front door sill trim. |
|
AR68.30-D-1306TS |
| 3 |

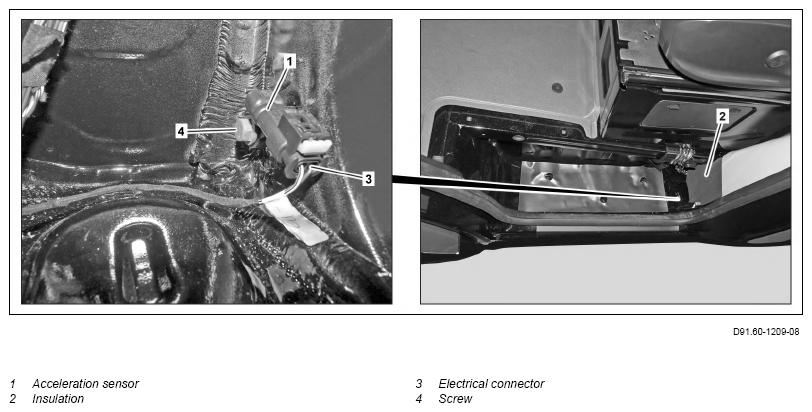

Remove insulation (2). |
|
|
| 4 |
Release and disconnect electrical connection (3). |
|
|
| 5 |
Unscrew screw (4) and remove acceleration sensor (1) from B-pillar. |
Screw, acceleration sensor to B-pillar |
*BA91.60-D-1002-01TS |
| 6 |
Install in the reverse order. |
|
|
