Remove/Install Airbag/Belt TENSIONER Control Unit - Ar91.60-D-0622TSR
Model 907
Shown with code H00 (Warm/cool air duct for passenger compartment)
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Detach ground line of on-board electrical system battery. | AR54.10-D-0029TS | |
| 2 | Detach ground line from additional battery. | Model 907 with code E2M (Auxiliary battery for retrofitted consumers, engine compartment) | AR54.10-D-0004TSR |
| Model 907 with code E2I (Auxiliary battery for retrofitted consumers, interior) |
AR54.10-D-0004TS | ||
| 3 | Remove trim (8). | AR68.10-D-0001TS | |

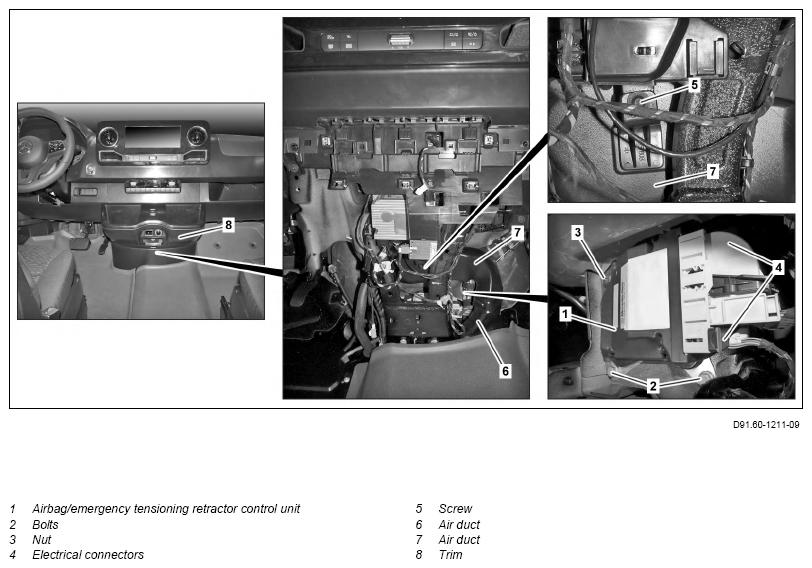

| 4 | Remove screw (5) and remove air ducts (6, 7). | Model 907 with code H00 (Hot/cool air duct to passenger compartment) |
|
| 5 | Remove screw/bolts (2). | *BA91.60-D-1001-01TS | |
| 6 | Remove nut (3). | *BA91.60-D-1003-01TS | |
| 7 | Remove airbag/seat belt tensioner control unit (1) far enough until the electrical connectors (4) are accessible. | ||
| 8 | Release and disconnect the electrical connections (4). | ||
| 9 | Remove airbag/seat belt tensioner control unit (1). | ||
| 10 | Install in the reverse order. | ||
| 11 | Commission airbag/seat belt tensioner control unit (1). | If the airbag/seat belt tensioner control unit (1) was replaced. | |
| AD00.00-D-2000-06TS |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA91.60-D-1001-01TS | Screw, airbag/seat belt tensioner control unit to mounting support | Nm | 8 |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA91.60-D-1003-01TS | Nut, airbag/seat belt tensioner control unit to mounting support | Nm | 8 |
