Remove/Install Front Passenger Bench Seat - Ar91.10-D-1035TS

Model 907

with code S23 (Co-driver's seat double seat)

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Detach ground line of on-board electrical system battery. Before conducting any maintenance operations, switch off ignition, disconnect battery negative pole then wait for at least 3 minutes.		AR54.10-D-0029TS
3	Detach ground line from additional battery.	Model 907 with code E2I (Auxiliary battery for retrofit consumer, interior)	AR54.10-D-0004TS
		Model 907 with code E2M (Auxiliary battery for retrofit consumer, engine compartment) except code E2I (Auxiliary battery for retrofit consumer, interior)	AR54.10-D-0004TSR

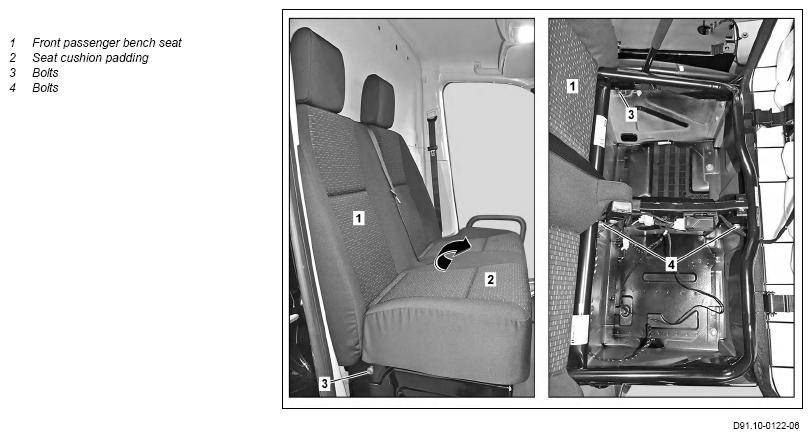

4	Fold seat cushion padding (2) forward.

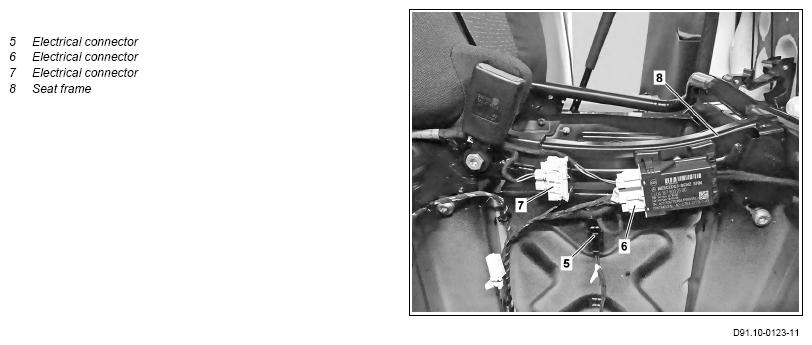

5	Disconnect electrical connectors (5, 6).	Model 907 with code H15 (Seat heating for front passenger)
6	Detach electrical connector (7).	Model 907 with code SA6 (Front passenger airbag) model 907 with code SH2 (Front passenger thorax/pelvis side airbag)
7	Disconnect electrical connector of seat belt warning system for front passenger seat.	Model 907 with code J55 (Seat belt warning system for front passenger seat)
8	Remove screw/bolts (3).	Bolt, front passenger bench seat to seat base	*BA91.10-N-1003-01TS
9	Remove screws/bolts (4).	Bolt, front passenger bench seat to seat base	*BA91.10-N-1003-01TS
10	Fold back seat cushion padding (2).	The seat cushion padding (2) must be engaged at the seat frame (8) of the front passenger bench seat (1).
11	Remove front passenger bench seat (1).	Aid of helper required.
12	Install in the reverse order.

FRONT SEATS

Number	Designation		Model 907
BA91.10-N-1003-01TS	Bolt, front passenger bench seat to seat base	Nm	39
