Remove/Install Front Passenger Bench Seat Occupancy Recognition - Ar91.60-D-0009TS
Model 907
with code J55 (Seat belt warning system for front passenger seat)
with code S23 (Co-driver's seat double seat)
Shown with code H15 (Seat heating for front passenger) and code SH2 (Front passenger thorax/pelvis side airbag)
Shown with code H15 (Seat heating for front passenger)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Detach ground line of on-board electrical system battery. | Model 907 with code SH2 (Front passenger thorax/pelvis side airbag) | AR54.10-D-0029TS |
| 3 | Detach ground line from additional battery. | Model 907 with code E2I (Auxiliary battery for retrofit consumers, vehicle interior) and code SH2 (Front passenger thorax/pelvis side airbag) | AR54.10-D-0004TS |
| Model 907 with code E2M (Auxiliary battery for retrofit consumers, engine compartment) and code SH2 (Front passenger thorax/pelvis side airbag) except code E2I (Auxiliary battery for retrofit consumers, vehicle interior) | AR54.10-D-0004TSR | ||
| 4 | Remove seat cushion padding from front passenger bench seat. | AR91.10-D-5036TS | |

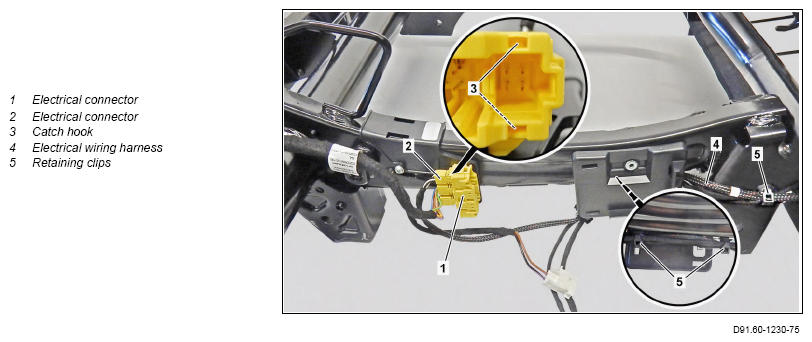

| 5 | Release electrical connector (1) and disconnect. | ||
| 6 | Detach electrical connector (2) from electrical connector (1). | ||
| 7 | Remove the electrical wiring harness (4). | If the retaining clips (5) or the brackets (6) are damaged, Replace retaining clips (5) or brackets (6). |
Fig 1 |

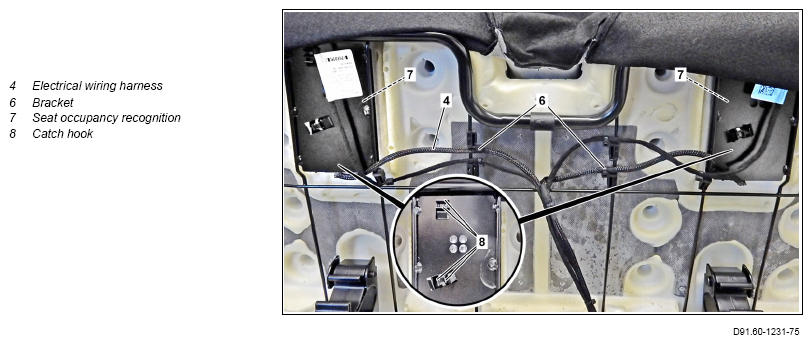

| 8 | Release catch hooks (8) and remove seat occupancy recognition (7). | ||
| 9 | Install in the reverse order. |
