Remove/Install Front Seat Backrest Padding - Ar91.10-D-0003TSK

Model 907

except code SHI (Thorax/pelvis side-impact airbag, driver)

except code SH2 (Thorax/pelvis side-impact airbag, front passenger)

Shown with code H16 (Seat heating for driver)

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove

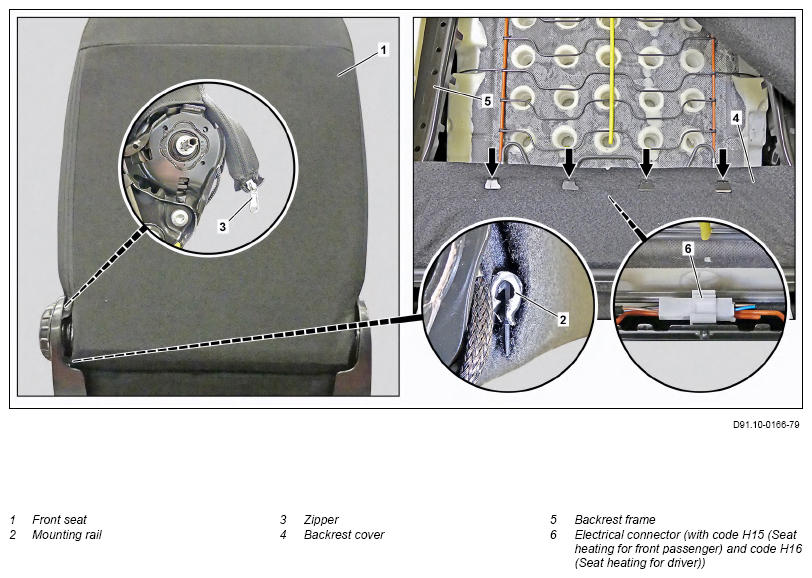

1	Adjust front seat (1).	Until the mounting rail (2) and zipper (3) are accessible.
2	Remove head restraint guides from front seat (1).		AR91.16-D-0051TS
3	Remove armrest.	Model 907 with code S22 (Armrest for driver's seat) model 907 with code S25 (Armrest for front passenger seat)	AR91.10-D-3326TS
4	Remove mounting rail (2).	Extraction hook	Fig 1
5	Completely open zipper (3).
6	Remove seat backrest cover (4) from seat backrest frame (5).
7	Disconnect electrical connection (6).	Model 907 with code H15 (Seat heater for front passenger) Model 907 with code H16 (Seat heater for driver) To do so, unlock the electrical connection (6).
8	Remove seat backrest padding (7) with seat backrest cover (4).

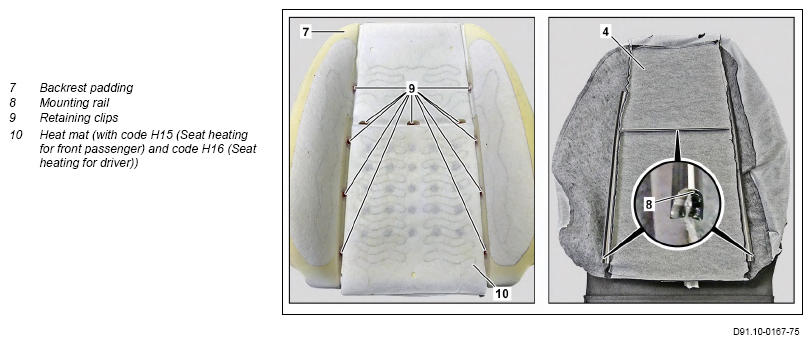

9.1	Remove seat backrest cover (4) from seat backrest padding (7).	Model 907 except code H15 (Seat heating for front passenger) except code H16 (Seat heating for driver) If the seat backrest cover (4) or the seat backrest padding (7) is replaced. To do so, unclip mounting rails (8) of seat backrest cover (4) at retaining clips (9) of seat backrest padding (7).
9.2	Remove seat backrest cover (4) from seat backrest padding (7).	Model 907 with code H15 (Seat heater for front passenger) Model 907 with code H16 (Seat heater for driver) If the seat backrest cover (4), seat backrest padding (7) or heat mat (10) is replaced. To do so, unclip mounting rails (8) of seat backrest cover (4) at retaining clips (9) of seat backrest padding (7). If the heat mat (10) is replaced. ↓ Dispose of seat backrest padding (7) and heat mat (10) properly.
	Install
10	Install heat mat (10) on seat backrest padding (7).	If the heat mat (10) on the seat backrest padding (7) is replaced. Model 907 with code H15 (Seat heater for front passenger) Model 907 with code H16 (Seat heater for driver) Use new seat backrest padding (7) and heat mat (10).	AR91.30-D-0008TS
11	Attach seat backrest cover (4) to seat backrest	If the seat backrest cover (4), seat backrest padding (7) or heat mat (10) is replaced. To do so, clip in mounting rails (8) of seat backrest cover (4) at retaining clips (9) of seat backrest padding (7). Check retaining clips (9). Ensure that the seat backrest cover (4) is correctly seated on the seat backrest padding (7). If a retaining clip (9) is damaged. Replace seat backrest padding (7).
12	Install seat backrest padding (7) with seat backrest cover (4).	Ensure that the seat backrest cover (4) and seat backrest padding (7) are seated correctly.
13	Connect electrical connector (6).	Model 907 with code H15 (Seat heater for front passenger) Model 907 with code H16 (Seat heater for driver)
14	Attach seat backrest cover (4) to seat backrest frame (5).
15	Close zipper (3).
16	Attach mounting rail (2).
17	Install armrest.	Model 907 with code S22 (Armrest for driver's seat) model 907 with code S25 (Armrest for front passenger seat)	AR91.10-D-3326TS
18	Install head restraint guides on front seat (1).		AR91.16-D-0051TS
19	Adjust front seat (1).	Set to original position.

Fig 1: Extraction Hook (140 589 02 33 00)
