Remove/Install Front Seat Cushion Padding - Ar91.10-D-5040TS

Model 907

except code h15 (Seat heater for front passenger)

except code h16 (Seat heater for driver)

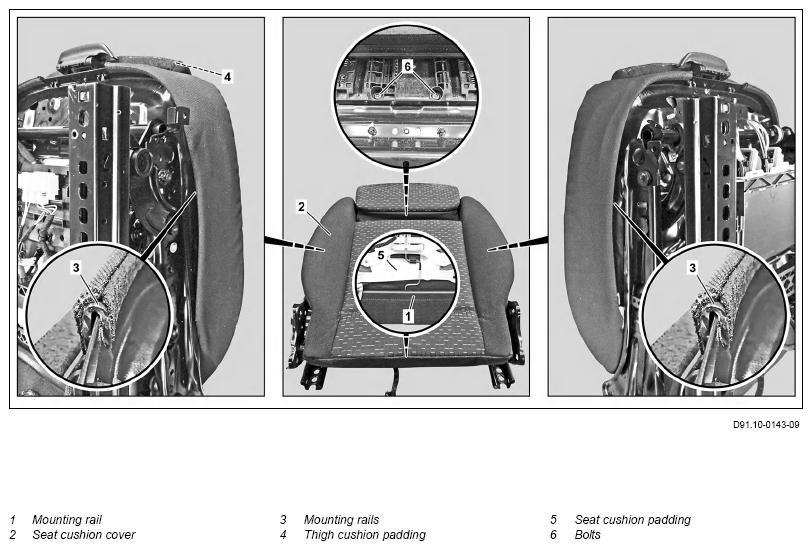

G13791989

Shown with code SF1 (Electrically adjustable driver's seat) and removed seat backrest

Shown with code SL1 (Front passenger seat)

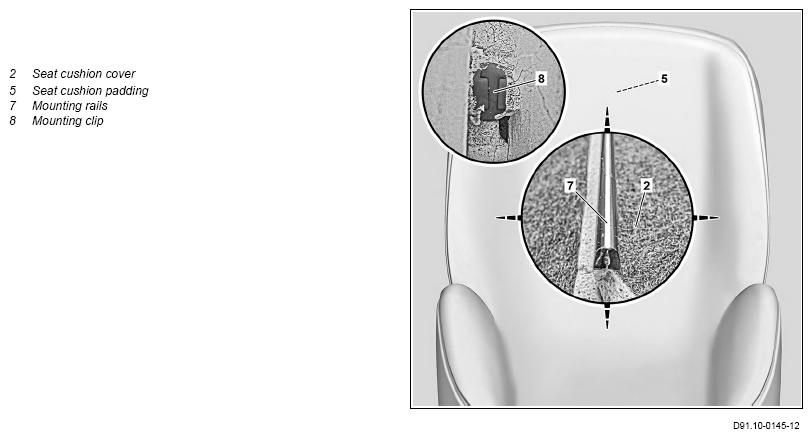

G13791990

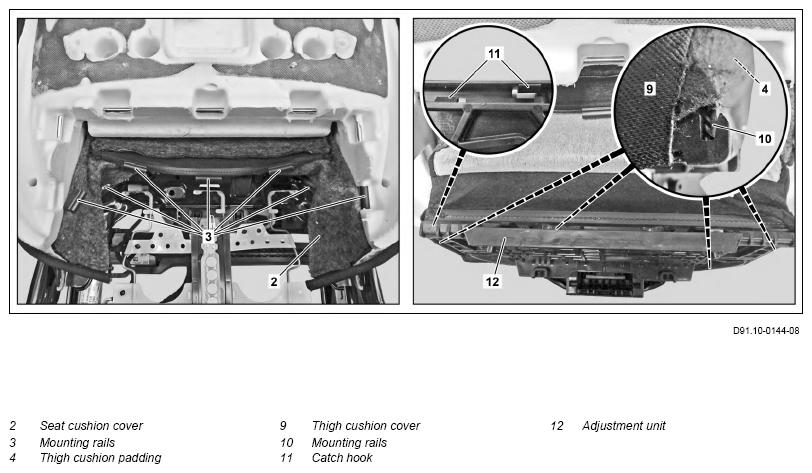

G13791991

Shown with CODE SB1 (Comfort driver seat)

  Notes on carrying out repair work in the vehicle interior   AH68.00-N-0001-01S
REMOVINGINSTALLING Remove/install
1 Remove outer trim from seat frame Model 907 except code SF1 (Electrically adjustable driver's seat) except code SF2 (Electrically adjustable front passenger seat) except code SL1 (Front passenger seat) AR91.10-D-1201TS
Model 907 with code SL1 (Front passenger seat) except code SF1 (Electrically adjustable driver's seat) except code SF2 (Electrically adjustable front passenger seat) AR91.10-D-1201TSB
Model 907 with code SF1 (Electrically adjustable driver's seat) Model 907 with code SF2 (Electrically adjustable front passenger seat) AR91.10-D-1201TSK
2 Remove inner trim from seat frame   AR91.10-D-1202TS
3 Remove front seat   AR91.10-D-1000TS
4 Detach mounting rail (1) of seat cushion cover (2) SPECIAL TOOL Extraction hook Fig 1
5.1 Detach mounting rail (3) of seat cushion cover (2) completely Model 907 except code SB1 (Comfort driver's seat) except code SB2 (Comfort front passenger seat) except code SB3 (Comfort suspension seat, driver' seat) except code SF1 (Electrically adjustable driver's seat) except code SF2 (Electrically adjustable front passenger seat)
SPECIAL TOOL Extraction hook		 Fig 1
5.2 Detach mounting rails (3) of seat cushion cover (2) on left and right Model 907 with code SB1 (Comfort driver's seat) Model 907 with code SB2 (Comfort front passenger seat) Model 907 with code SB3 (Comfort suspension seat, driver's seat) Model 907 with code SF1 (Electrically adjustable driver's seat) Model 907 with code SF2 (Electrically adjustable front passenger seat)
SPECIAL TOOL Extraction hook		 Fig 1
6 Move adjustable thigh cushion padding (4) to frontmost position Model 907 with code SB1 (Comfort driver's seat) Model 907 with code SB2 (Comfort front passenger seat) Model 907 with code SB3 (Comfort suspension seat, driver's seat) Model 907 with code SB4 (Comfort suspension seat, front passenger seat) Model 907 with code SF1 (Electrically adjustable driver's seat) Model 907 with code SF2 (Electrically adjustable front passenger seat)
7 Remove seat cushion padding (5) with seat cushion cover (2) IMPORTANT Model 907 with code SB1 (Comfort driver's seat) Model 907 with code SB2 (Comfort front passenger seat) Model 907 with code SB3 (Comfort suspension seat, driver's seat) Model 907 with code SB4 (Comfort suspension seat, front passenger seat) Model 907 with code SF1 (Electrically adjustable driver's seat) Model 907 with code SF2 (Electrically adjustable front passenger seat) Fold over the seat cushion padding (5) with seat cushion cover (2) until the screws (6) are accessible.
INSTALLATION IMPORTANT Ensure that the seat cushion cover (2) and the seat cushion padding (5) are correctly seated.
8 Detach thigh cushion padding (4) with adjustment unit (12) Model 907 with code SB1 (Comfort driver's seat) Model 907 with code SB2 (Comfort front passenger seat) Model 907 with code SB3 (Comfort suspension seat, driver's seat) Model 907 with code SB4 (Comfort suspension seat, front passenger seat) Model 907 with code SF1 (Electrically adjustable driver's seat) Model 907 with code SF2 (Electrically adjustable front passenger seat)
IMPORTANT To do so, unscrew the screws (6) and remove the thigh cushion padding (4) with adjustment unit (12) from the catches in a forward direction.
9 Detach seat cushion cover (2) from seat cushion padding (5) When replacing seat cushion padding (5) or seat cushion cover (2).
IMPORTANT To do so, unclip the mounting rails (7) from the retaining clips (8) of the seat cushion padding (5).
INSTALLATION IMPORTANT : Ensure that the seat cushion cover (2) is correctly seated on the seat cushion padding (5). Check the retaining clips (8).
If retaining clips (8) are damaged
Install new seat cushion padding (5).
10 Detach thigh cushion padding (4) from adjustment unit (12) Model 907 with code SB1 (Comfort driver's seat) Model 907 with code SB2 (Comfort front passenger seat) Model 907 with code SB3 (Comfort suspension seat, driver's seat) Model 907 with code SB4 (Comfort suspension seat, front passenger seat) Model 907 with code SF1 (Electrically adjustable driver's seat) Model 907 with code SF2 (Electrically adjustable front passenger seat)
IMPORTANT To do so, unclip the mounting rails (10) of the thigh cushion cover (9) from the catch hooks (11) of the adjustment unit (12).
INSTALLATION IMPORTANT Ensure that the thigh cushion cover (9) is correctly seated on the thigh cushion padding (4).
  Install in the reverse order
INSPECT Check
12 Perform function check on front seat
Fig 1: Extraction Hook (140 589 02 33 00)
G13791992
