Remove/Install Head Restraint Guides For Front Passenger Bench Seat - Ar91.16-D-0055TS

Model 907

with code S23 (Co-driver's seat double seat)

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Remove respective head restraint on front passenger bench seat (1).		AR91.16-D-0041TS

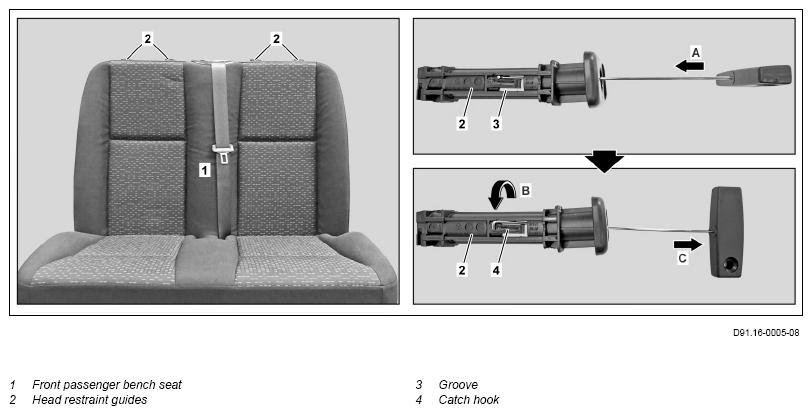

2	Remove head restraint guides (2).	Observe assembly positions of head restraint guides (2). Otherwise, the head restraint guides (2) may not lock correctly. WIS Service Media  wsm://04_201900_02  To do so, on each head restraint guide (2) insert an extraction hook (3) into the groove (arrow A), release the catch hooks (4) (arrows B, C) and remove head restraint guide (2) upwards. Removal  : The catch hooks (4) must remain unlocked to do so. Installation  : The head restraint guides (2) must lock properly. Extraction hook If head restraint guides (2) are not correctly locked: ↓ Correct assembly position or lock head restraint guides (2).	Fig 1
3	Install in the reverse order.

Fig 1: Extraction Hook (140 589 02 33 00)
