Remove/Install Head Restraint Guides For Passenger Seat Bench - Ar91.16-D-2805TS

MODEL 907.6/7

with code U60 (Seats passenger compartm. 2seater bench 1st row)

with code U61 (2-passenger bench seat, 2nd row)

with code U62 (Seats pass. comp. 3-seat bench 1st row narrow)

with code U63 (Seats passenger compartm. 3seater bench 2nd row)

with code U64 (Seat pass. comp. 3seat bench 3rd row)

with code U65 (Seats pass. comp. 3seat bench 1st row)

with code U69 (2-passenger bench seat, 3rd row)

with code UC3 (Pass. comp. seating, 3-seater bench/narrow 2nd row)

with code UD6 (Passenger seats, 4-seater bench 3rd row)

with code UR8 (Pass. compt. seats, 2seat bench 2nd row, luxury)

with code UR9 (3-passenger bench seat, Comfort, 3rd row)

with code US1 (2-passenger bench seat, comfort, 1st rear row)

with code UT4 (Passenger compartment seats, 2-passenger bench seat, 3rd row, Comfort)

with code UY1 (3-passenger bench seat, Comfort, 1st row, narrow)

Model 907.6/7

with code UY2 (3-passenger bench seat, Comfort, 2nd row, narrow)

with code UY3 (4-passenger bench seat, Comfort, 3rd row)

with code UY4 (3-passenger bench seat, Comfort, 1st row)

with code UY5 (3-passenger bench seat, Comfort, 2nd row)

MODEL 907.745

with code U3S (Passenger compartment seats, 3-passenger bench seat, narrow, 3rd row)

with code U3Y (3-passenger bench seat, Comfort, 3rd row, narrow)

with code UD7 (Passenger compart. seating, 4-seater bench 4th row)

with code UY6 (4-passenger bench seat, Comfort, 4th row)

Shown with code U60 (Passenger compartment seats, 2-passenger bench seat, 1st row) except code FF0 (Clothes hook in passenger compartment)

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Remove respective head restraint from passenger bench seat (1).		AR91.16-D-2660TS

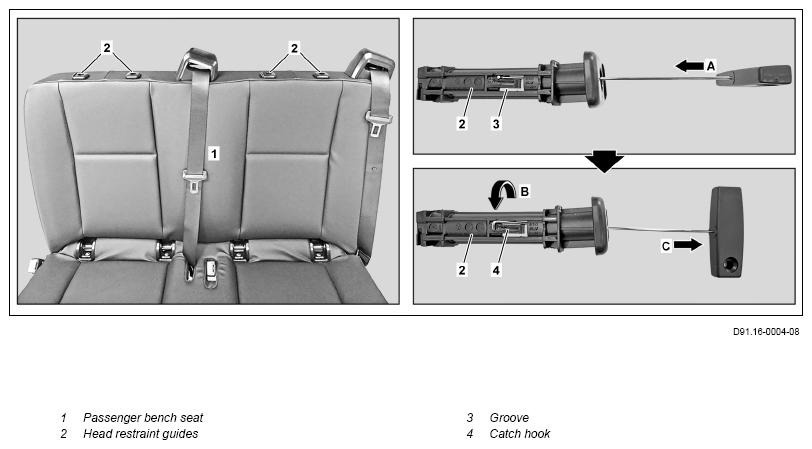

2	Remove head restraint guides (2).	Observe assembly positions of head restraint guides (2). Otherwise, the head restraint guides (2) may not lock correctly. WIS Service Media  wsm://04_201900_02  To do so, insert extraction hook into groove (3) at each head restraint guide (2) (arrow A), release catch hooks (4) (arrows B, C) and remove head restraint guides (2) in upward direction. Removal  : The catch hooks (4) must remain unlocked to do so. Installation  : The head restraint guides (2) must lock properly. Extraction hook If head restraint guides (2) are not correctly locked: ↓ Correct assembly position or lock head restraint guides (2).	Fig 1
3	Remove coat hooks from head restraint guides (2).	Model 907.6/7 with code FF0 (Coat hook in passenger compartment) When replacing the head restraint guides (2) or coat hooks. To do this, use a suitable tool to unclip coat hooks on head restraint guides (2).
4	Install in the reverse order.
