Remove/Install Head Restraint On Passenger Bench Seat - Ar91.16-D-2660TS

MODEL 907.6/7

with code U60 (Seats passenger compartm. 2seater bench 1st row)

with code U61 (2-passenger bench seat, 2nd row)

with code U62 (Seats pass. comp. 3-seat bench 1st row narrow)

with code U63 (Seats passenger compartm. 3seater bench 2nd row)

with code U64 (Seat pass. comp. 3seat bench 3rd row)

with code U65 (Seats pass. comp. 3seat bench 1st row)

with code U69 (2-passenger bench seat, 3rd row)

with code UC3 (Pass. comp. seating, 3-seater bench/narrow 2nd row)

with code UD6 (Passenger seats, 4-seater bench 3rd row)

with code UR8 (Pass. compt. seats, 2seat bench 2nd row, luxury)

with code UR9 (3-passenger bench seat, Comfort, 3rd row)

with code US1 (2-passenger bench seat, comfort, 1st rear row)

with code UT4 (Passenger compartment seats, 2-passenger bench seat, 3rd row, Comfort)

with code UY1 (3-passenger bench seat, Comfort, 1st row, narrow)

with code UY2 (3-passenger bench seat, Comfort, 2nd row, narrow)

with code UY3 (4-passenger bench seat, Comfort, 3rd row)

with code UY4 (3-passenger bench seat, Comfort, 1st row)

with code UY5 (3-passenger bench seat, Comfort, 2nd row)

MODEL 907.745

with code U3S (Passenger compartment seats, 3-passenger bench seat, narrow, 3rd row)

with code U3Y (3-passenger bench seat, Comfort, 3rd row, narrow)

with code UD7 (Passenger compart. seating, 4-seater bench 4th row)

with code UY6 (4-passenger bench seat, Comfort, 4th row)

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install

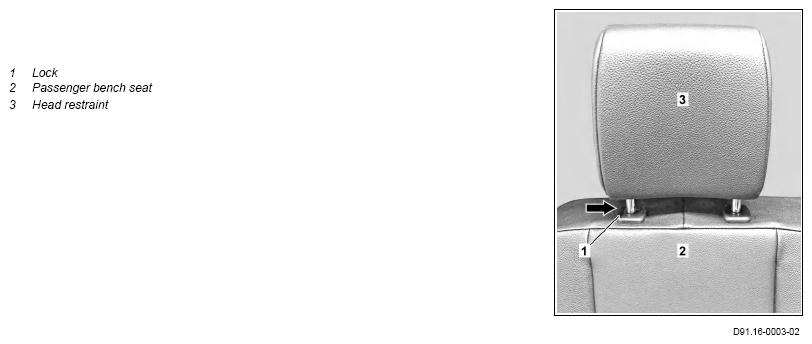

1	Release lock (1) on head restraint guide of passenger bench seat (2)	To do so, press lock (1) (arrow).
2	Remove head restraint (3) upward
3	Install in the reverse order
