Remove/Install Heated Seat Switch - Ar91.30-D-0080TS
Model 907
with code H15 (Seat heater for front passenger)
with code H16 (Seat heater for driver)
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove respective front door trim. | AR72.10-D-6575TS | |

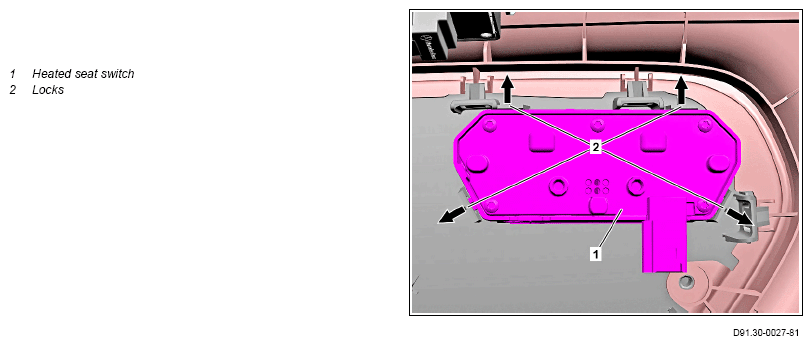

| 3 | Remove seat heating switch (i). | Release locks (2) until it is possible to pass by the catch hook. Otherwise, the locks (2) will be damaged. |
|
| 4 | Install in the reverse order. | ||
| Check | |||
| 5 | Carry out function check of seat heating switch (1). |
