Remove/Install Passenger Bench Seat Backrest Shell I - Ar91.21-D-0016TSK
MODEL 907.6/7
with code UR8 (Pass. compt. seats, 2seat bench 2nd row, luxury)
with code UR9 (3-passenger bench seat, Comfort, 3rd row)
with code US1 (2-passenger bench seat, comfort, 1st rear row)
with code UT4 (Passenger compartment seats, 2-passenger bench seat, 3rd row, Comfort)
with code UY1 (3-passenger bench seat, Comfort, 1st row, narrow)
with code UY2 (3-passenger bench seat, Comfort, 2nd row, narrow)
with code UY4 (3-passenger bench seat, Comfort, 1st row)
with code UY5 (3-passenger bench seat, Comfort, 2nd row)
MODEL 907.745
with code U3Y (3-passenger bench seat, Comfort, 3rd row, narrow)
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Set seat backrest of passenger bench seat to upright position. | ||
| 2 | Remove left trim on seat frame of passenger bench seat. | If the left seat backrest shell is removed. | AR91.21-D-5741TSK |
| 3 | Remove right trim on seat frame of passenger bench seat. | If the right seat backrest shell is removed. | AR91.21-D-5742TSK |
| 4 | Remove trim on passenger bench seat frame. | AR91.21-D-5743TSK | |

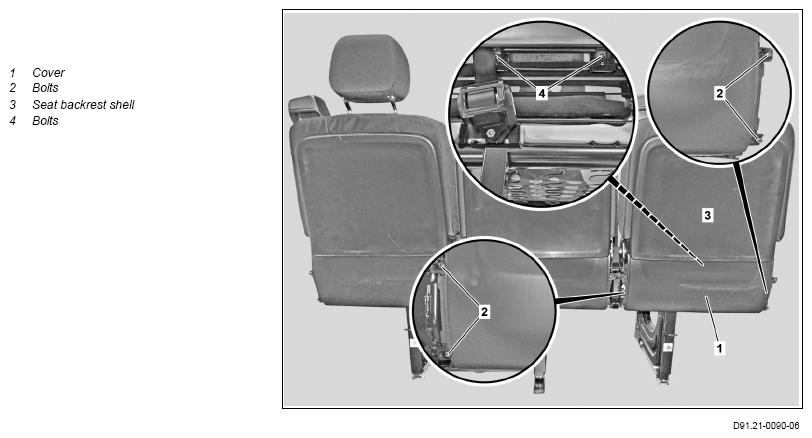

| 5 | Remove trim (1). | ||
| 6 | Unscrew screw/bolts (4). | ||
| 7 | Remove seat backrest shell (3). | ||
| 8 | Install in the reverse order |
