Remove/Install Passenger Bench Seat Cushion Padding - Ar91.21-D-0001TSS

MODEL 907.6/7

with code U60 (Seats passenger compartm. 2seater bench 1st row)

with code U61 (2-passenger bench seat, 2nd row)

with code U62 (Seats pass. comp. 3-seat bench 1st row narrow)

with code U63 (Seats passenger compartm. 3seater bench 2nd row)

with code U64 (Seat pass. comp. 3seat bench 3rd row)

with code U65 (Seats pass. comp. 3seat bench 1st row)

with code U69 (2-passenger bench seat, 3rd row)

with code UC3 (Pass. comp. seating, 3-seater bench/narrow 2nd row)

with code UD6 (Passenger seats, 4-seater bench 3rd row)

MODEL 907.745

with code U3S (Passenger compartment seats, 3-passenger bench seat, narrow, 3rd row)

with code UD7 (Passenger compart. seating, 4-seater bench 4th row)

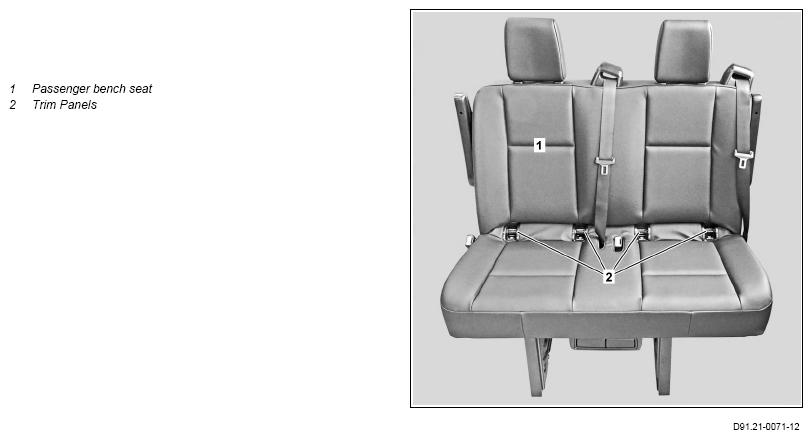

Shown with code U60 (Rear passenger compartment seats, 2-passenger bench seat, 1st row)

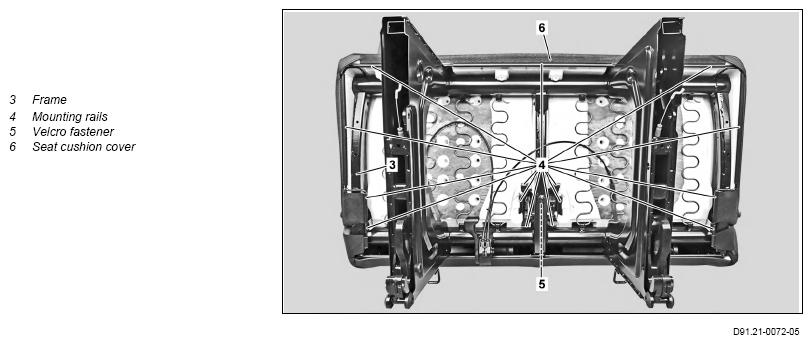

Shown with code U60 (Rear passenger compartment seats, 2-passenger bench seat, 1st row)

Shown with code U60 (Rear passenger compartment seats, 2-passenger bench seat, 1st row)

Shown with code U60 (Rear passenger compartment seats, 2-passenger bench seat, 1st row)

	Remove/install
1	Remove passenger bench seat (1)		AR91.21-D-4425TS
2	Remove left seat belt buckle of passenger bench seat (1)		AR91.40-D-1487TS
3	Remove center seat belt buckle of passenger bench seat (1)	Model 907.6/7 with code U62 (Seats pass. comp. 3-seat bench 1st row narrow) Model 907.6/7 with code U63 (Seats passenger compartm. 3seater bench 2nd row) Model 907.6/7 with code U64 (Seat pass. comp. 3seat bench 3rd row) Model 907.6/7 with code U65 (Seats pass. comp. 3seat bench 1st row) Model 907.6/7 with code UC3 (Pass. comp. seating, 3-seater bench/narrow 2nd row) Model 907.6/7 with code UD6 (Passenger seats, 4-seater bench 3rd row) Model 907.745 with code U3S (Passenger compartment seats, 3-passenger bench seat, narrow, 3rd row) Model 907.745 with code UD7 (Passenger compart. seating, 4-seater bench 4th row) Model 907.6/7 with code UD6 (Passenger seats, 4-seater bench 3rd row) Model 907.745 with code UD7 (Passenger compart. seating, 4-seater bench 4th row) Removal  : Remove both center seat belt buckles.	AR91.40-D-1488TS
4	Remove right seat belt buckle of passenger bench seat (1)		AR91.40-D-1489TS
5	Remove all seat belt end fittings of passenger bench seat (1)		AR91.40-D-1030-02TS
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		Bolt, seat belt end fitting to seat frame for passenger bench seat	*BA91.40-N-1002-02TS
		Long wedge	Fig 1
6	Remove trims (2)	For this, remove trims (2) upwards. Long wedge	Fig 1
7	Remove cover from seat backrest	For this, remove seat backrest cover. The cover is located on the back of the seat backrest under the seat backrest cover.	AR91.21-D-0002TSS

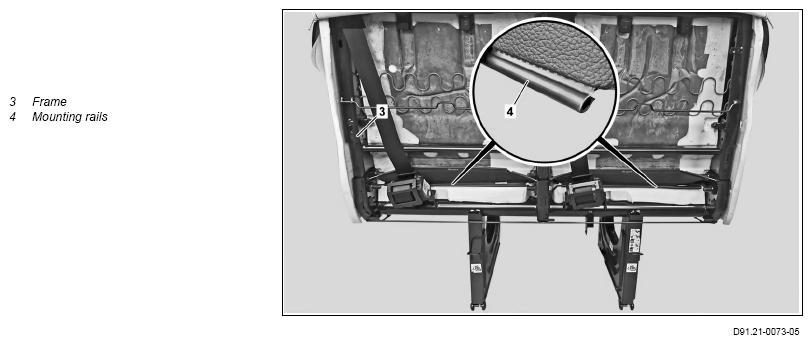

8	Remove mounting rails (4) on frame (3)	Extraction hook	Fig 2
9	Remove seat cushion padding (7) with sea cushion cover (6)	Installation  : Ensure that the seat cushion cover (6) and seat cushion padding (7) are correctly seated.

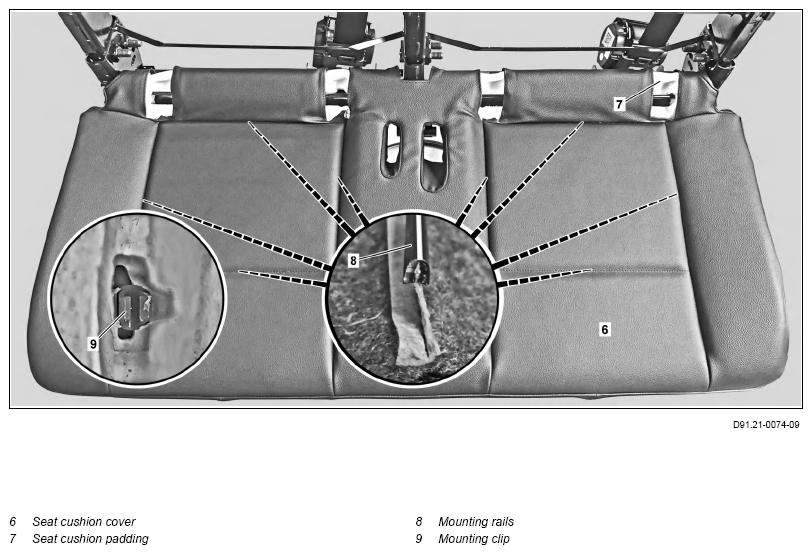

10	Remove seat cushion cover (6) from seat cushion padding (7)	When replacing the seat cushion padding (7) or the seat cushion cover (6). To do so, open velcro fastener (5) and unclip mounting rails (8) at retaining clips (9) of seat cushion padding (7). Installation  : Ensure that the seat cushion cover (6) is correctly seated on the seat cushion padding (7). Check retaining clips (9). If the retaining clips (9) are damaged ↓ Replace seat cushion padding (7).
11	Install in the reverse order

Number	Designation		Model 907.6/7
BA91.40-N-1002-02TS	Bolt, seat belt end fitting to seat frame for passenger bench seat	Nm	40
