Remove/Install Seat Backrest Padding Of Passenger Bench Seat With Seat Backrest Adjustment - Ar91.21-D-0013TSK

MODEL 907.6/7

with code UR8 (Pass. compt. seats, 2seat bench 2nd row, luxury)

with code UR9 (3-passenger bench seat, Comfort, 3rd row)

with code US1 (2-passenger bench seat, comfort, 1st rear row)

with code UT4 (Passenger compartment seats, 2-passenger bench seat, 3rd row, Comfort)

with code UY1 (3-passenger bench seat, Comfort, 1st row, narrow)

with code UY2 (3-passenger bench seat, Comfort, 2nd row, narrow)

with code UY4 (3-passenger bench seat, Comfort, 1st row)

with code UY5 (3-passenger bench seat, Comfort, 2nd row)

MODEL 907.745

with code U3Y (3-passenger bench seat, Comfort, 3rd row, narrow)

Shown on right backrest

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove
1	Remove passenger bench seat.		AR91.21-D-4425TS
2	Remove head restraint guides from passenger bench seat.		AR91.16-D-2805TS
3	Remove passenger bench seat armrest.	Model 907.6/7 with code U74 (Wall side armrests) with code U75 (Aisle side armrests)	AR91.21-D-3301TS
4	Remove passenger bench seat belt end fittings.		AR91.40-D-1030-02TS
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		Long wedge	Fig 1
5	Remove trims of right seat belt guide.		AR91.40-D-1207TS
6	Remove trims of center seat belt guide.	Model 907.6/7 with code UR9 (3-passenger bench seat, Comfort, 3rd row) Model 907.6/7 with code UY1 (3-passenger bench seat, Comfort, 1st row, narrow) Model 907.6/7 with code UY2 (3-passenger bench seat, Comfort, 2nd row, narrow) Model 907.6/7 with code UY4 (3-passenger bench seat, Comfort, 1st row) Model 907.6/7 with code UY5 (3-passenger bench seat, Comfort, 2nd row) Model 907.745 with code U3Y (3-passenger bench seat, Comfort, 3rd row, narrow)	AR91.40-D-1208TS
7	Remove trims of left seat belt guide.		AR91.40-D-1209TS
8	Remove passenger bench seat backrest shell.		AR91.21-D-0016TSK

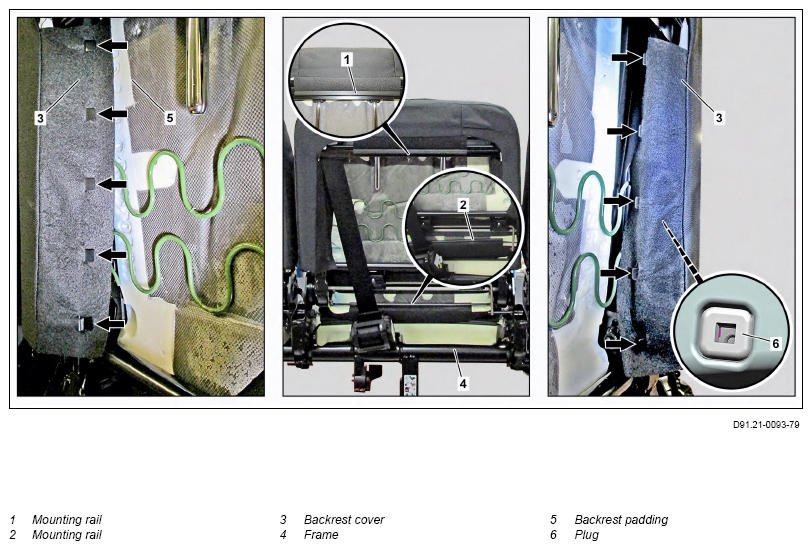

9	Remove mounting rails (1, 2).	Extraction hook	Fig 2
10	Remove seat backrest cover (3) from frame (4).
11	Remove seat backrest padding (5) with seat backrest cover (3).
12	Remove stop plugs (6) on frame (4) for armrests.	Model 907.6/7 with code U74 (Wall side armrests) with code U75 (Aisle side armrests) When replacing the passenger bench seat.

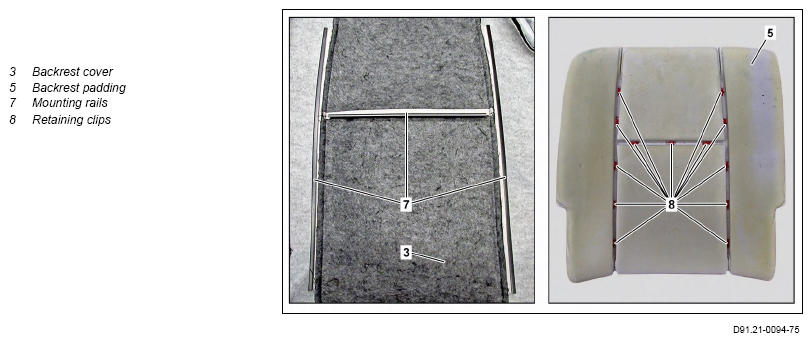

13	Remove seat backrest cover (3) from seat backrest padding (5).	When replacing the seat backrest padding (5) or the seat backrest cover (3). To do so, remove mounting rails (7) of seat backrest cover (3) at retaining clips (8) of seat backrest padding (5).
	Install
14	Cut seat backrest cover (3) for armrests.	Model 907.6/7 with code U74 (Wall side armrests) with code U75 (Aisle side armrests) When replacing the seat backrest cover (3). For this purpose use sutitable tool. To do so, take cuts for armrests from old seat backrest cover (3) and transfer to new seat backrest cover (3).
15	Attach seat backrest cover (3) to seat backrest padding (5).	When replacing the seat backrest padding (5) or the seat backrest cover (3). To do so, clip in mounting rails (7) of seat backrest cover (3) at retaining clips (8) of seat backrest padding (5). Ensure that the seat backrest cover (3) is correctly seated on the seat backrest padding (5). Check the retaining clips (8). If a retaining clip (8) is damaged. ↓ Replace seat backrest padding (5).
16	Install seat backrest padding (5) with seat backrest cover (3).	Ensure that the seat backrest cover (3) and the seat backrest padding (5) are correctly seated.
17	Attach seat backrest cover (3) to frame (4).
18	Attach mounting rails (1, 2).
19	Install passenger bench seat backrest shell.		AR91.21-D-0016TSK
20	Install trims of left seat belt guide.		AR91.40-D-1209TS
21	Install trims of center seat belt guide.	Model 907.6/7 with code UR9 (3-passenger bench seat, Comfort, 3rd row) Model 907.6/7 with code UY1 (3-passenger bench seat, Comfort, 1st row, narrow) Model 907.6/7 with code UY2 (3-passenger bench seat, Comfort, 2nd row, narrow) Model 907.6/7 with code UY4 (3-passenger bench seat, Comfort, 1st row) Model 907.6/7 with code UY5 (3-passenger bench seat, Comfort, 2nd row) Model 907.745 with code U3Y (3-passenger bench seat, Comfort, 3rd row, narrow)	AR91.40-D-1208TS
22	Install trims of right seat belt guide.		AR91.40-D-1207TS
23		Bolt, seat belt end fitting to seat frame for passenger bench seat	*BA91.40-N-1002-02TS
24	Install passenger bench seat armrest.	Model 907.6/7 with code U74 (Wall side armrests) with code U75 (Aisle side armrests)	AR91.21-D-3301TS
25	Install head restraint guides of passenger bench seat.		AR91.16-D-2805TS
26	Install passenger bench seat.		AR91.21-D-4425TS

SEAT BELT BUCKLE, SEAT BELT END FITTING, SEAT BELT

Fig 1: Long Wedge (115 589 03 59 00)

Fig 2: Extraction Hook (140 589 02 33 00)
