Remove/Install Side Supplemental Restraint System (SRS) Pressure Sensor - Ar91.60-D-0760TS
Model 907

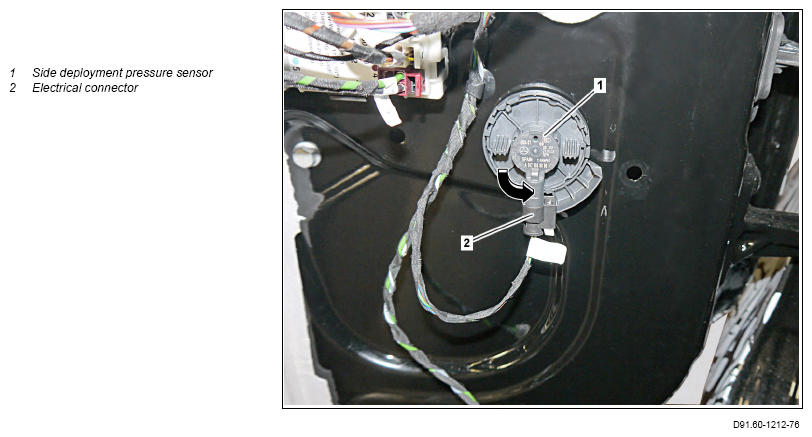

Shown on left front door
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Detach ground line of on-board electrical system battery. | AR54.10-D-0029TS | |
| 2 | Disconnect ground line of auxiliary battery. | Model 907 with code E2I (Auxiliary battery for retrofitted consumers, interior) |
AR54.10-D-0004TS |
| Model 907 with code E2M (Auxiliary battery for retrofit consumers, engine compartment) except code E2I (Auxiliary battery for retrofitted consumers, interior) |
AR54.10-D-0004TSR | ||
| 3 | Remove door trim from front door. | AR72.10-D-6575TS | |
| 4 | Release and disconnect electrical connector (2). | ||
| 5 | Release side deployment pressure sensor (1) counterclockwise (arrow) and remove from inner door panel. | ||
| 6 | Install in the reverse order. |
