Remove/Install Suspension Module - Ar91.10-D-0005TS

Model 907

with code SB3 (Suspension seat, comfort version, driver's seat)

Model 907

with code SB4 (Suspension seat, comfort version, co-driver's seat)

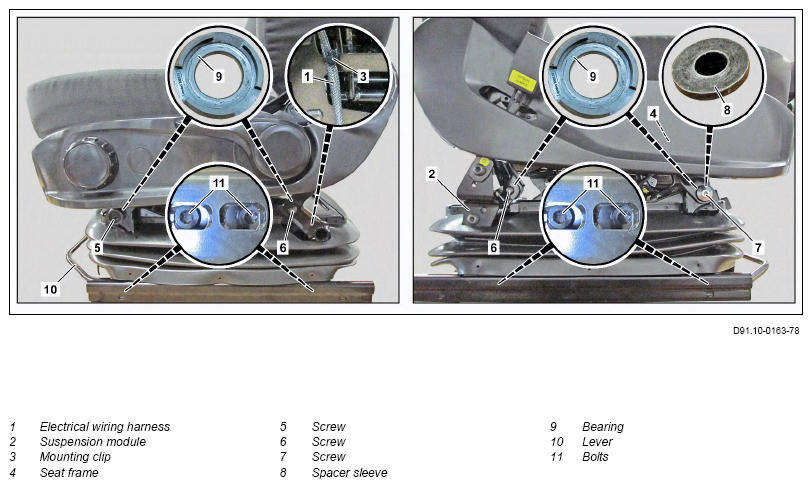

Shown with code SB3 (Comfort version suspension seat, driver's seat)

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Remove front seat.		AR91.10-D-1000TS
2	Remove front seat belt buckle.		AR91.40-D-1510TS
3	Remove electrical wiring harness (1) from suspension module (2).	If the retaining clip (3) is installed. For this, remove retaining clip (3) on lower side of suspension module (2). : Check retaining clip (3) for damage. If retaining clip (3) is damaged, replace retaining clip (3).
4	Remove suspension module (2) from seat frame base (4).
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		Observe position of spacer sleeve (8). To do this, remove screws (5, 6, 7). : Check bearings (9) for damage. Screw, suspension module to seat frame base If the bearings (9) are damaged. Replace bearings (9).	*BA91.10-N-1008-01TS
5	Remove suspension module (2).	To do so, operate lever (10) until the screws (11) are accessible. Then remove screws (11).
		Screw, seat frame base to suspension module	*BA91.10-N-1009-01TS
6	Install in the reverse order.
	Check
7	Carry out function check of suspension module (2).
