Removing, Installing WINDOWBAG - Ar91.60-D-0693TS
Model 907
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Detach ground line of on-board electrical system battery. | AR54.10-D-0029TS | |
| 2 | Detach ground line from additional battery. | Model 907 with code E2M (Auxiliary battery for retrofitted consumers, engine compartment) | AR54.10-D-0004TSR |
| Model 907 with code E2I (Auxiliary battery for retrofitted consumers, interior) |
AR54.10-D-0004TS | ||
| 3 | Remove corresponding A-pillar trim. | AR68.30-D-4051TS | |
| 4 | Release corresponding B-pillar trim (3) in the upper area. | Remove/install B-pillar trim on driver's side Model 907.2/7 | AR68.30-D-4707TS |
| Remove/install B-pillar trim on front passenger sideModel 907.2/7 | AR68.30-D-4706TS | ||
| Remove/install B-pillar trim Model 907.1/6 | AR68.30-D-4705TS | ||
| 5 | Remove stowage box/tray over windshield. | AR68.30-D-5577TS | |

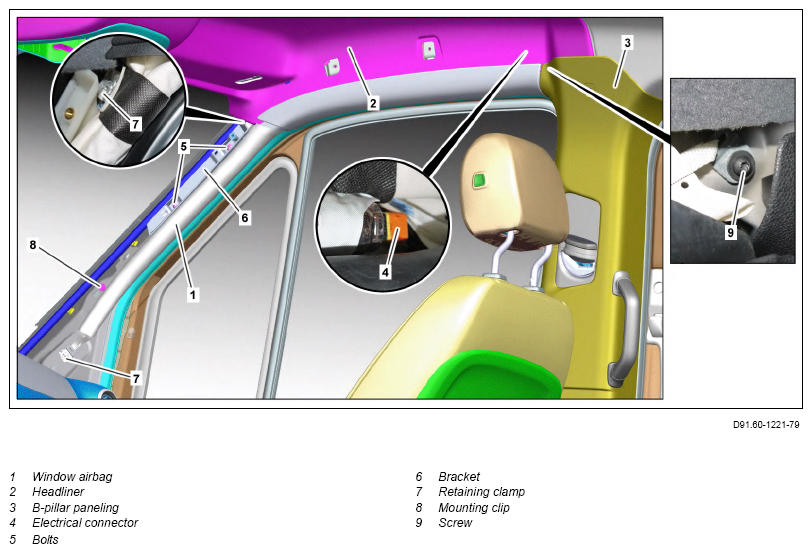

| 6 | Pull out window airbag (1) under roof lining (2) and B-pillar trim (3) until the electrical connector (4) is accessible. | ||
| 7 | Release and disconnect electrical connector (4). | ||
| 8 | Remove screws (5) and remove holder (6). | ||

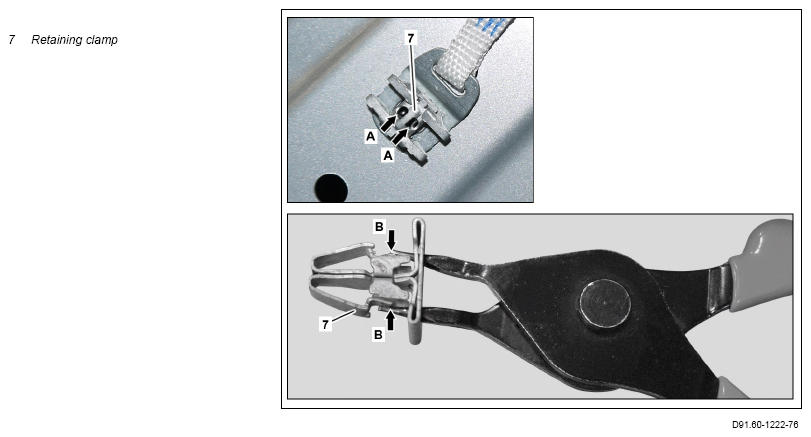

| 9 | Push shackles (arrows B) together with suitable pliers through the openings (arrows A) and remove retaining clamps (7) from the A-pillar. | ||
| 10 | Unclip retaining clip (8). | Fig 1 | |
| 11 | Remove screw (9) and remove window airbag (1). | *BA91.60-D-1004-01TS | |
| 12 | Install in the reverse order. |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA91.60-D-1004-01TS | Screw, window airbag check strap to body | Nm | 7 |
