Disassemble/Assemble Front Bumper - Ar88.20-D-2050TS
Model 907
Shown with code L13 (Front fog lamp with cornering light) and with code JB6 (Parking Package with 360° camera)
Shown with code L13 (Front fog lamp with cornering light) and with code JB6 (Parking Package with 360° camera)
Shown with code L13 (Front fog lamp with cornering light) and with code JB6 (Parking Package with 360° camera)
| Disassemble/assemble | |||

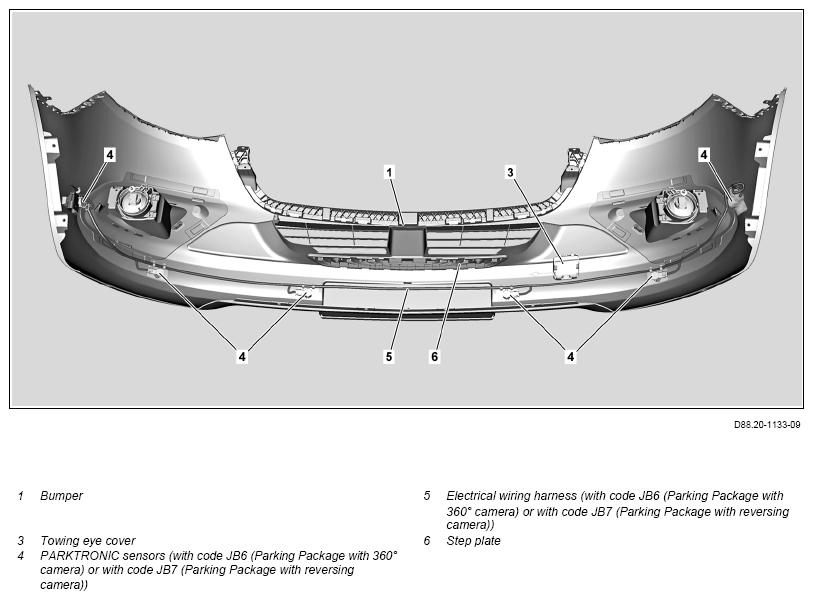

| 1 | Remove bumper (1) | Set down bumper (1) on a suitable base. This prevents damage to bumper (1). |
AR88.20-D-2000TS |
| 2 | Remove license plate number | ||
| 3 | Remove towing eye cover (3) | ||
| 4 | Remove front PARKTRONIC sensors (4) | Model 907 with code JB6 (Parking package with 360-degree camera) Model 907 with code JB7 (Parking Package with reversing camera) |
AR54.65-D-0026TS |
| 5 | Remove electric wiring harness (5) | Model 907 with code JB6 (Parking package with 360-degree camera) Model 907 with code JB7 (Parking Package with reversing camera) Ensure electrical wiring harness (5) is routed correctly. This prevents damage to electrical wiring harness (5). |
|

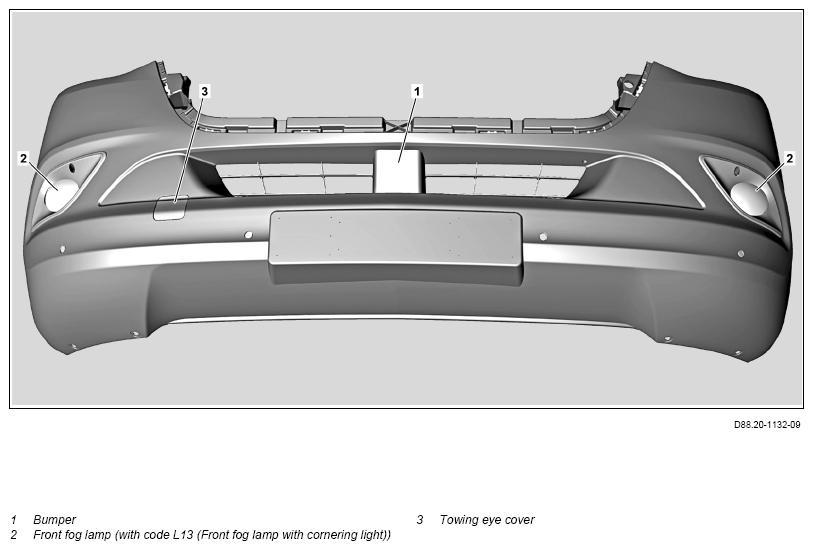

| 6 | Remove both front fog lamps (2) | Model 907 with code L13 (Fog lamp with cornering light function) |
AR82.10-D-1835TS |
| 7 | Remove step plate (6) at bumper (1) | ||

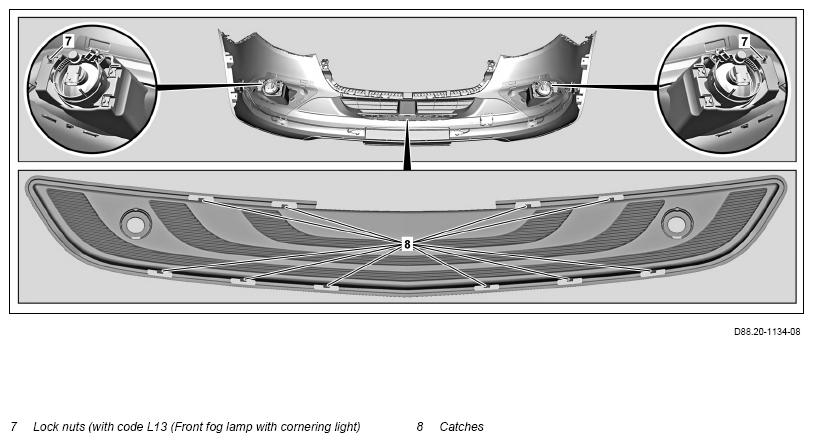

| 8 | Remove lock nuts (7) | Model 907 with code L13 (Fog lamp with cornering light function) |
|
| 9 | Assemble in the reverse order |
